Yanmar

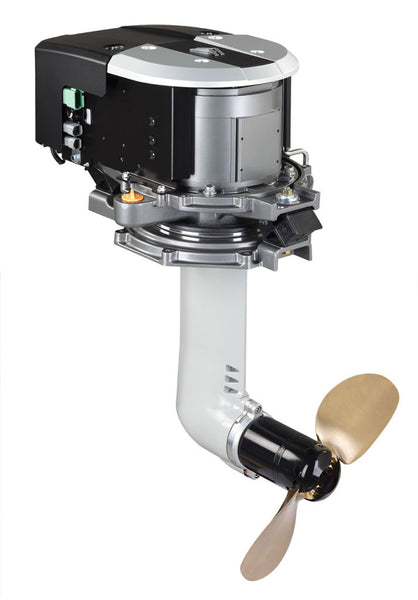

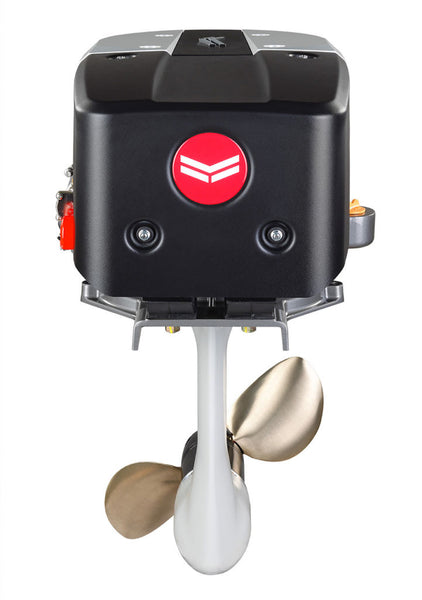

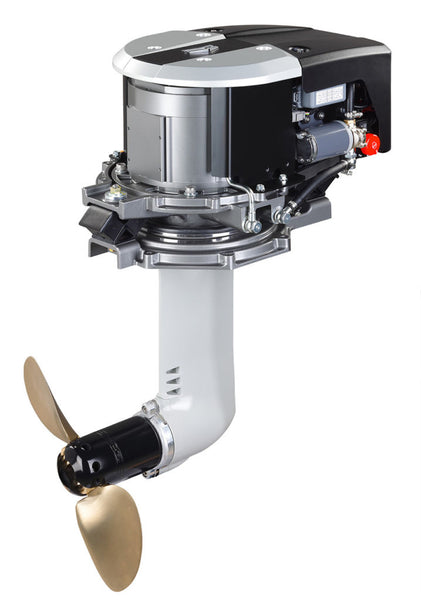

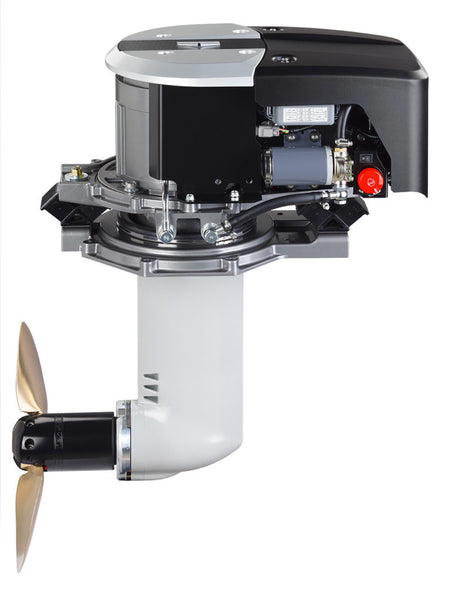

YANMAR SDe7 7kw Electric Saildrive

SKU: SDe7
(0)
Call for pricing

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

    Embark on a sustainable journey with YANMAR’s new 48V Electric Saildrive series, featuring robust innovative technology and a unique integrated cooling system. Silent, low maintenance and fully sustainable.

    YANMAR’s first E-Saildrive offers a new chapter in sustainable water leisure, backed by marine experience.

    SIMPLE INSTALLATION

    • All-in-one solution including saildrive, gear, motor, motor
    • controller, and cooling system.
    • 48V Plug-and-play integration.
    • No hull modification needed - effortlessly integrates into the current standard YANMAR platform.
    • Suitable for day sailors, catamarans or cruisers up to 40 foot (depending on displacement).
    • Perfect for re-powering YANMAR YM engines.

    INTEGRATED COOLING SYSTEM

    • Our in-house designed cooling system is fully integrated within the saildrive and functions as a single compact solution. This unique feature ensures optimal performance and longevity

    Specifications

    Rated output 7 kw / 9.5 mhp
    Rated Speed 2700 rpm
    Type SailDrive
    Max Speed 2900 rpm
    Max Speed (Reverse Boost) 3300 rpm
    Rating S2-60
    Gear Ratio 2.13
    Dry Weight 68.7 kg
    Dimensions (mm) 758 x 636 x 424
    Nominal Voltage 48 VDC
    Battery Technology Lithium-ion LiFePO4



    NOTE:
    7 kW @2700 rpm*
    Note: Battery and propeller are not included in standard delivery
    S2-60 = Minimum 60 minutes at full rated output,
    at sea water temperature 30 degrees C,
    ambient air temperature 50 degrees C




    Standard Engine Package Includes

    • Battery cable connectors
    • Display
    • Control head (side mount or top mount)
    • Switch panel
    • Backup panel
    • Harnesses [3m, 5m, 10m, 20m]
    • Terminator
