Wichard Self-Locking Bow Shackle - Diameter 5mm - 3/16" [1242W]

SKU: 93103
(0)
$19.45
-15% $22.88 $19.45
Only 2 left
Low inventory - Hurry up!

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

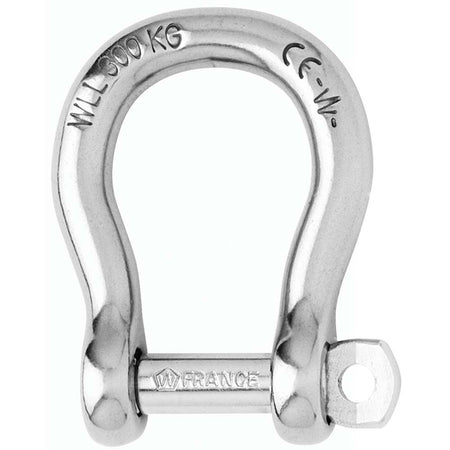

Self-Locking Bow Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 880
  • WLL (lb) 440
  • Breaking load (lb) 2200
  • Weight (lb) 0.037

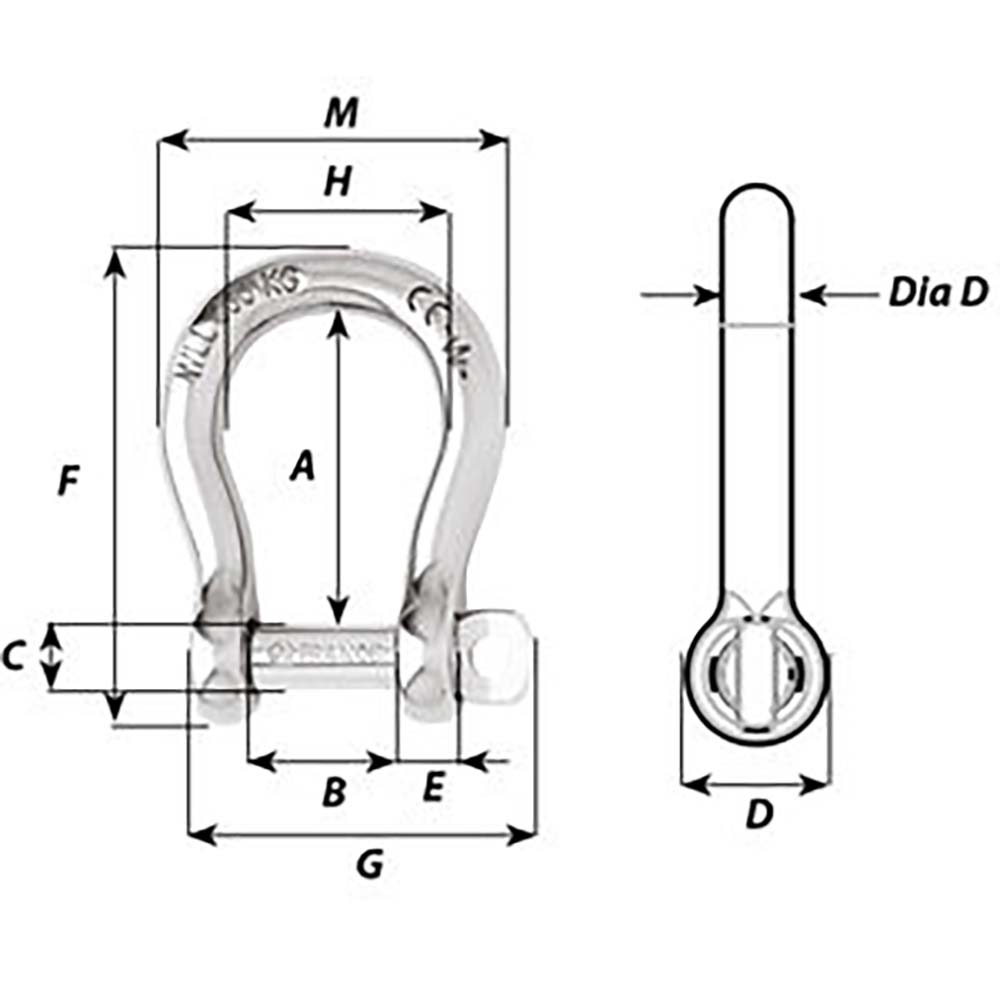

Dimensions (see 2nd image):

  • A (inch) 29/32"
  • B (inch) 25/64"
  • C (inch) 13/64"
  • D (inch) 25/64"
  • D diameter (inch) 13/64"
  • E (inch) 5/32"
  • M (inch) 63/64"
