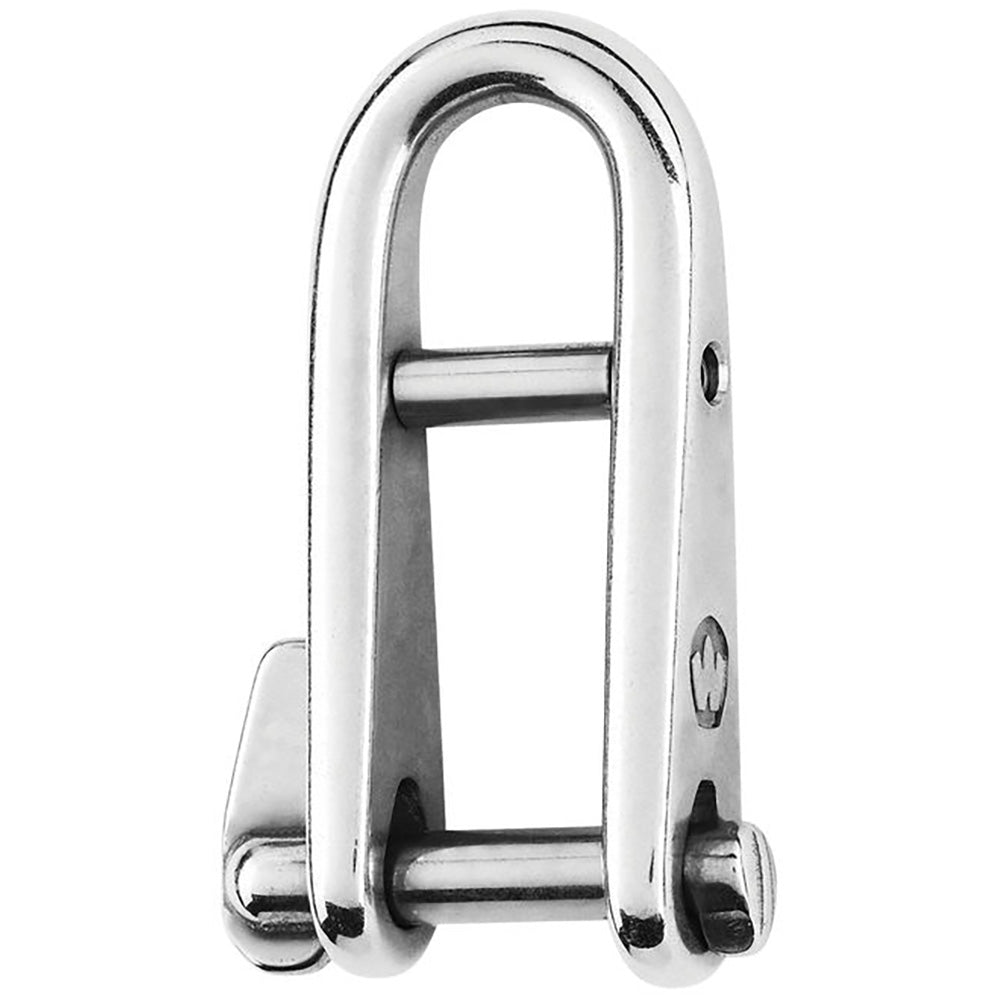

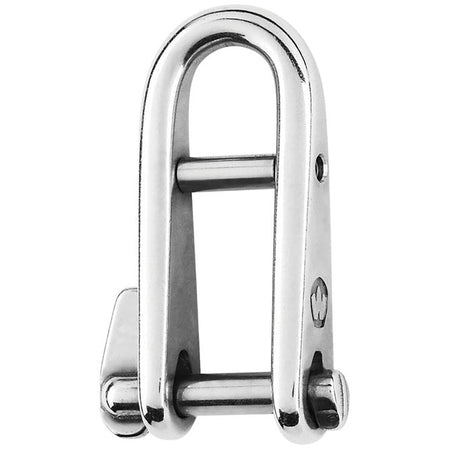

Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter [91434W]

HR Key Pin Shackle With Bar - 8mm Pin Diameter

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• Perfect product for halyards or applications requiring to opening/closing the shackle often
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• Breaking load: (lb) 7710 / (kg) 3500
• Weight: (lb) 0.271 / (g) 123

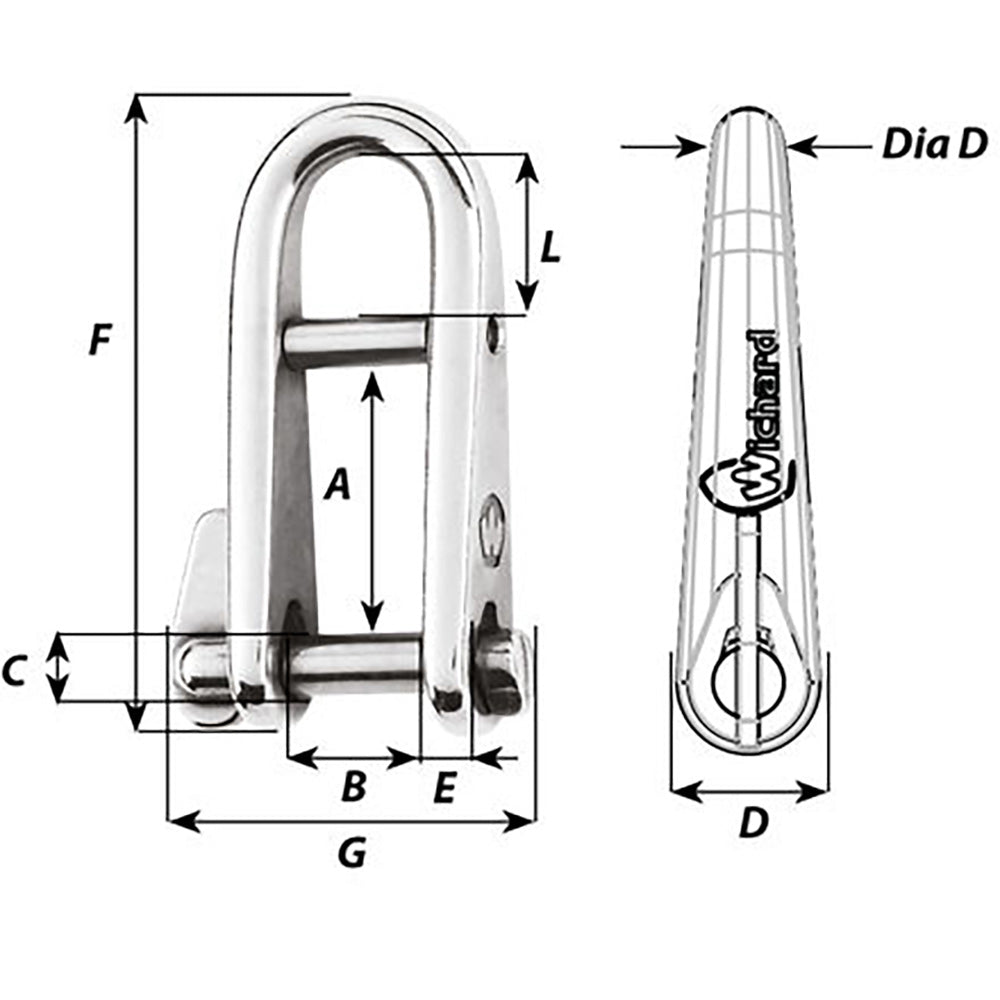

Dimensions:

• A: (inch) 2 21/64" / (mm) 59
• B: (inch) 53/64" / (mm) 21
• C: (inch) 5/16" / (mm) 8
• D: (inch) 43/64" / (mm) 17
• E: (inch) 15/64" / (mm) 6
• F: (inch) 3 7/64" / (mm) 79
• G: (inch) 1 57/64" / (mm) 48
• L: (inch) 25/32" / (mm) 20

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
