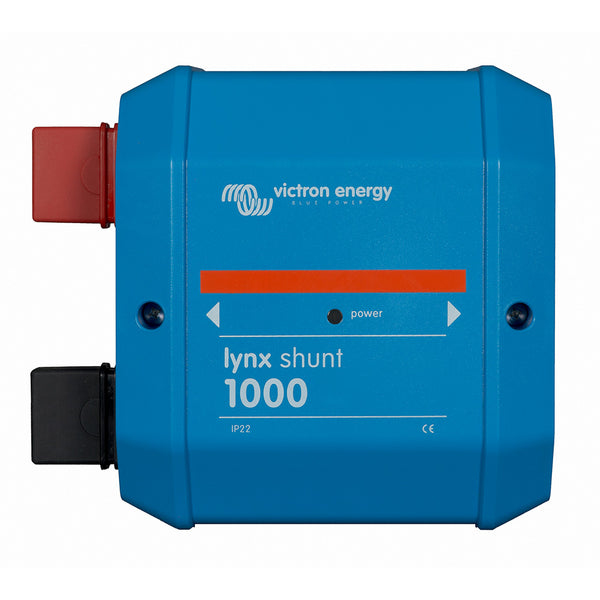

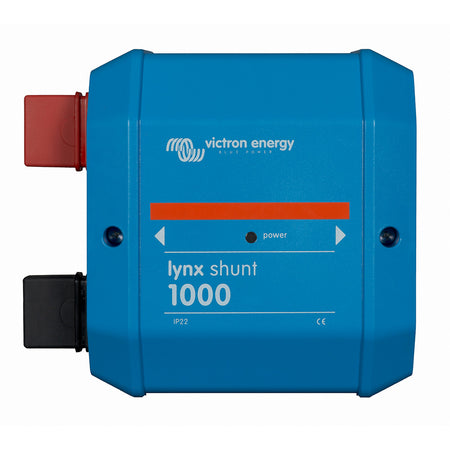

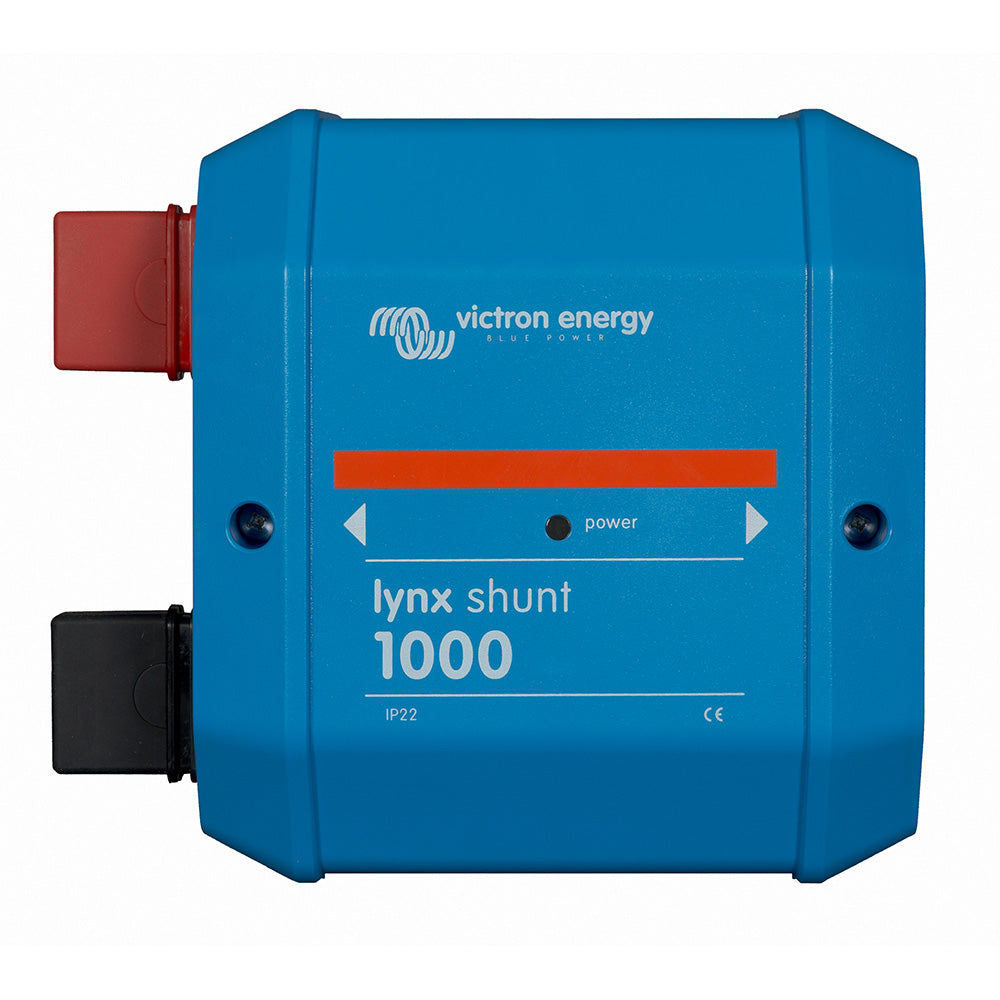

Lynx Shunt VE.Can (M10)

Busbar Integrated Battery Monitoring

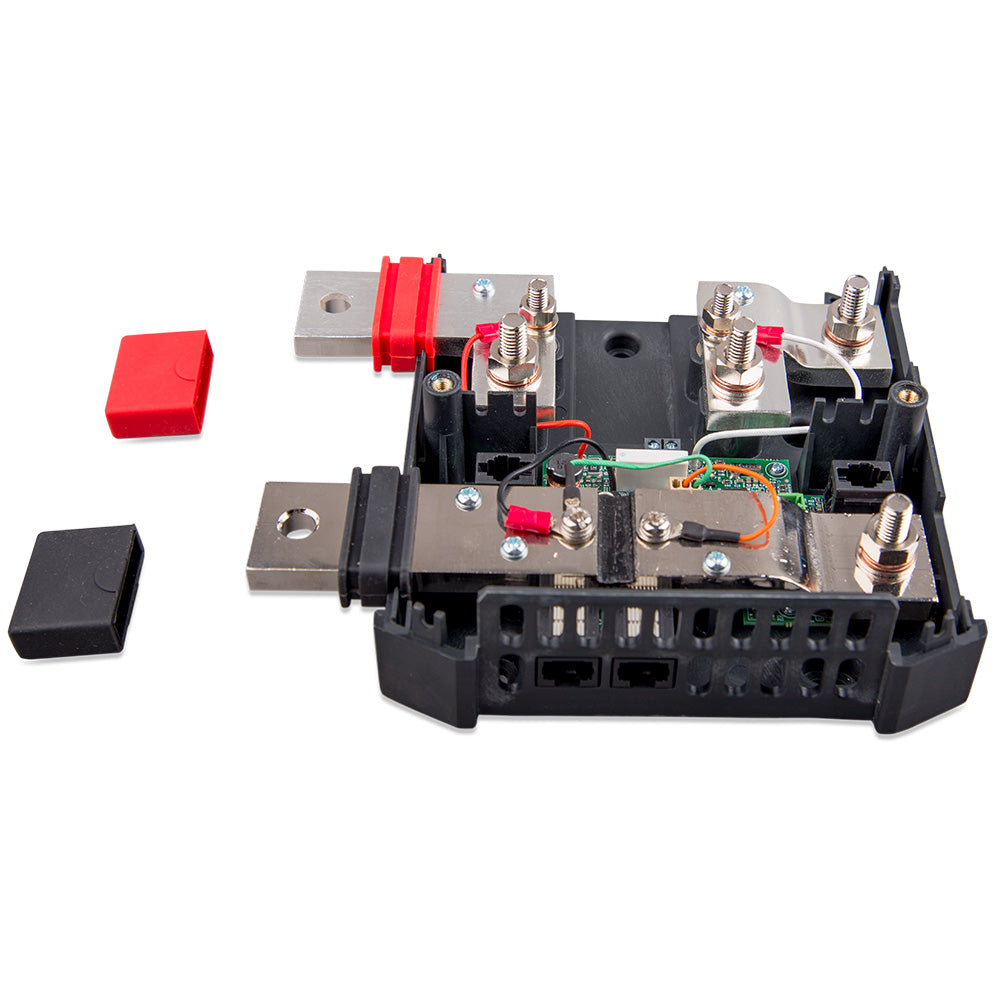

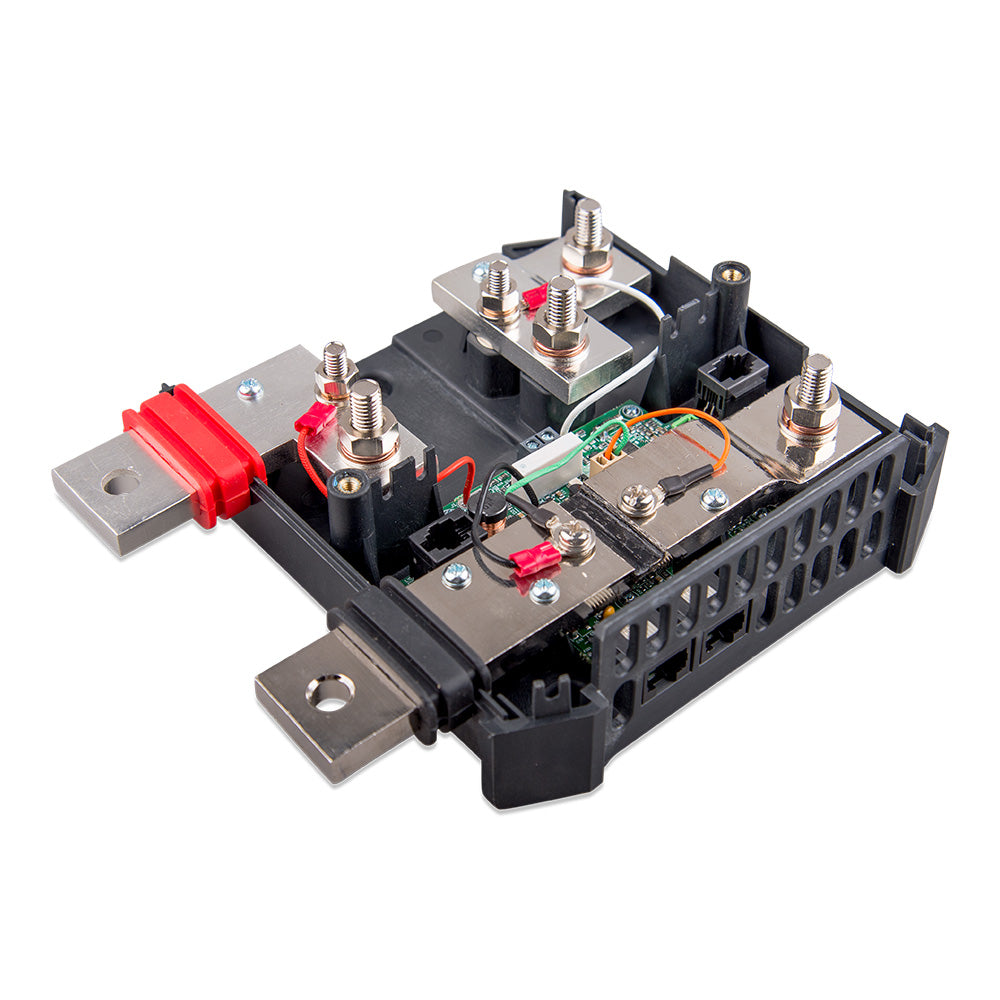

The Lynx Shunt VE.Can contain a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device.

The Lynx Shunt VE.Can ship with two RJ45 VE.Can terminators, be used when connecting to a GX device.

The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system incorporating DC connections, distribution, fusing, battery monitoring, and Lithium battery management.

The Lynx Distribution System Consists of the Following Parts:

  • Lynx Power In - A positive and negative busbar with 4 batteries or DC equipment connections.
  • Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring
  • Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device
  • Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal

Specifications:

Power:

  • Supply Voltage Range: 9 - 70 Vdc
  • Supported System Voltages: 12, 24 or 48V
  • Reverse Polarity Protection: No
  • Current Rating: 1000Adc continuous
  • Power Consumption: 60mA @ 12V, 33mA @ 24V, 20mA @ 48V
  • Potential Free Alarm Contact 3A, 30Vdc, 250Vac

Connections:

  • Busbar: M8
  • Fuse: M8
  • VE.Can: RJ45 and RJ45 terminator
  • Power Supply Connection to Lynx Distributor: RJ10 (an RJ10 cable ships with each Lynx Distributor)
  • Temperature Sensor: Screw terminal
  • Relay: Screw terminal

Physical:

  • Enclosure Material: ABS
  • Enclosure Dimensions (H x W x D): 190 x 180 x 80 mm
  • Unit Weight: 1.4 kg
  • Busbar Material: Tinned copper
  • Busbar Dimensions (H x W): 8 x 30 mm

Environmental

  • Operating Temperature Range: -40°C to +60°
  • Storage Temperature Range: -40°C to +60°
  • Humidity: Max. 95% (non-condensing)
  • Protection Class: IP22
Please contact your dealer for any returns, repairs or support issues related to this product.
Quick Guide (pdf)
Owner's Manual (pdf)
