Veratron Deep-Pipe Level Sender - 500mm - 240 to 33 OHM [A2C1747250001]

SKU: 82759
(0)
$96.57
-10% $107.30 $96.57
Out of stock

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

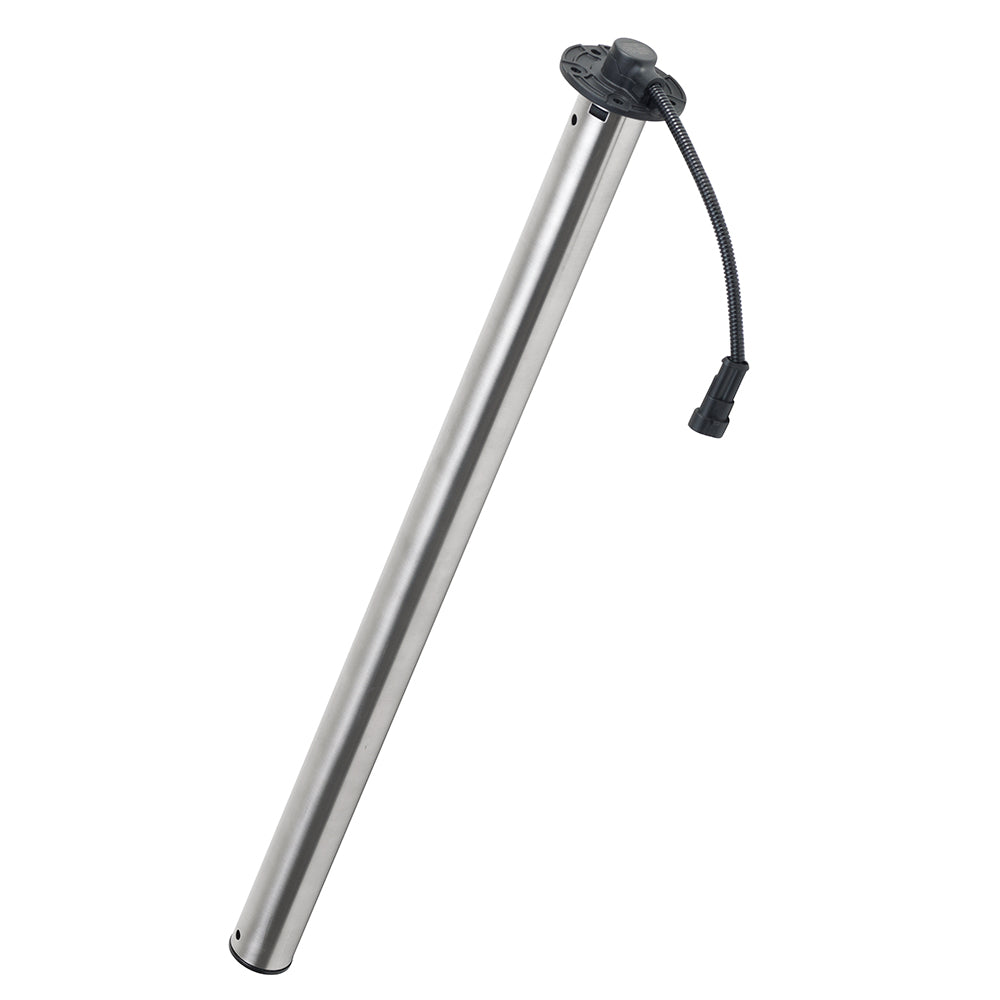

Deep-Pipe Level Sender - 500mm - 240 to 33 OHM

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm – please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

  • Tubular Sensor Stainless Steel
  • Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water
  • Length: 500 mm

Technical Specifications:

  • TE Superseal Connector 2-Pole IP67
  • Operating Temp.: -25°C to 65°C or -13°F to 149°F
  • Operating Voltage: 6 to 24 VDC
  • Compensation chamber
  • Flange: 5-Hole SAE Flange 54mm PA66 GF30
  • Wiring harness with length of 200 mm
  • Signal ranges: 240 to 33 OHM
  • IP67 protection rating
  • Communication: Analog

In the Box:

  • Deep-Pipe Level Sensor
  • Installation Kit
  • Safety Instructions
  • Installation Instructions

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Color: Silver
  • Box Dimensions: 4"H x 4"W x 30"L WT: 2 lbs
  • UPC: 7640178726130
