Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - J1939 [B00127801]

SKU: 107275
(0)
$150.57
-10% $167.30 $150.57
Only 3 left
Low inventory - Hurry up!
Ask an expert!

Not sure it fits? Send us your part number and we'll check. Call 310‑726‑3339 or email us.

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

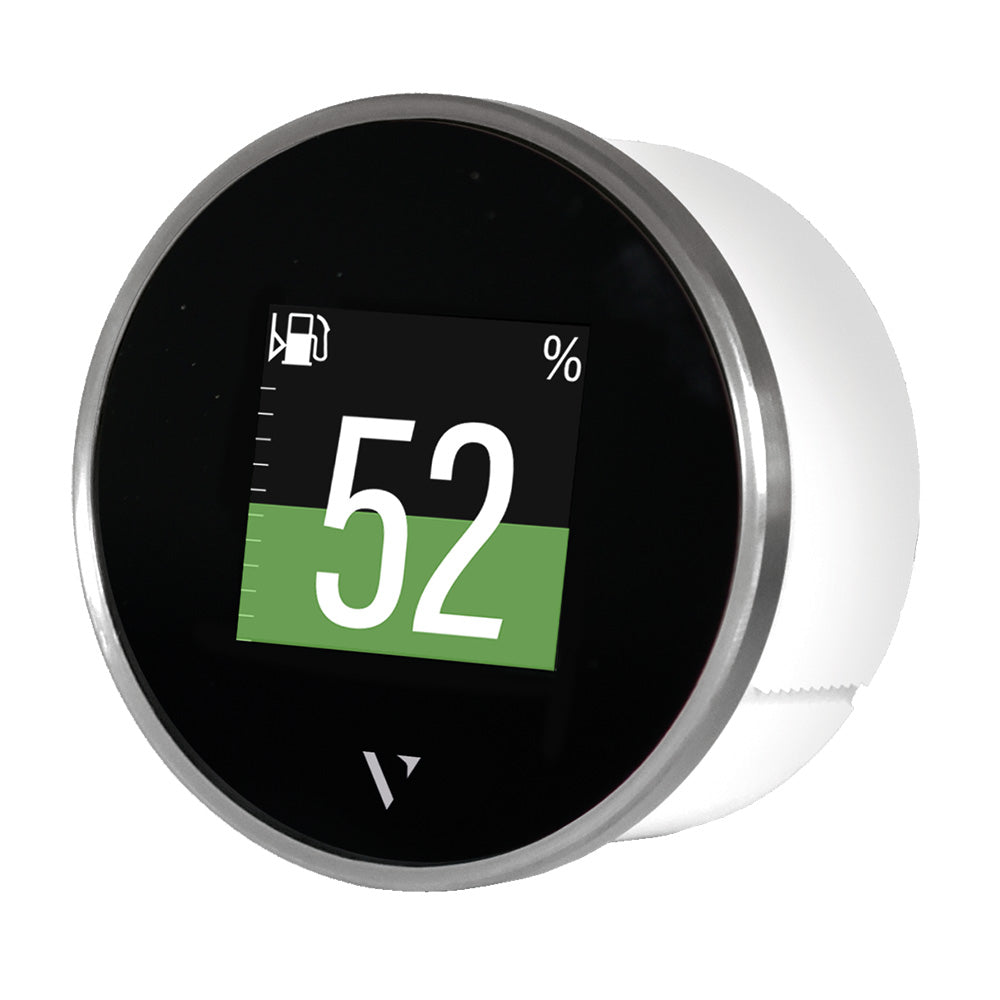

52mm (2-1/16") VMH Flex Multifunction Gauge - J1939

Small but powerful, the VMH Flex is the perfect com­­­pro­mise to display a large amount of boat data in a compact device. No matter if you are wearing gloves or if it is raining on your deck, the innovative laser touch button allows you to scroll up to 5 different screens. Every screen can be freely customized with your most important information, and the setup – including alarms – is easily done with your smartphone just with a tap.

Features:

  • Up to 5 scrollable screens in single or dual layout
  • Functions - Rudder, Trim, Speed, Engine revolution, Engine hours, Fuel level, Fresh water level, Wastewater level, Coolant temperature, Oil temperature, Engine oil pressure, Transmission oil pressure, Boost pressure, Depth, Clock, Compass, Battery
  • Innovative laser touch-button reliable in every practical condition
  • SAE J1939 connectivity
  • 2x analog resistive inputs for direct sensor connections
  • LIN port for Intelligent Battery Sensor

Technical Specifications:

  • Nominal Voltage - 12/24V
  • Operating Voltage - 9-32V
  • Protection Class - IPX7
  • Dimensions - 60mm (outer), 52mm (mounting hole)
  • Display - 1.44" sun-readable color TFT display
  • Resolution - 125 x 125 pixels
  • Analog Inputs - 1x resistive, 1x frequency
  • Connectors - Tyco / Hirschmann MQS connector 8-pin
  • Digital Ports - J1939, LIN bus
  • Wireless Interface - NFC

In the Box:

  • 1x VMH Flex – J1939
  • 1x 52 mm Spinlock Nut
  • 1x Rubber Sealing Gasket
  • 1x Wiring Harness – J1939
  • 1x Safety Instructions and Veratron Card

Owner's Manual (pdf)
