Home » Boat Outfitting » Veratron 52mm (2-1/16") ViewLine Flex Gauge - J1939 - White [B00110901]

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Veratron

Veratron 52mm (2-1/16") ViewLine Flex Gauge - J1939 - White [B00110901]

SKU: 96706
(0)
$134.19
-10% $149.10 $134.19
Only 4 left
Low inventory - Hurry up!

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

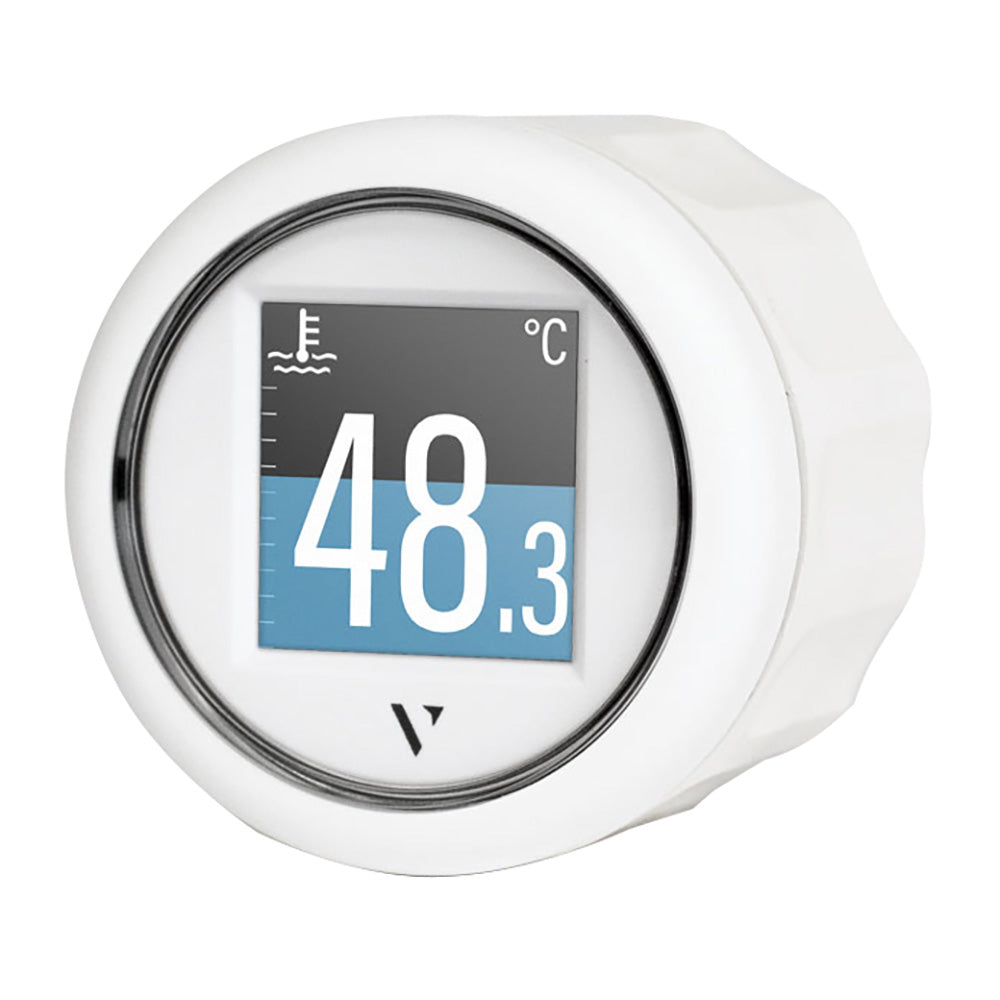

52mm (2-1/16") ViewLine Flex Gauge - J1939 - White

Veratron's VL Flex 52 - J1939 was designed to meet the rigorous demands of commercial use. Supporting a broad range of sensors, the all-in-one round gauge is singularly unique in that it can display two sets of diesel engine data simultaneously and is easily configured using a mobile device and the companion Veratron app.

The VL Flex 52 - J1939 supports input from analog sensors as well as J1939 and LIN 2.0. The simple but effective graphic design can be set up in a single or dual layout, pulling from up to 30 sets of data. It can display a large numerical value and colored bar graph that are viewable in any light condition due to its sun-readable PMMA lens with anti-glare.

*VL Flex Configurator App (Android or iOS)  has to be downloaded - no charge

Supported Configurations:

  • Wheel Speed - Engine Load - Fuel Level - Oil Level - Oil Pressure - Boost Pressure - Coolant Pressure
  • Coolant Temp - Battery Current - Brake Pressure - Gear Oil Level - Gear Oil Pressure - Battery Potential
  • Air Temperature - Exhaust Temperature - Oil Temperature - Gear Oil Temperature - Fuel Rate
  • Fuel Economy - Engine Speed - Odometer - Engine Hours - Total Fuel - Clock - DEF/BLUE Level
  • Battery SOC/SOH - Battery Temperature - Battery Autonomy

Features:

  • 1.44” sun-readable color TFT display
  • J1939 Interface
  • Front lens with anti-glare and anti-fog treatments
  • 52mm (2-1/16") mounting diameter

In the Box:

  • VL Flex J1939
  • 52mm Mounting SpinLock
  • 8 Pole Cable
  • Safety Instructions

*Sold as an individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Box Set: No
  • Gauge Size: 2-1/16"
  • Gauge Type: Multifunction
  • Series: ViewLine
  • Voltage - Input Range (Volts): 12/24v
  • Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs
  • UPC: 7640190290008

Owner's Manual (pdf)
Brochure (pdf)
