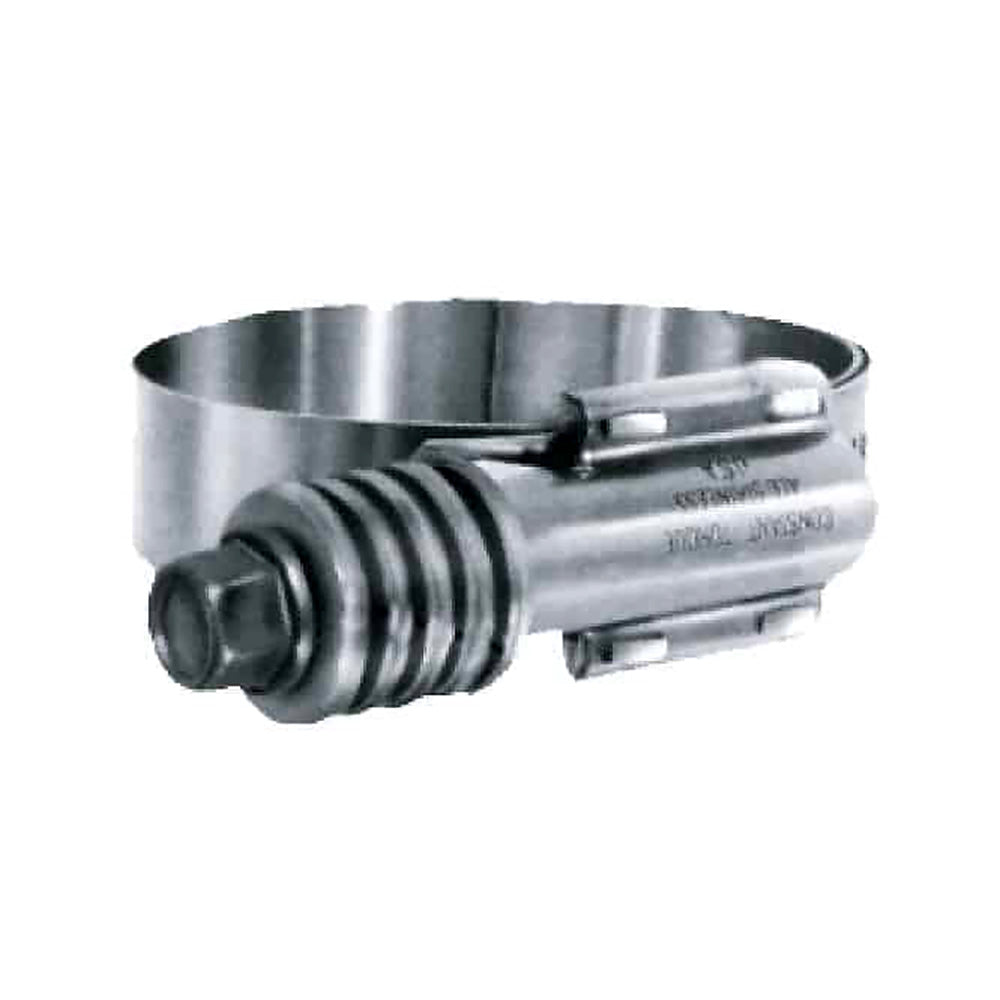

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4-1/8" to 4-1/2", Hose O.D. - 4.75" to 5.625" [730-4120]

Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4-1/8" to 4-1/2", Hose O.D. - 4.75" to 5.625"

Virtually all rubber hose compresses (cold flow) after installation of clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.

Specifications:

• Hose I.D. - 4-1/8" to 4-1/2", Hose O.D. - 4.75" to 5.625"
• Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs

Construction:

• Band & Housing: 304 Stainless Steel 5/8” Wide Band
• Bellville Spring Washers & Screw: 401 Stainless Steel

Most in stock items ship within 1 business day.

For engine parts showin "IN STOCK" as well as "On backorder" this means they are available for transfer from the listed warehouses in Miami (3-5 Day Lead) or Spain (2-3 Week Lead).

We advise you get in touch

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
