Shakespeare

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna [5239]

SKU: 55773
(0)
$200.99
-18% $244.99 $200.99
Only 3 left
Low inventory - Hurry up!
Ask an expert!

Not sure it fits? Send us your part number and we'll check. Call 310‑726‑3339 or email us.

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

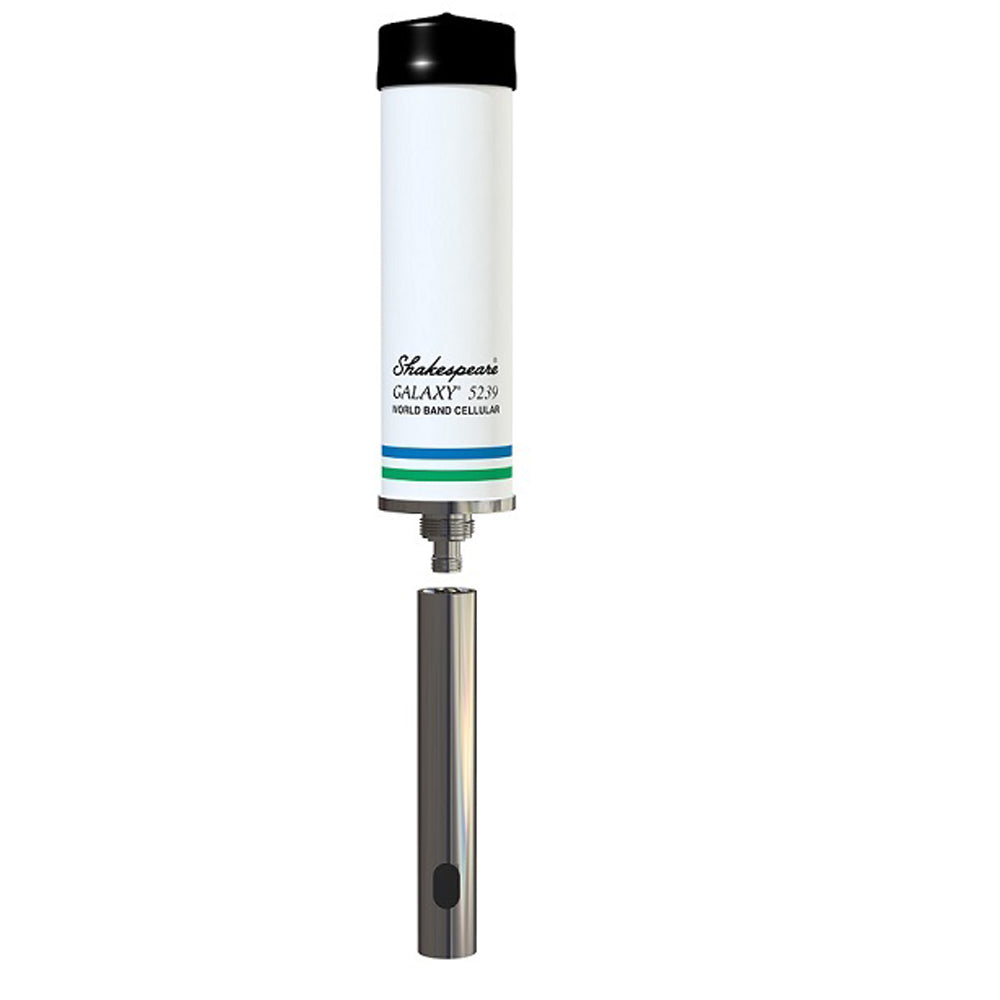

Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

  • Full Band (698 - 2700 MHz) Broadband
  • 2G/3G/4G and WLAN systems
  • Wi-Fi 802.11n compatible
  • Designed for marine use
  • Omni-directional antenna 3-4 dB Gain.
  • Easy to install
  • Includes FME Cables

Specifications:

  • Frequency: 698-960/1700-2700 MHz
  • Input Impedence: 50 ohm
  • Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
  • VSWR: ≤ 1.8
  • Power Rating (W): 10
  • Polarization Type: Vertical
  • Radiation: Omni-Directional
  • Maximum Power (W): 100
  • Connector Type: N-female
  • Dimension: 9.25" H x 2.625" D
  • Color: White
  • Operating Temperature (F): -22 to +176
  • Mounting: 1" x 14 Thread Mount
  • Ground Plane: Internal
  • Material: Fiberglass

Specifications:

  • Length (Inches): 9.25"
  • Construction: Fiberglass
  • Color: White
  • Box Dimensions: 4"H x 4"W x 10"L WT: 1.8 lbs
  • UPC: 719441900960
