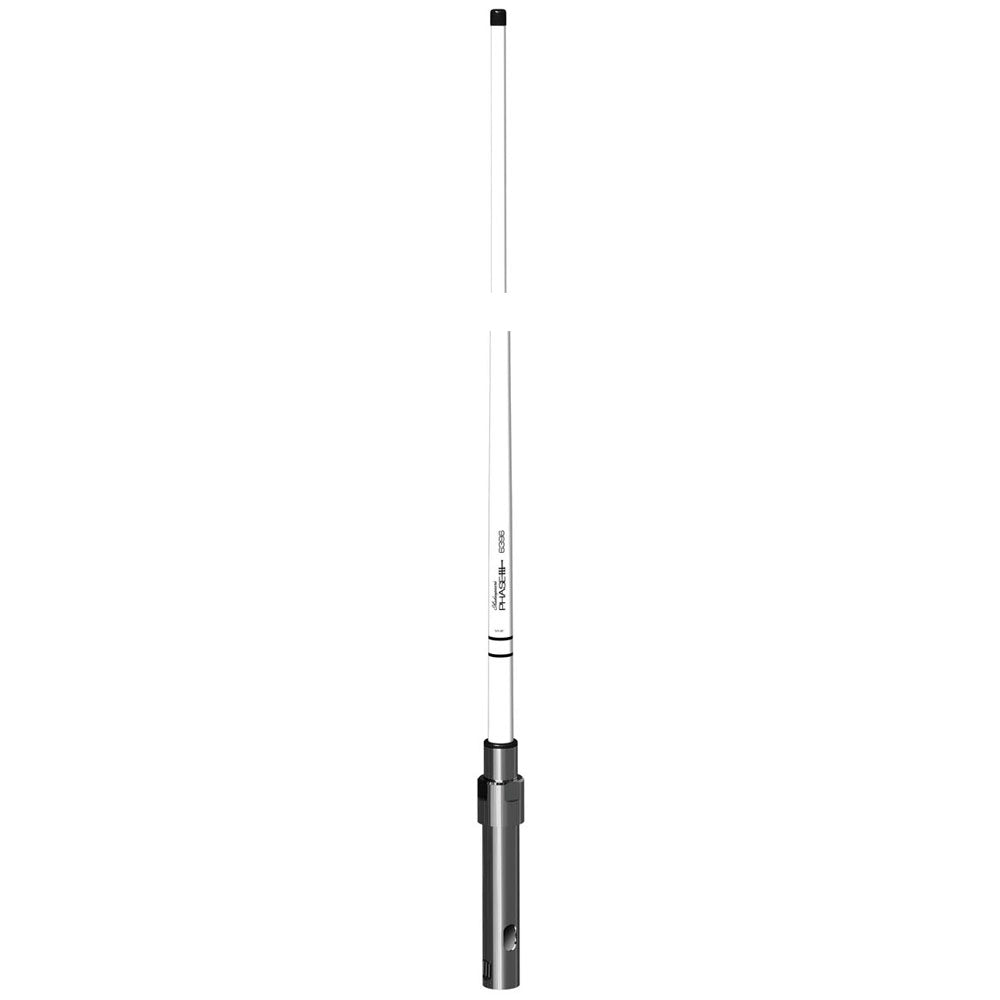

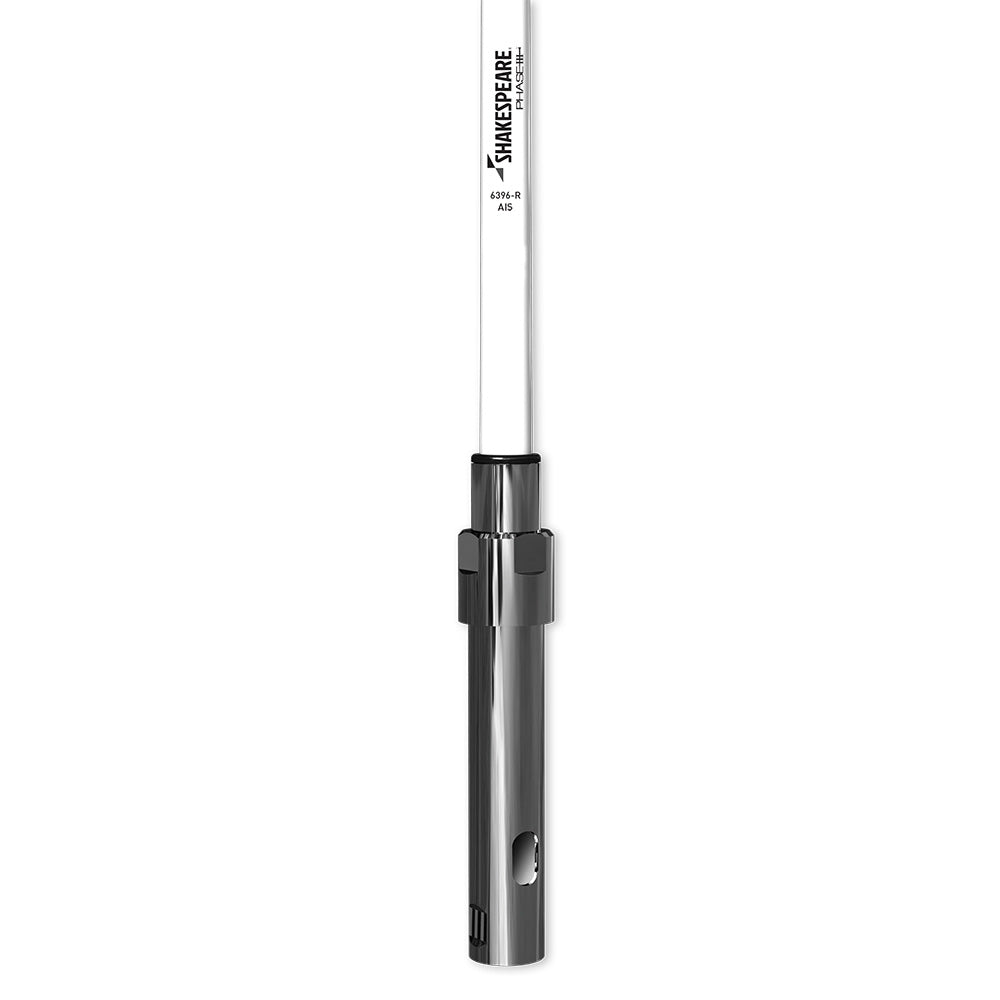

Shakespeare AIS 4ft Phase III Antenna [6396-AIS-R]

PHASE III 6396-AIS-R 4' AIS Antenna 3dB Gain

Specially engineered for the extra bandwidth required by AIS transceivers, this Phase IIIT antenna enables reliable communication over marine VHF frequencies.

• Silver-plated outer conductor, copper inner conductor

• Stainless steel mounting sleeve

• SO-239/PL-259 connector

• Max. Power Input: 50 watts

• SWR: Less than 1.5:1 at 162 MHz

• Bandwidth: 5 MHz within 2.0:1 VSWR

• Frequency: VHF AIS Marine Band

• DC Grounding: Yes

• Pattern: Omnidirectional

• Polarization: Vertical

Specifications:

• Length (Inches): 48"
• Construction: Fiberglass
• Color: White
• Antenna Band: AIS
• Box Dimensions: 2"H x 2"W x 58"L WT: 2 lbs
• UPC: 719441200688
