Shakespeare Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain [5226-XT]

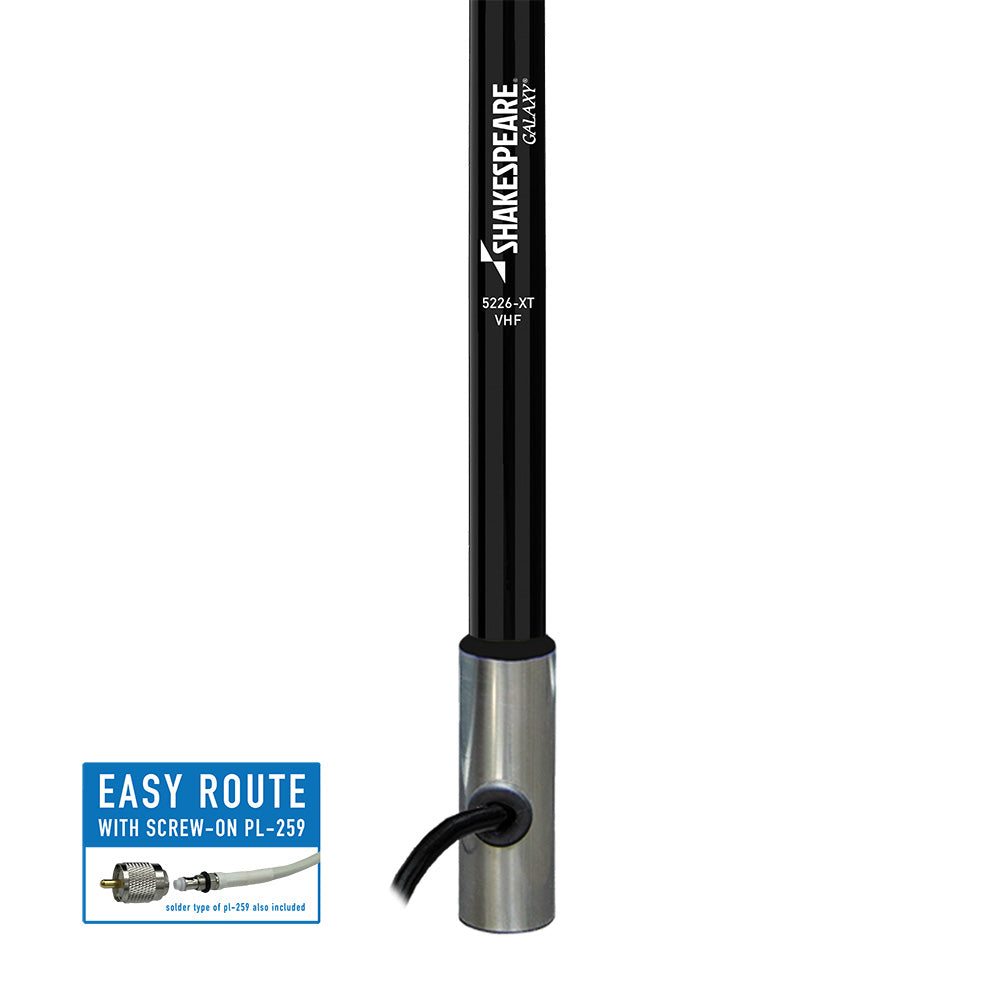

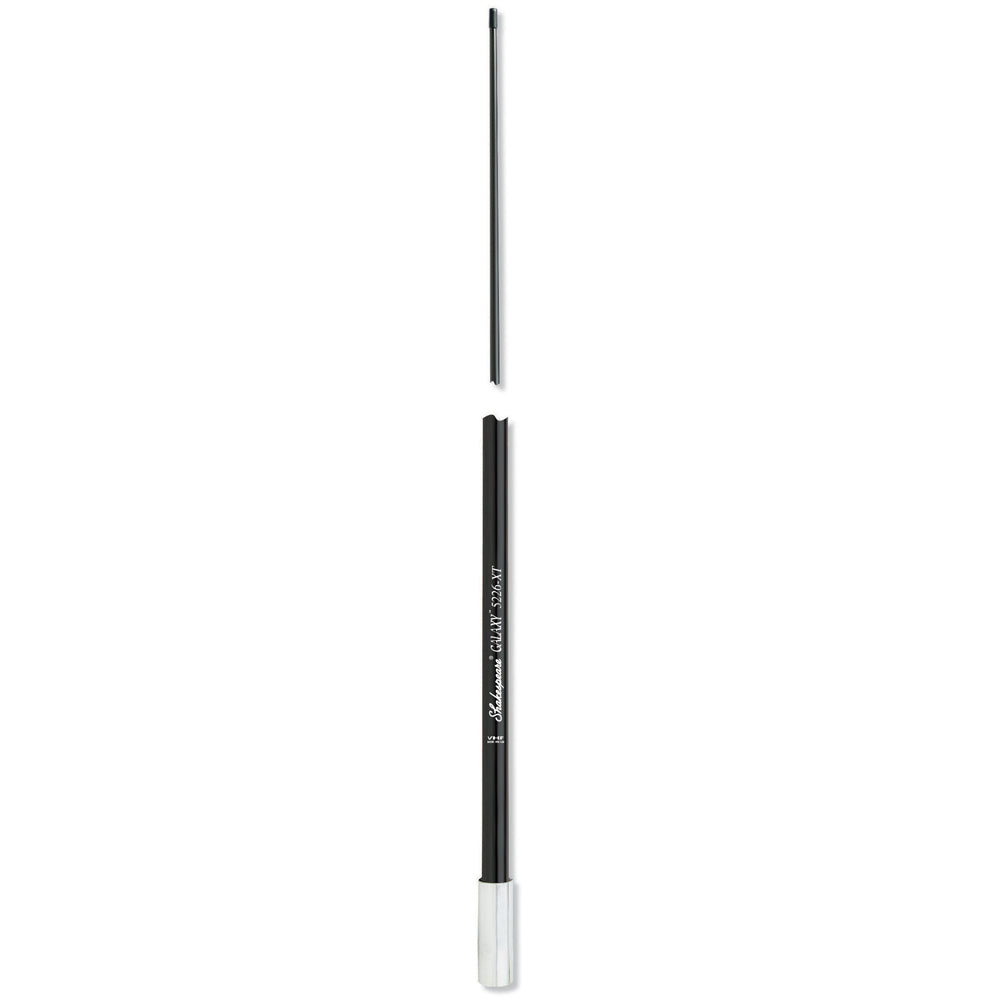

Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain

EXTRA TOUGH!

This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

• Collinear-phased 5/8 wave elements
• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1"-14 thread
• 20' RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 3 MHz within 2.0:1 VSWR
• SWR: Mominally 1.5:1 at 156.8 MHz
• Impedance: 50 ohms
• Gain: 6 dB
• Max Input (Watts): 100 watts
• DC Ground: YES
• Height (feet): 8
• Polarization: Vertical

Specifications:

• Antenna Band: VHF
• Color: Black
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 96"
• Box Dimensions: 2"H x 2"W x 95"L WT: 2.4 lbs
• UPC: 719441200237
