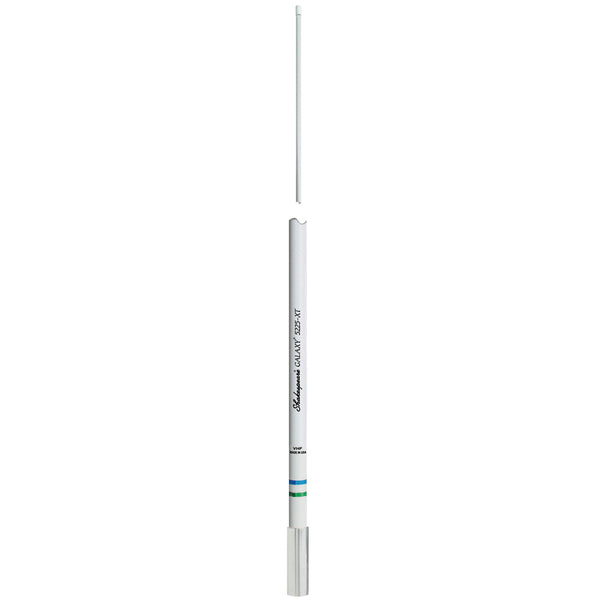

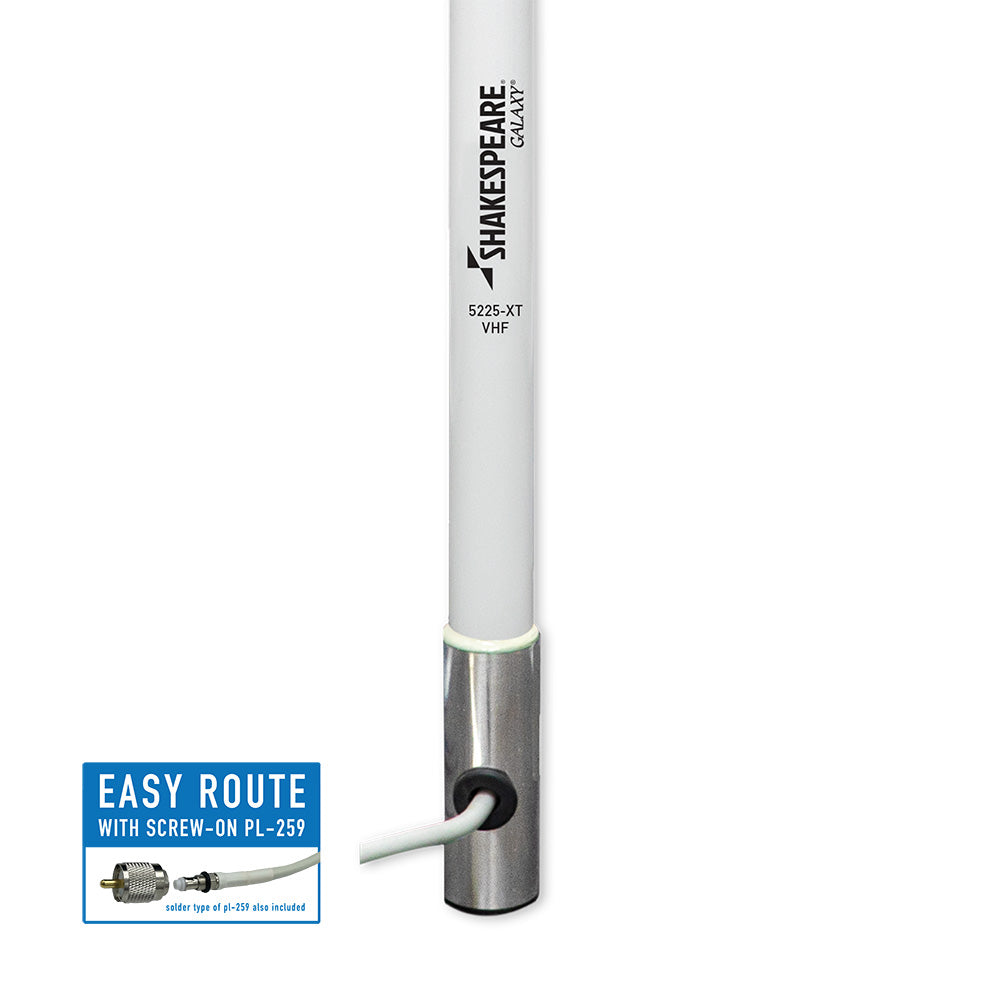

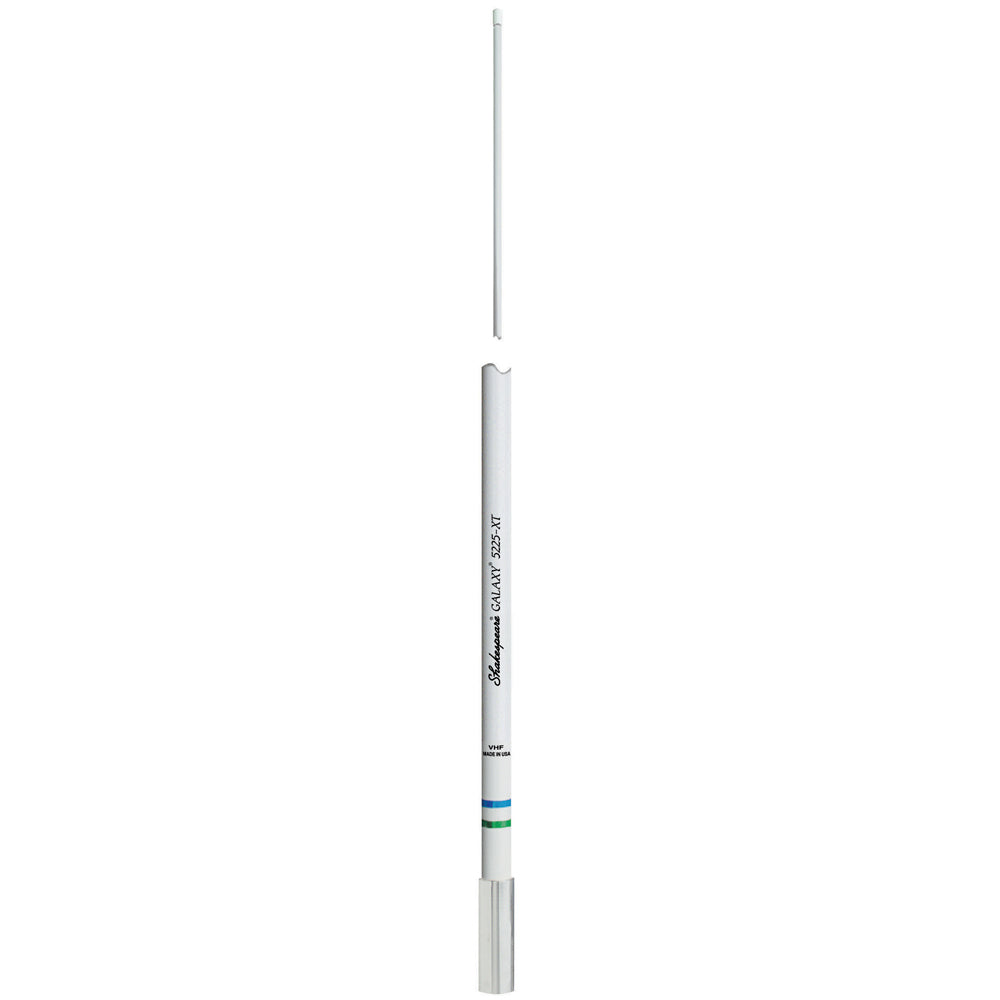

Shakespeare Galaxy 5225-XT 8' VHF Antenna - 6dB Gain - Reduced Length [5225-XT]

Galaxy 5225-XT 8' VHF Antenna - 6dB Gain - Reduced Length

EXTRA TOUGH!

Shakespeare's best 8', 6dB Gain antenna. Its Galaxy® design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare's classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

• Collinear-phased 5/8 wave elements
• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1"-14 thread
• 20' RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME cables

Technical Specifications:

• Gain: 6dB
• Frequency: VHF Marine Band
• Bandwidth: 3 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Impedance: 50 ohms
• Max Input (Watts): 100 watts
• DC Ground: YES
• Polarization: Vertical

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 96"
• Box Dimensions: 2"H x 2"W x 95"L WT: 4.75 lbs
• UPC: 719441200220
