Schaefer Marine

Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11]

SKU: 74738
(0)
$161.20
Only 2 left
Low inventory - Hurry up!

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

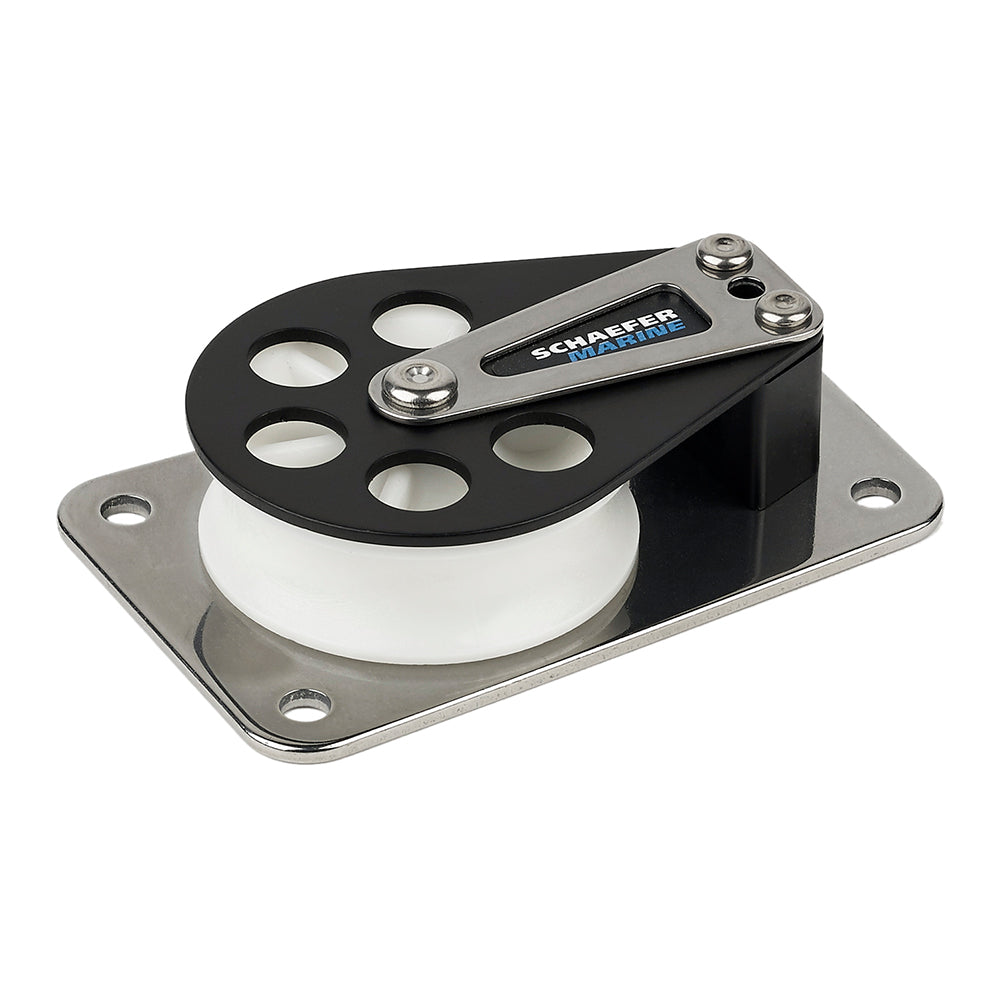

Series 7 Flat Base/Aluminum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia. 2-3/8" (60 mm)
  • Max. Line 1/2" (13 mm)
  • Length 4-3/8" (111 mm)
  • Width  2-3/4" (70 mm)
  • Height 1" (25 mm)
  • Fasteners (4) 1/4" RH (6 mm)
  • C/C 3-5/8" (92 mm)
  • C/C (wide end) 2" (51mm)
  • C/C (narrow end) 1-9/16"
  • SWL 2250 lbs. (1020 kg)
  • Weight Alum. 9.6 oz. (272 g)
