Scanstrut SC50 Adjustable Wedge f/Satcom Mounts [SC50]

SC50 Adjustable Wedge for Satcom Mounts

Designed to work with Scanstrut satcom mounts, you can quickly and easily provide a level mounting surface on any boat.

Satcom antennas require a horizontal mounting surface to function correctly.  Finding this on any powerboat is often difficult.  This satcom wedge, eradicates this problem by providing a level mounting surface on slopes from 0° to 12°.

Compatible with:

• SC35, SC45, SC45R and SC65 satcom mount

Features:

• Ingenious yet simple – simply counter-rotate the angled discs until the top surface is horizontal
• A channel system inside the discs allows un-restricted positioning of the antenna mounting bolts
• 4 pairs of 6° angled washers provide a level fastening surface for the antenna mounting bolts
• Watertight base seals fitted

Technical Specifications:

• Material - Marine grade polymer

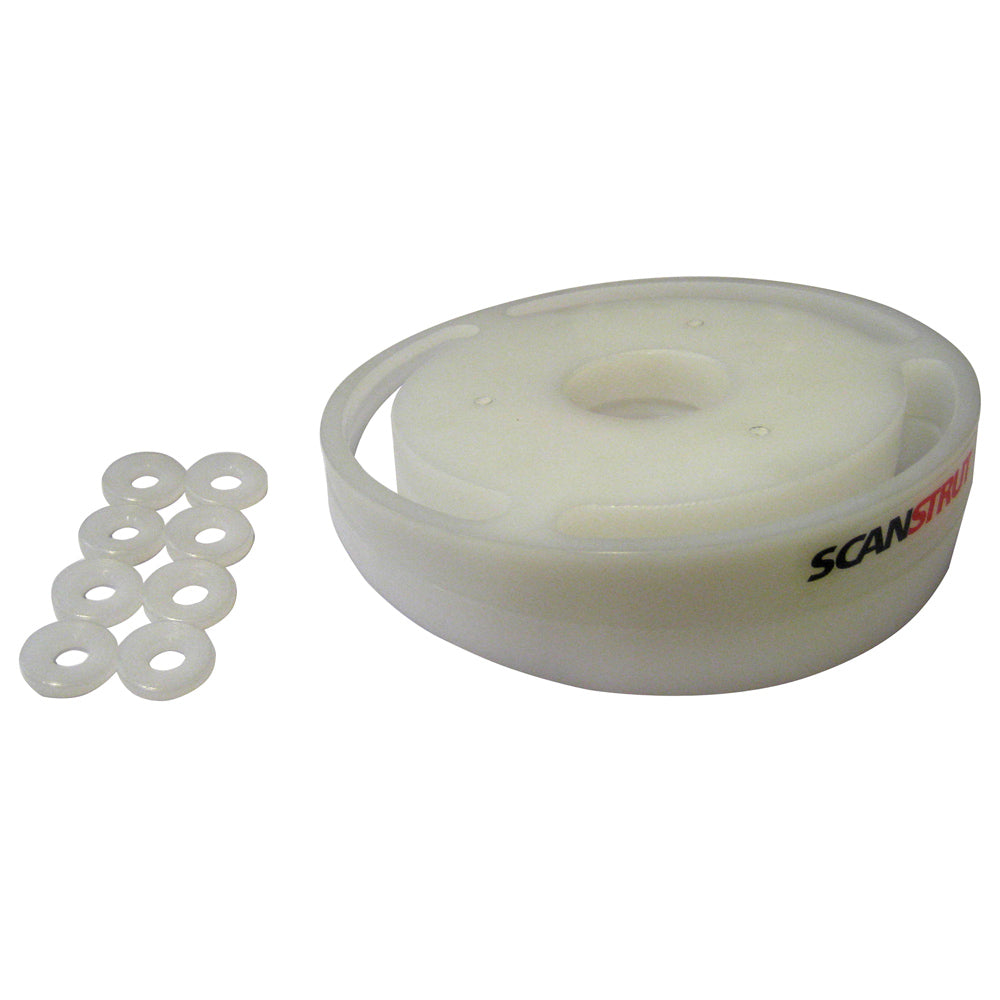

In the Box:

• Counter-rotating angled discs 0° to 12° x 2
• 6° angled washers x 4
• Mount seal
• Instruction manual

*Sold as an Individual

Specifications:

• Construction: Polymer
• Type: Wedges
• Height: N/A
• Box Dimensions: 2"H x 8"W x 9"L WT: 1.45 lbs
• UPC: 5060114790506
