Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 [E66085]

B60 Tilted Element™ 20°

20° titled version is designed for 16° - 24° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

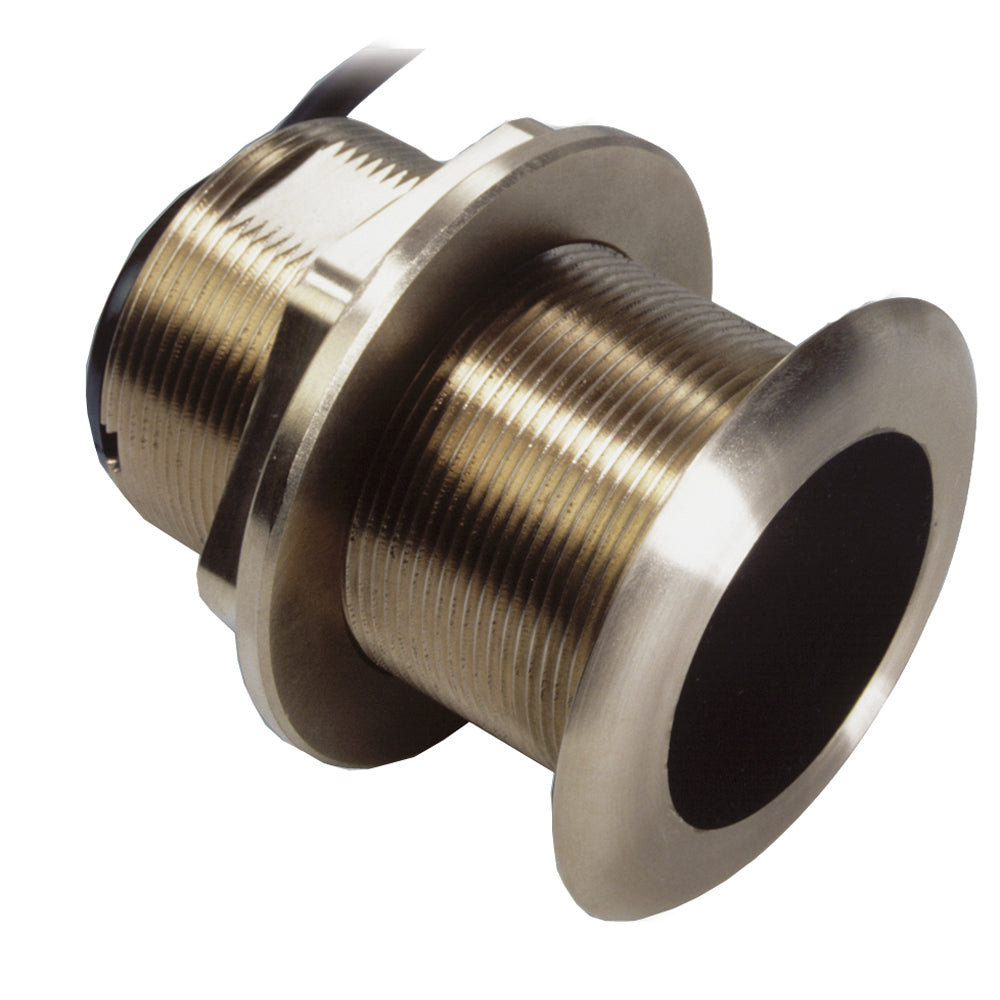

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth/Temp

• 50/200 kHz

• 600w RMS

• Mid-performance

• Bronze

Specifications:

• Chirp: No
• Cable Length (Feet): 33'
• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Box Dimensions: 2"H x 8"W x 8"L WT: 4.29 lbs
