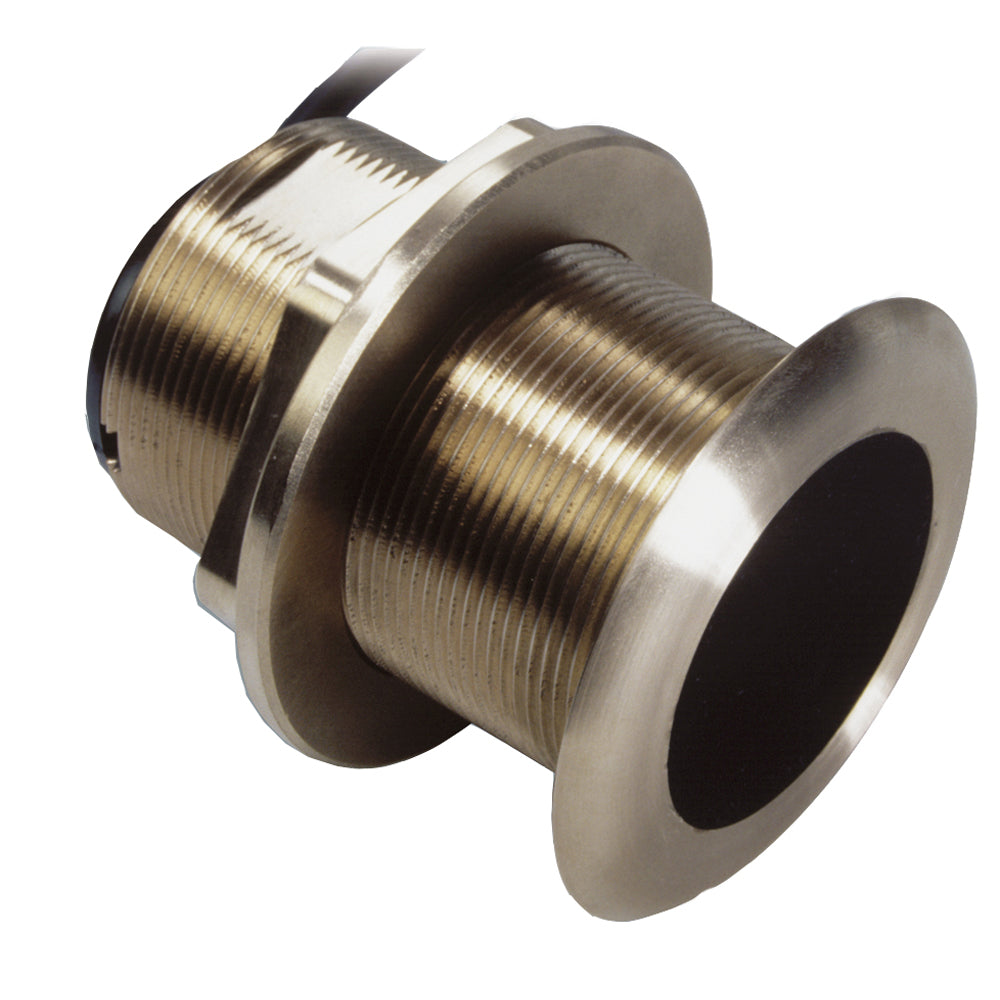

Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300 [E66086]

SKU: 26251
(0)
$389.00
-10% $429.99 $389.00
Out of stock
Ask an expert!

Not sure it fits? Send us your part number and we'll check. Call 310‑726‑3339 or email us.

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

B60 Tilted Element™ 12°

12° titled version is designed for 8° - 15° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300


The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Chirp: No
  • Cable Length (Feet): 33'
  • Box Dimensions: 4"H x 8"W x 11"L WT: 5 lbs
  • UPC: 723193660867

Owner's Manual (pdf)
Brochure (pdf)
