RAM Mount Universal Backing Plate Mount w/75x75mm VESA Plate [RAM-101-2461-225B2U]

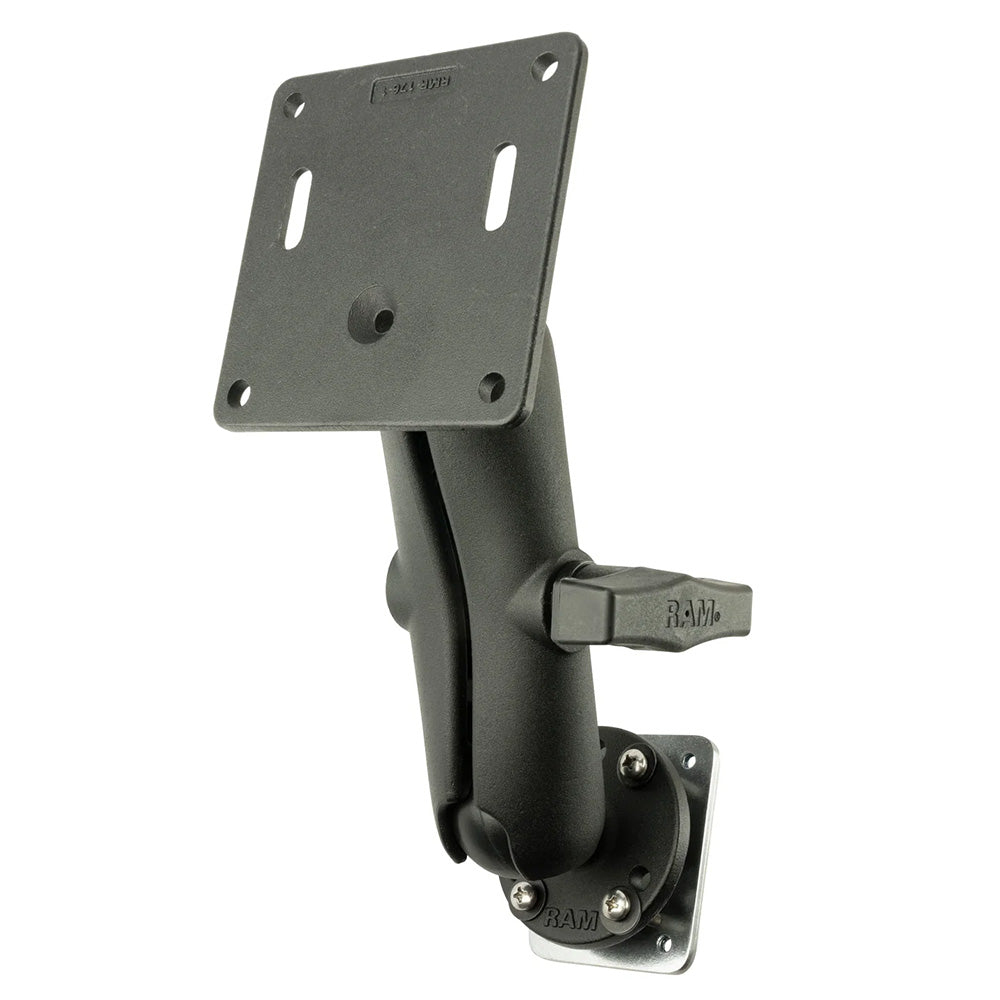

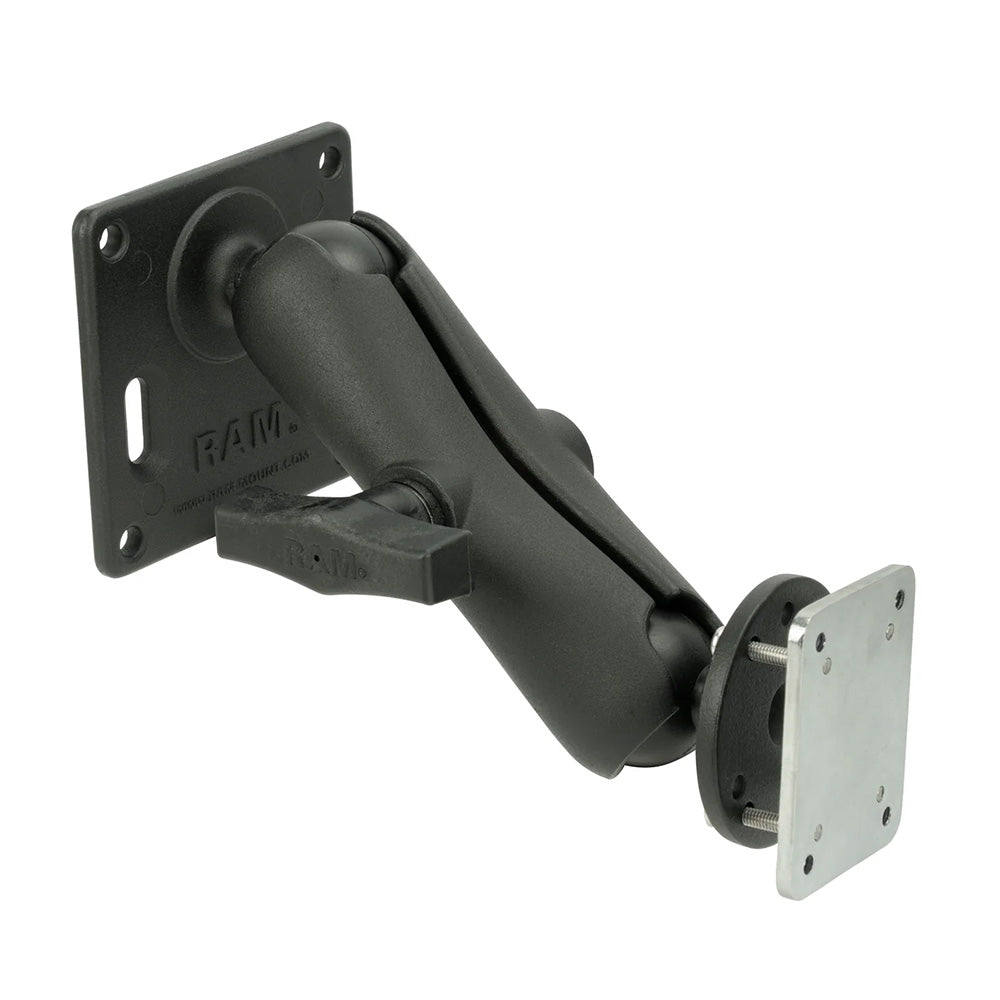

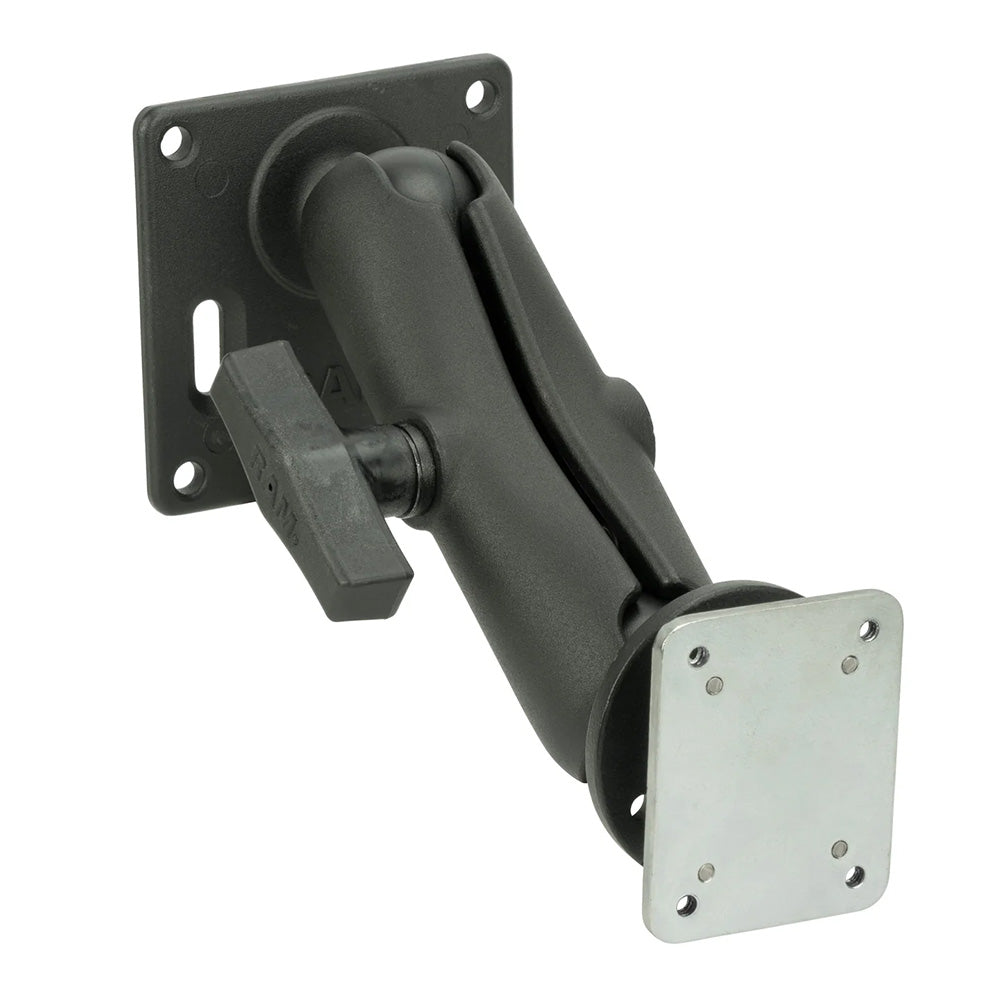

Universal Backing Plate Mount with 75x75mm VESA Plate

The mount consists of a double socket arm with one 2.5" diameter round base and one 75mm x 75mm VESA plate, as well as one backer plate. This mount is extremely adjustable and makes a great choice for anyone interested in mounting a device with a VESA hole pattern to a flat surface that can be drilled into.

Specifications:

• Hardware Included: (1) 2.10" x 2.60" Steel Backing Plate, (4) #8-32 x 1" Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
• Product Dimensions (inch): Overall Height: 7.35"
• Socket to Socket Length (inch): 4.66”
• Hole Pattern: 75 x 75mm VESA
• Plate Size (inch): 3.625" x 3.625"
• Ball Size (inch): C size (1.5”)
• Weight Capacity: The standard use is 4 lbs. and the heavy-duty use is 3 lbs.
• Materials: Marine-grade aluminum
• Weight: 1.59 lb.
