RAM Mount RAM X-Grip Large Phone Mount w/Vibe-Safe U-Bolt Base - Medium [RAM-B-149Z-UN10-462]

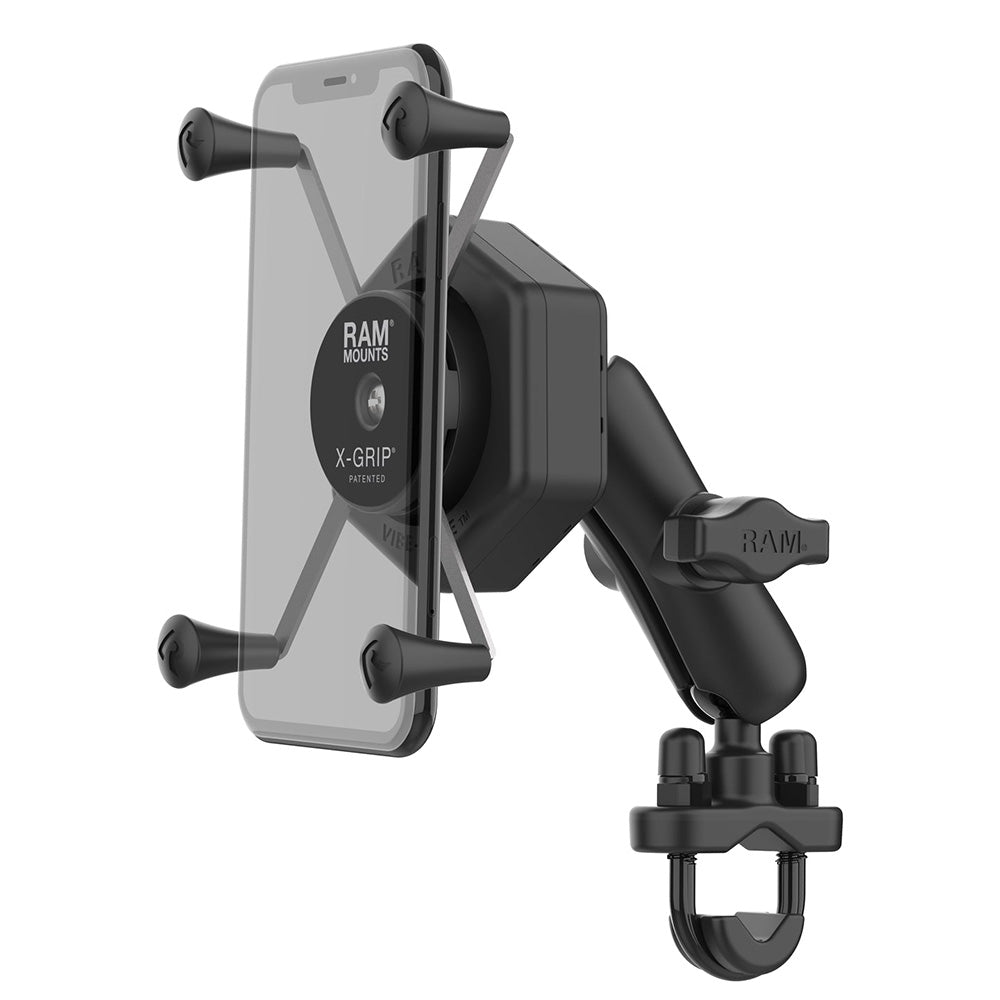

RAM® X-Grip® Large Phone Mount with Vibe-Safe™ & U-Bolt Base - Medium

The RAM® X-Grip® Large Phone Mount with RAM® Vibe-Safe™ & U-Bolt Base - Medium (RAM-B-149Z-UN10-462) is a combination of the RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base and the RAM® Vibe-Safe™—RAM's vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. This product comes pre-assembled with the device tether that is recommended for outdoor applications.

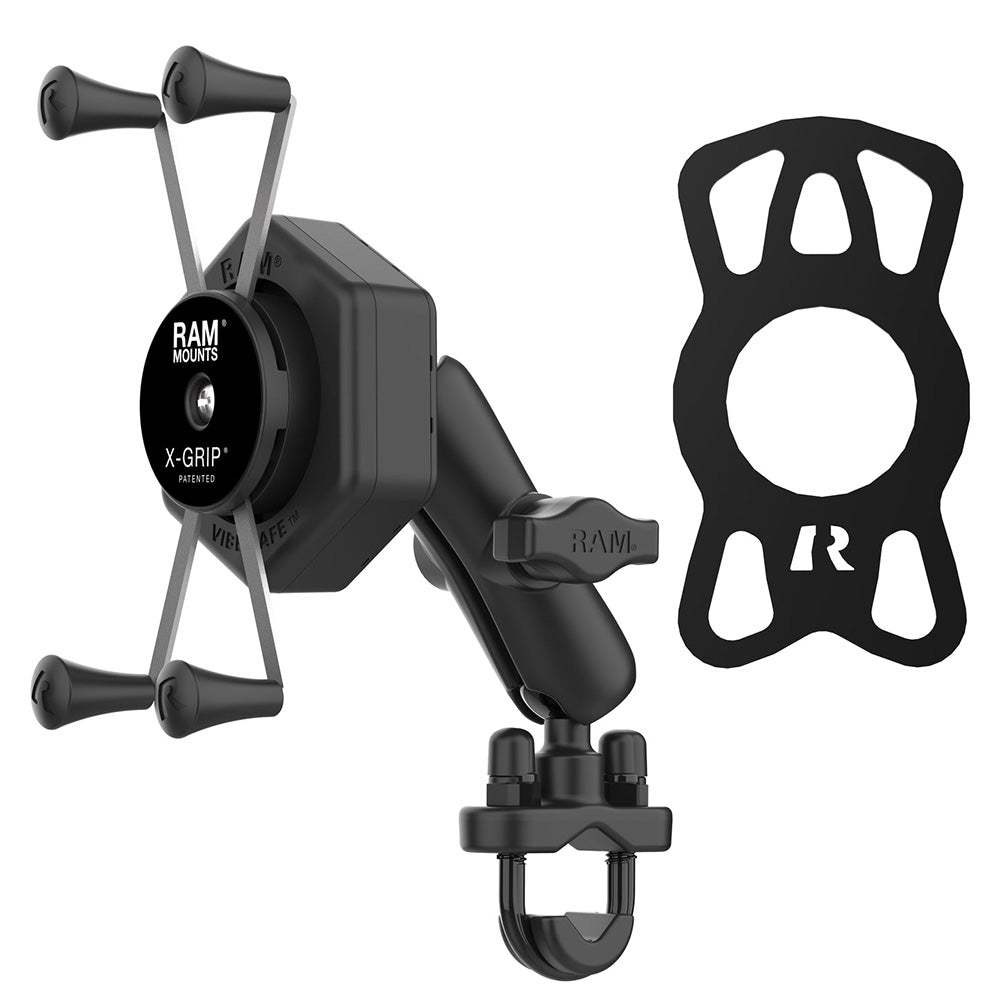

The RAM® X-Grip® can rotate between portrait and landscape by loosening the center screw. This product comes with one (1) medium B-size arm and one (1) RAM® U-Bolt Base that accommodates rails from .5" - 1.25" in diameter, as well as an optional device tether that is recommended for outdoor applications. The holder is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of the handheld device with a case, sleeve, or skin when determining the overall size.

Features:

• RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
• Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
• Unique structure and thoughtfully designed with all industries in mind
• Backed by a lifetime warranty

Specifications:

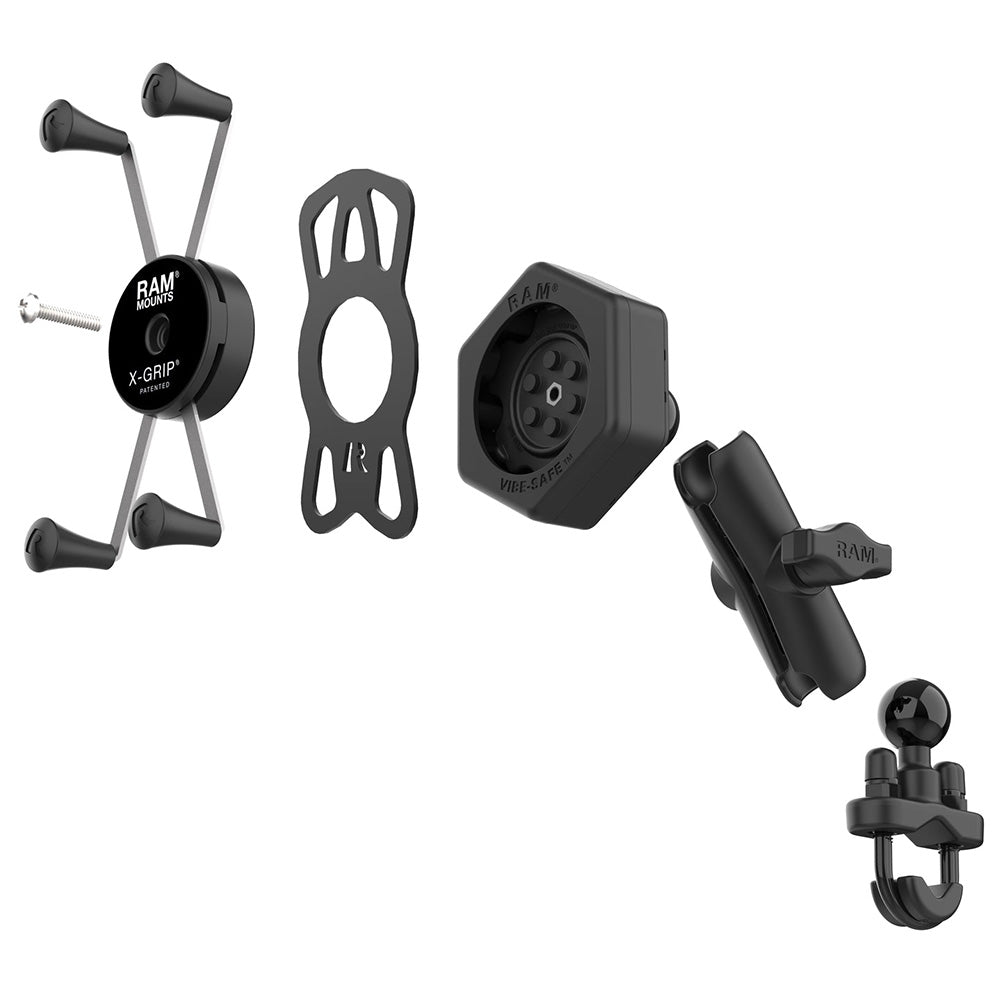

• Hardware Included: (1) Optional Tether, (1) Glue Tube for Rubber Caps, (1) 1/4"-20 U-Bolt for .5" - 1" Rails, (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, and (1) U-Bolt Spacer
• Holder Dimensions: Width Range: 1.75" - 4.5" and Depth Range: .875" max
• Clamp Range: .5" - 1.25" diameter
• Socket to Socket Length: 3"
• Ball Size: B Size (1")
• Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
• Materials: Marine-grade aluminum, High strength composite, and Stainless Steel
• Packaging Type: Retail Bag
• Weight: 1.07 lbs
• Compatible Devices:
• Apple: iPhone 6s Plus, iPhone 7 Plus, iPhone 8 Plus, iPhone Xs Max, iPhone 11 Pro Max, iPhone 12 Pro Max, iPhone 13 Pro Max, iPhone 14 Plus, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, and iPhone 15 Pro Max
• Blackberry: Evolve X
• Blackview: BV9900 and BV9900 Pro
• Cat: S42, S62, and S62 Pro
• Garmin: Drive 50, Drive 51 LM, Drive 52, Drive 61 LM, DriveSmart 51 LMT-S, DriveSmart 61 LMT-S, DriveTrack 71, Nuvi 2788LM, RV 660LMT, and RV 770 LMT-S
• Google: Pixel 2 XL, Pixel 3 XL, Pixel 3a XL, Pixel 7 Pro, and Pixel 8 Pro
• HTC: Bolt and U Ultra
• Huawei: Mate 20 X
• Kyocera: DuraSport 5G
• LG: Fiesta Fiesta 2 LTE, Fiesta LTE, G8S ThinQ, Harmony, Stylo 2 V, Stylo 3, Stylo 3 Plus Titan, Stylo 4, V20, V50 ThinQ, X charge, and X venture
• Magellan: TR5 and TR7
• Motorola: moto e4 plus, moto g4, moto z2, moto z2 play, and moto z3
• Rand: McNally Road Explorer 5 and McNally TND 540
• Razer: Phone 2
• Samsung: Galaxy A7, Galaxy A7 (2017), Galaxy A7 (2018), Galaxy A8, Galaxy A8 (2016), Galaxy A9 (2016), Galaxy A9 Pro (2016), Galaxy A9 (2018), Galaxy A70, Galaxy A80, Galaxy A90 5G, Galaxy C7, Galaxy C7 Pro, Galaxy C9 Pro, Galaxy E7, Galaxy Grand Neo Plus, Galaxy J7, Galaxy J7 Max, Galaxy J7 V, Galaxy Note 5, Galaxy Note 10 Plus, Galaxy Note20 Ultra, Galaxy On7, Galaxy S10 5G, Galaxy S8, Galaxy S8 Active, Galaxy S21 5G, Galaxy S21+ 5G, Galaxy S21 Ultra 5G, Galaxy S22 Ultra 5G, Galaxy S23+, and Galaxy S23 Ultra
• Social: Mobile Rhino C6
• Sonim: RS60
• Sony: Xperia C4, Xperia L2, Xperia XA Ultra, Xperia XA1 Ultra, Xperia XA2 Ultra, and Xperia XZ Premium
