RAM Mount RAM Track Ball Mount f/Garmin Striker + More [RAM-B-202-G4-TRA1U]

RAM® Track Ball™ Mount for Garmin Striker + More

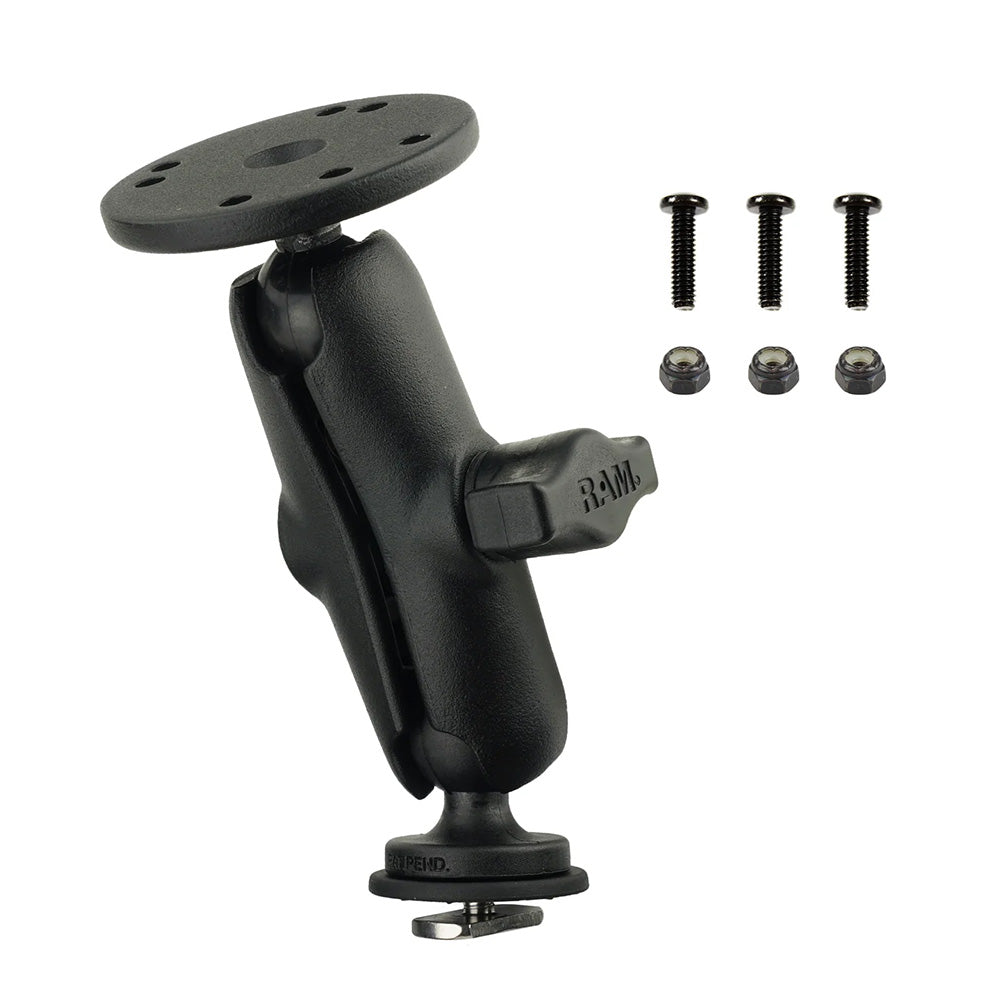

This RAM® Track Ball™ bundle includes the RAM® Track Ball™, the RAM® Double Socket B Size Arm, and the RAM® Round Plate with Ball & Mounting Hardware for Garmin Striker and other fishfinder models. The RAM® Track Ball™ consists of a B-size 1" rubber ball molded to a high-strength composite base, a rubber friction washer, and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the RAM® Track Ball™ into the track and twist the ball clockwise to tighten it in place. Twist counterclockwise to loosen or adjust the ball.

The included RAM-B-201U consists of a medium-length double socket arm that accommodates 1" B-size ball bases, device holders, and adapters. The easy-to-adjust knob allows for near-infinite adjustability for the connected device. The RAM-B-202-G4U consists of a 1"-diameter rubber ball connected to a flat 2.5"-diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern. Included are 3x (#8-32 x 5/8” PH PD Mach Screws) and 3x (#8-32 SS Nylock Nuts) that will connect the RAM-202-G4U to the bottom of the Garmin echo™ and Striker™ 4 Series.

Features:

• Designed for track mounting systems including the RAM® Tough-Track™; includes 1" B-size rubber ball
• Features a rubber friction washer and a stainless steel T-bolt; simply insert it into the track and twist the ball clockwise to tighten
• Standard RAM® double socket arm provides an ideal overall length of 3.73" and a socket-to-socket length of 3"
• Made of high-strength composite and steel components for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Specifications:

• Hardware Included: (3) #8-32 x 5/8" Machine Screws and (3) #8-32 Nylock Nuts
• T-Bolt Dimensions (inch): 0.48" x 0.95"
• Socket to Socket Length: 3"
• Hole Pattern (inch): 4-Hole AMPS: 1.181" x 1.496"; 3-Hole 120-Degree: 1.812" Diameter
• Ball Size: B Size (1")
• Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
• Materials: Marine-grade aluminum and high-strength composite
• Packaging Type: Polybag
• Weight: 0.4 lbs.

Compatibility:

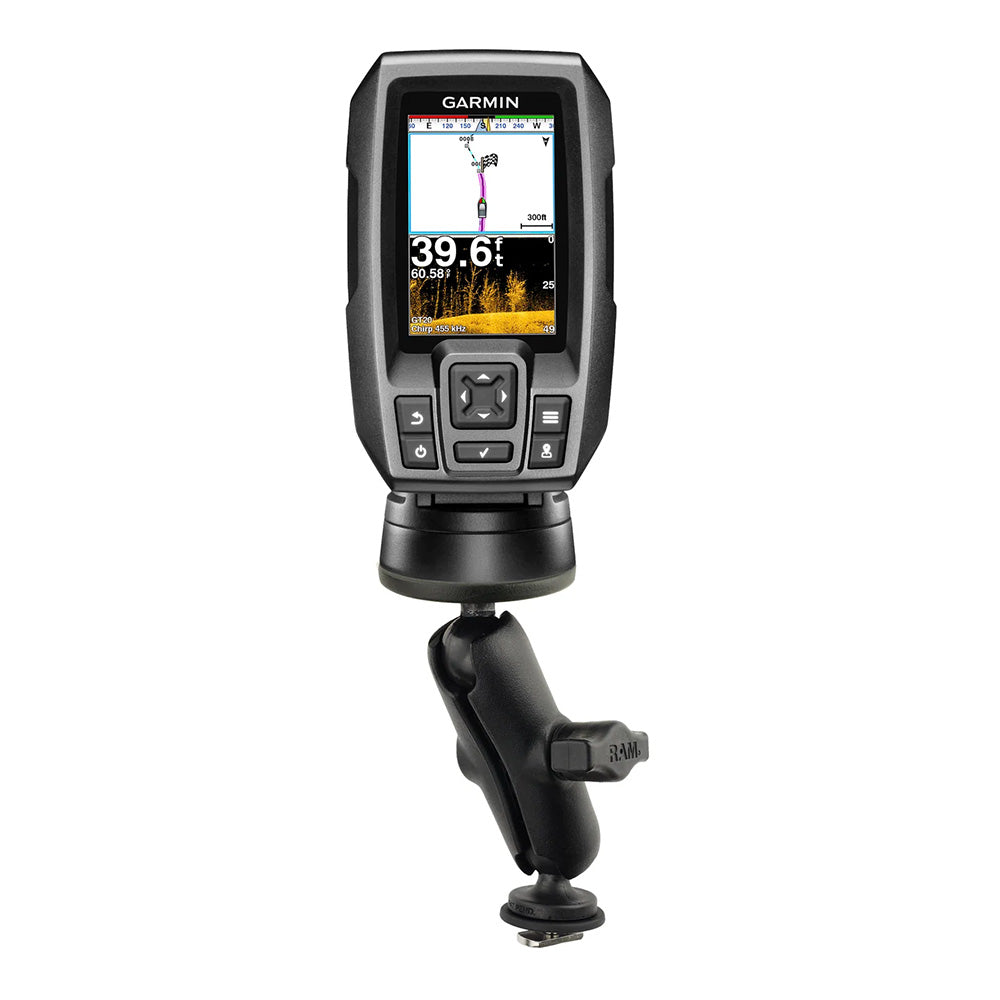

• Garmin: Striker 4, Striker 4dv, Striker Plus 4cv, Striker Vivid 4cv, echo 100, echo 150, echo 300c, ECHOMAP Plus 42cv, ECHOMAP Plus 43cv, ECHOMAP Plus 44cv, ECHOMAP Plus 45cv, and ECHOMAP UHD2 6"
