RAM Mount RAM Tough-Tray Double Ball Mount w/Double U-Bolt Rail Base [RAM-101-DAN1U]

RAM® Tough-Tray™ Double Ball Mount with Double U-Bolt Rail Base

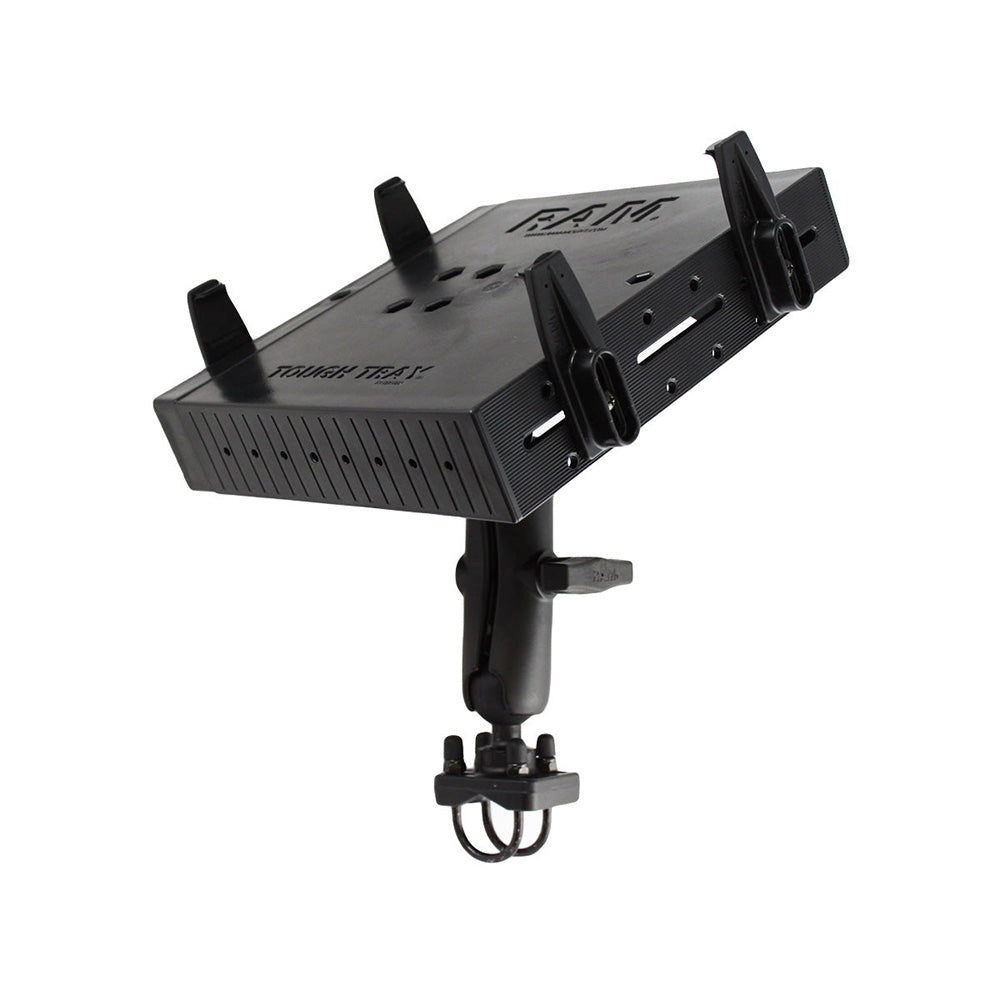

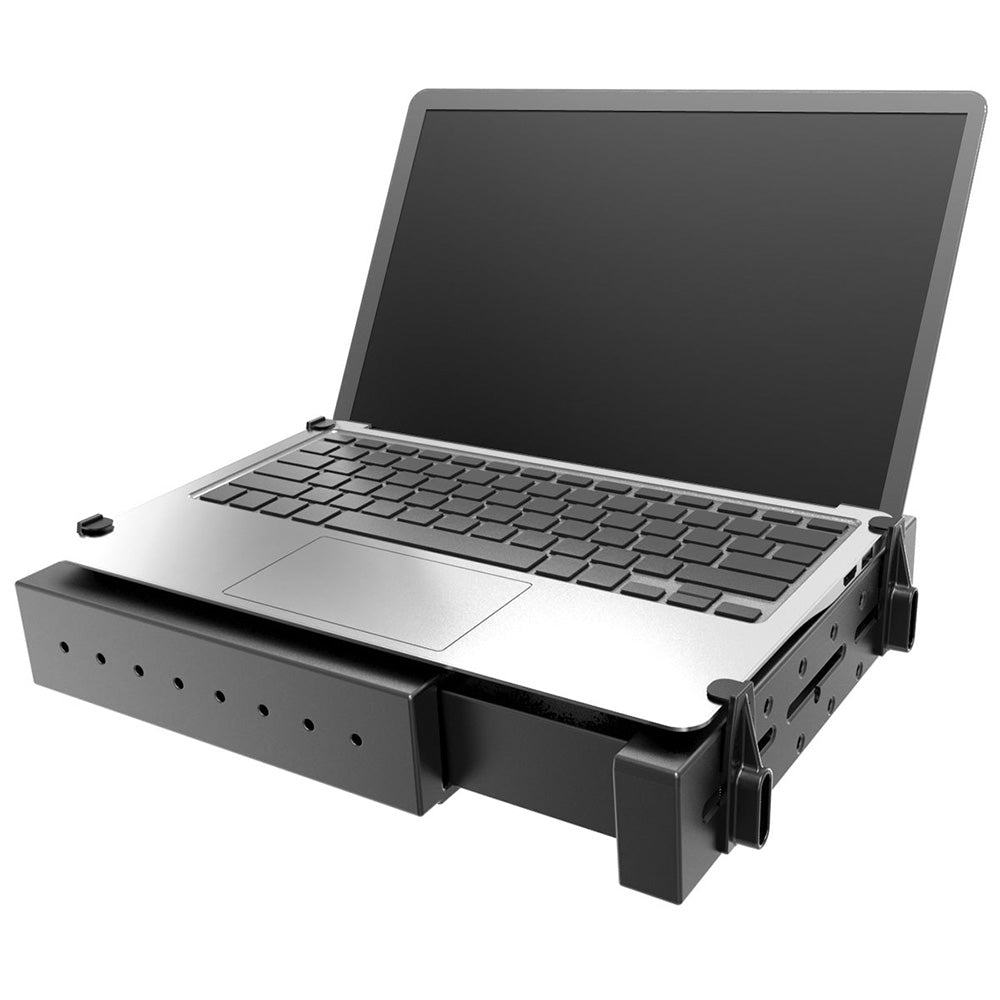

The RAM-101-DAN1U consists of the RAM Tough-Tray™ with flat retaining arms, a standard length 6" double socket arm, and 1.5" diameter ball double u-bolt base. The RAM Tough-Tray™ is a spring-loaded expandable tray that can accommodate 10 to 16-inch-wide laptops.

The tray includes four FLAT (4) side clamping arms, allowing a laptop to close completely while in the tray. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on the perimeter of the tray facilitate the mounting of additional RAM systems to support GPS, phones, or other electronics.

Specifications:

• Hardware Included: Assembly Hardware, (2) 1/4"-20 U-Bolts for 1" - 1.25" Rails, (4) 1/4"-20 Nylock Nuts, (4) Rubber CapsHolder
• Tray Dimensions: Width Range: 10" - 16", Side Arm Clamp Height: .5" - 1.75", Tray Depth: 10", Tray Clamp Range: 1" - 1.25" diameter
• Socket 2 Socket Length: 4.66"
• Ball Size: C size (1.5")
• Weight Capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lb
• Materials: Marine-grade aluminum and high-strength composite
• Packaging Type: Polybag
• Weight: 4.15 lbs.
