RAM Mount RAM No-Drill Universal Laptop Mount [RAM-VB-196-SW3]

RAM® No-Drill™ Universal Laptop Mount

The RAM® No-Drill™ Universal Laptop Mount (RAM-VB-196-SW3) installs quickly and easily to the passenger seat rails using the existing vehicle hardware. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally).

The tray features four adjustable retaining arms with grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify the full range of vehicle compatibility on the tab above.

Features:

• Universal laptop vehicle mount installs using passenger seat bolts; no drilling required
• Dual articulating swing arm provides a high-level of adjustability
• Universal laptop tray accommodates most laptops
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty

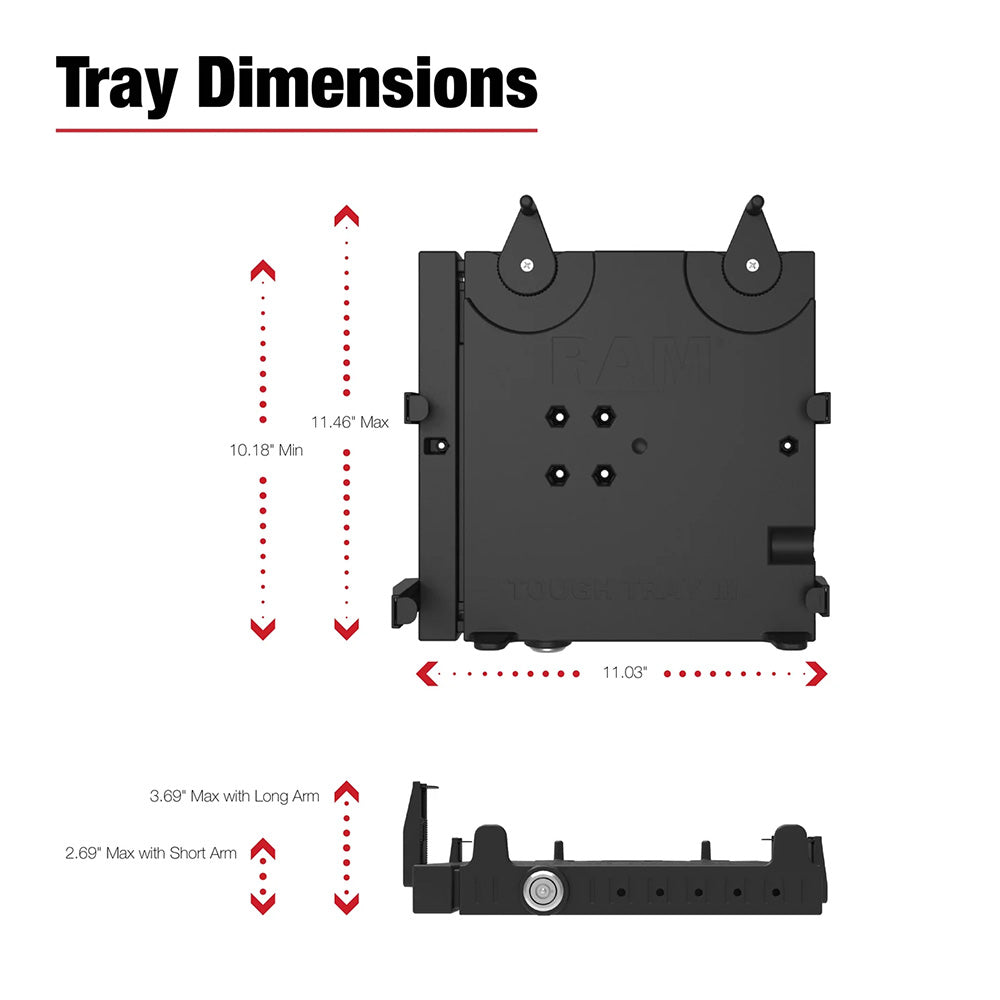

Tray Dimensions:

• Width Range: 10" - 15.25"
• Side Arm Clamp Height: 0" - 1.875"
• Depth Range: 7.625" - 10.625"
• Tray Thickness: 1.26"

Product Dimensions:

• Height Range: 18.25" - 24"

Hole Pattern:

• Seat Bolt Distance: 9"-18.875" center to center

Ball Size:

• C Size (1.5")

Compatible Vehicles:

Chevrolet:

• Equinox (2018-2024)
• Traverse (2018-2024)

Dodge:

• Grand Caravan (2008-2020)

Ford:

• Escape (2020-2026)
• Maverick (2022-2026)

GMC:

• Terrain (2018-2024)

Toyota:

• Prius (2016-2022)
• RAV4 (2019-2025)
• Tacoma (2024-2026)

Additonal Information:

Vehicles in this compatibility list have been tested and confirmed with this base.

Depending on your vehicle, some installations may limit the adjustability of the passenger seat.

This base is primarily recommend for left-hand drive vehicles. For right-hand drive vehicles, see RAM-VB-196-1-SW1.
