RAM Mount 1.5" Ball Mount w/2.5" Round Base, Short Arm 1.5" x 3" Plate f/Humminbird Helix 5 Only [RAM-202-153-B-202U]

1.5" Ball Mount w/2.5" Round Base, Short Arm & 1.5" x 3" Plate f/Humminbird Helix 5 Only

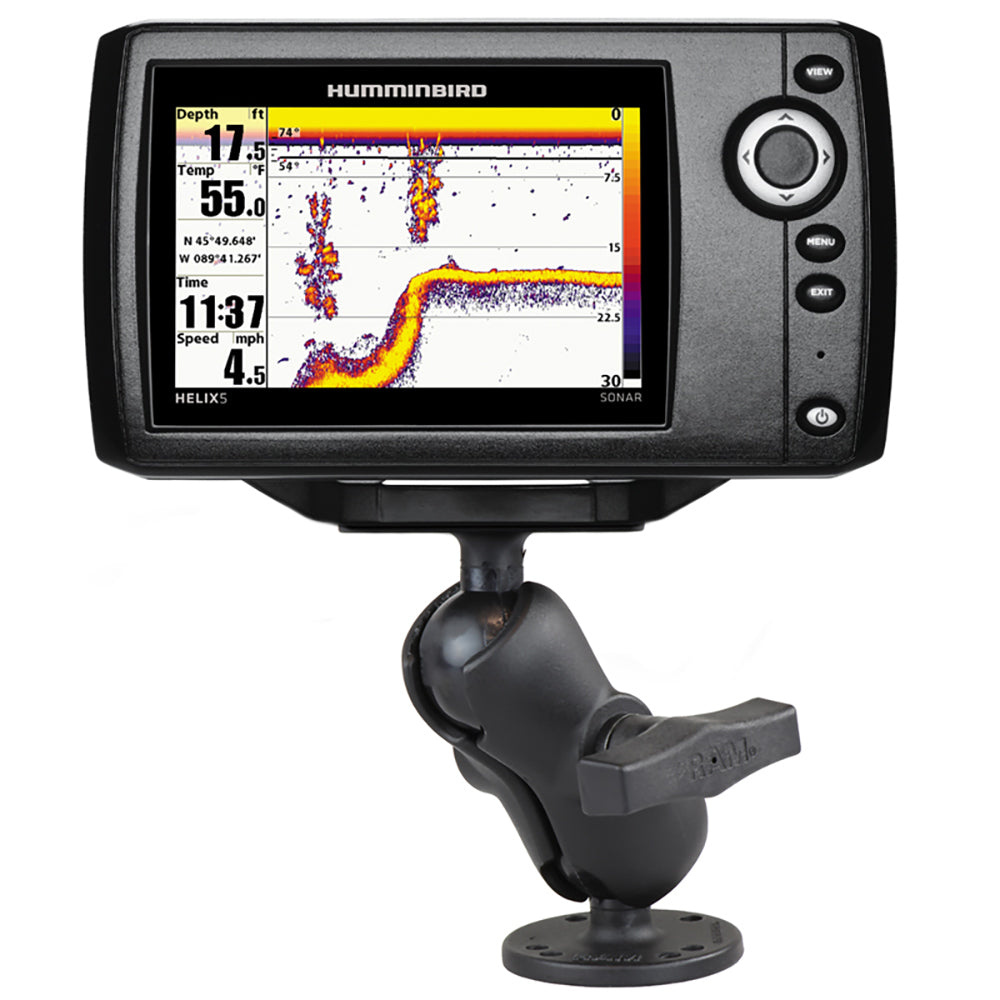

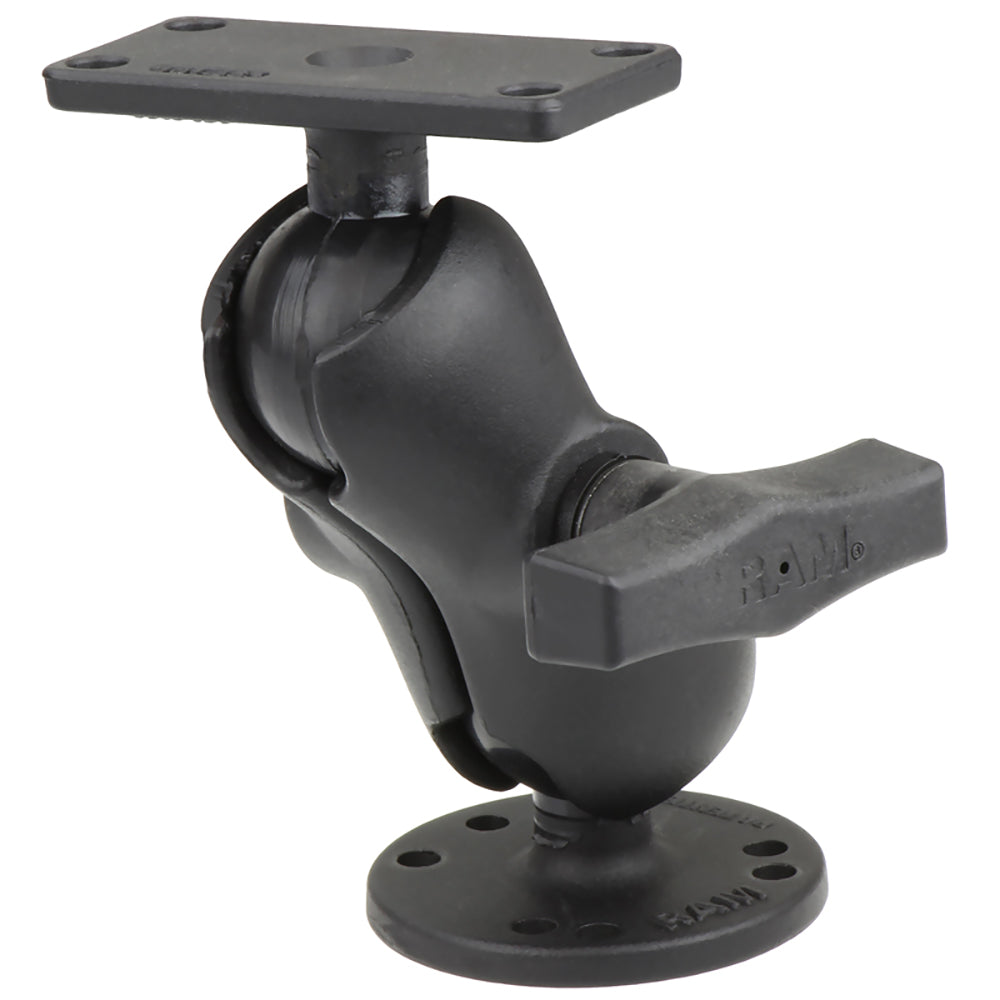

The RAM-202-153-B-202U consists of a round 2.5" diameter round base (Universal AMPs Hole Pattern), short double socket arm and 1.5" x 3" rectangular base. The rectangular base contains four holes with a center to center pattern of 1" x 2.5". For most applications, mount will support up to ten pounds.

Features:

• Compatible Devices: Humminbird Helix 5
• Center to Center Hole Pattern: 1" x 2.5"
• Weight Capacity: 10 lbs.
• Overall Height: 5.225"
• Material: Powder Coated Marine Grade Aluminum
• Ball Size: 1.5" Rubber Ball Size
• Note: The "U" in the part number reflects product packaged in poly bag. Hardware for mounting to device not included with purchase.
• Weight: 0.19 lbs.
