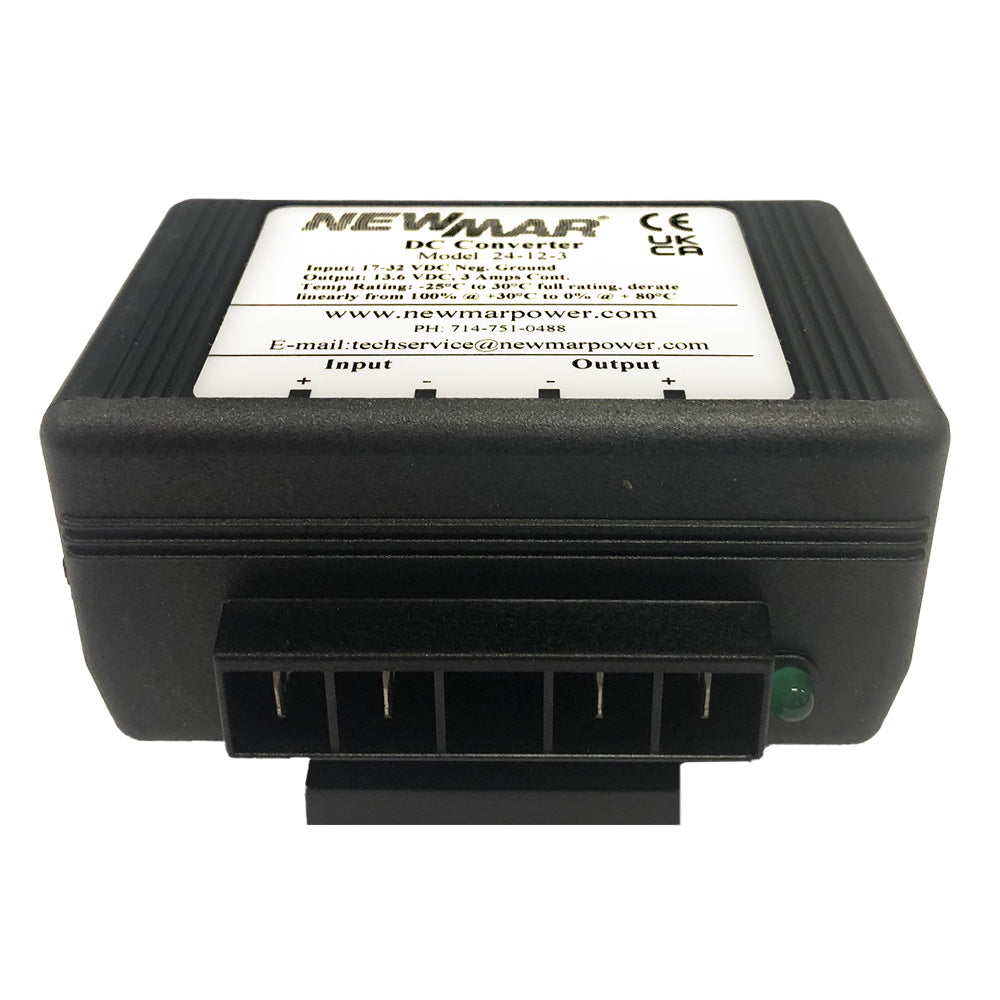

24-12-3 DC Converter
Convert 17-32 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)
Features:
- Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating
- The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components
- Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments
Numerous Converter and Load Protection Circuits:
- Current limiting
- Automatic thermal shutdown
- Short circuit proof
- Reverse polarity
- Overvoltage protection
- Carries CE mark
Specifications:
- Input Voltage: 17-32
- Output Voltage: 13.6
- Output Amps (Intermittent): 3
- Output Amps (Continuous): 3
- Case Size (H x W x D): 3.5 x 3.5 x 1.75 inches (8.9 x 8.9 x 4.5 centimeters)
- Weight: 1 lb. (.45 kg)
- Output: 13.6 VDC (internally adjustable 12.6 -14.5)
- Ripple: 150 mV P-P maximum
- Regulation: 1% Line/Load
- Switching Frequency: 40 kHz
- Efficiency: 85% – Typical.
- Isolation: Output/Chassis; Input/chassis: 250 VDC
Duty Cycle Ratings*:
- Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating.
- Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time
- Idle Current: Less than 100 mA (including power “ON” light)
Operating Temp Specifications:
- 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C.
- Thermal shutdown @ 70 degrees C Case Temperature
- Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C
Mechanical Specifications:
- Powder-coated aluminum heat sink case
- Front panel terminal block
- Heavy-duty mounting flange
- Conformal coated PC board
Options:
- Operation as battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
