Navico xSonic SS75H Depth/Temperature Transducer 12 - 9-Pin - 600W - 10M Cable [000-13912-001]

SKU: 67028
(0)
$921.00
Out of stock

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

xSonic SS75H Depth/Temperature Transducer 12° - 9-Pin - 600W - 10M Cable

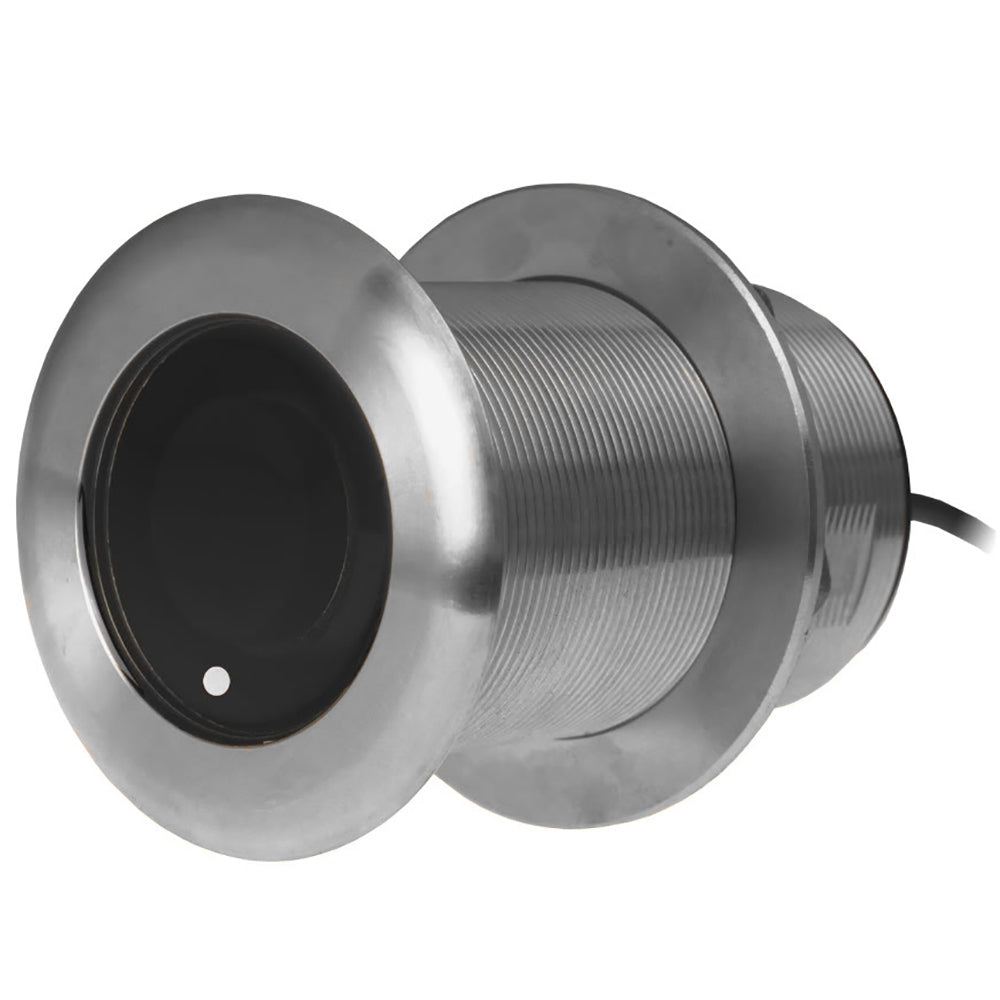

The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:

  • CHIRP - CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
  • Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
  • Easy To Install
  • High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
  • Highly Accurate - Provides extremely accurate data.
  • 12° Tilt - The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
  • Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull.
  • Plug & Play Connection - Easily connect to NSSevo3, Lowrance

Specifications:

  • Frequency: High CHIRP (130-210kHz)
  • Power Rating: 600W
  • Speed Sensor: No
  • Temperature Sensor: Yes
  • Mounting Style: Bronze Thru-Hull
  • Elements: 1
  • Beamwidth @ -3dB: 15° to 9°

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Chirp: High
  • Cable Length (Feet): 33'
  • Pins: 9
  • Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs
  • UPC: 9420024162675
