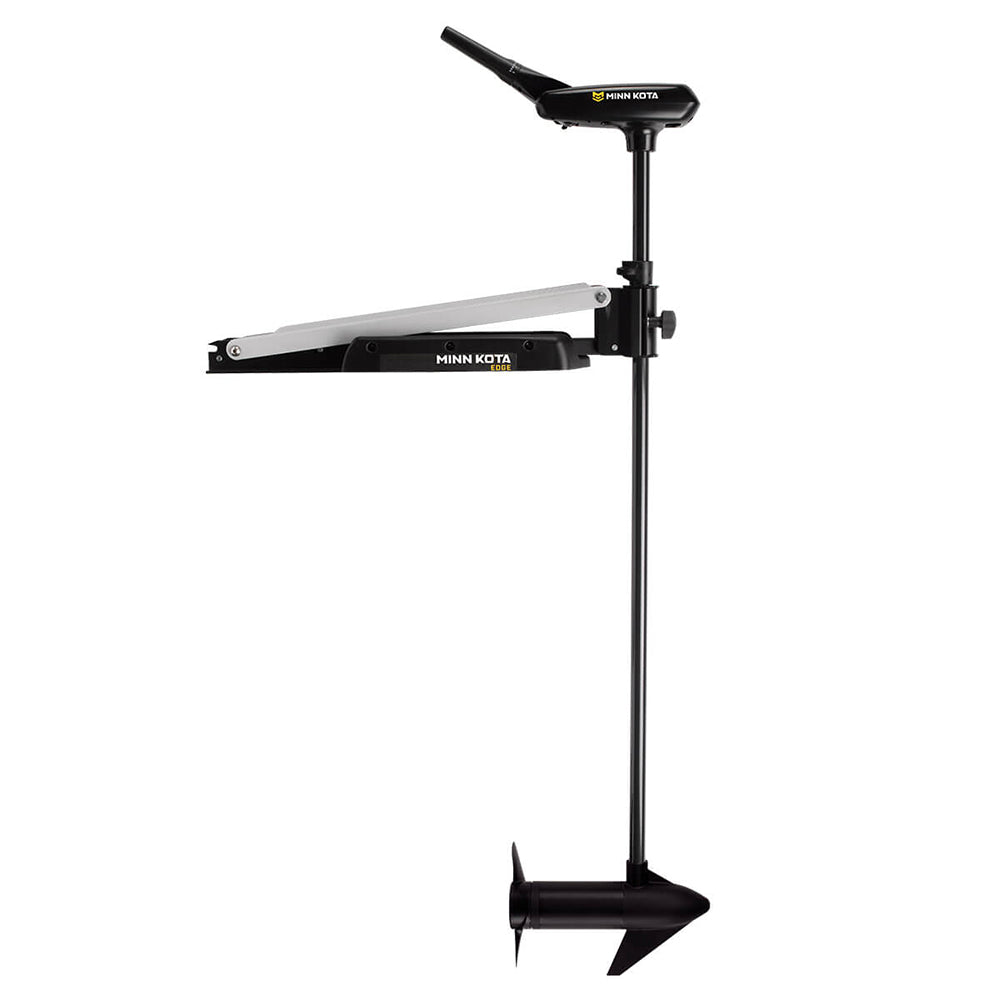

Edge 45 - Hand Control - 12V-45lb-45"

Don't let the size fool you. Edge's compact mount is built with extruded, anodized aluminum for rugged, no-nonsense strength. Add a rock-solid Latch & Door mount and an impact resistant composite head, and you have a motor that's perfect for smaller boats and big days on the water.

Features:

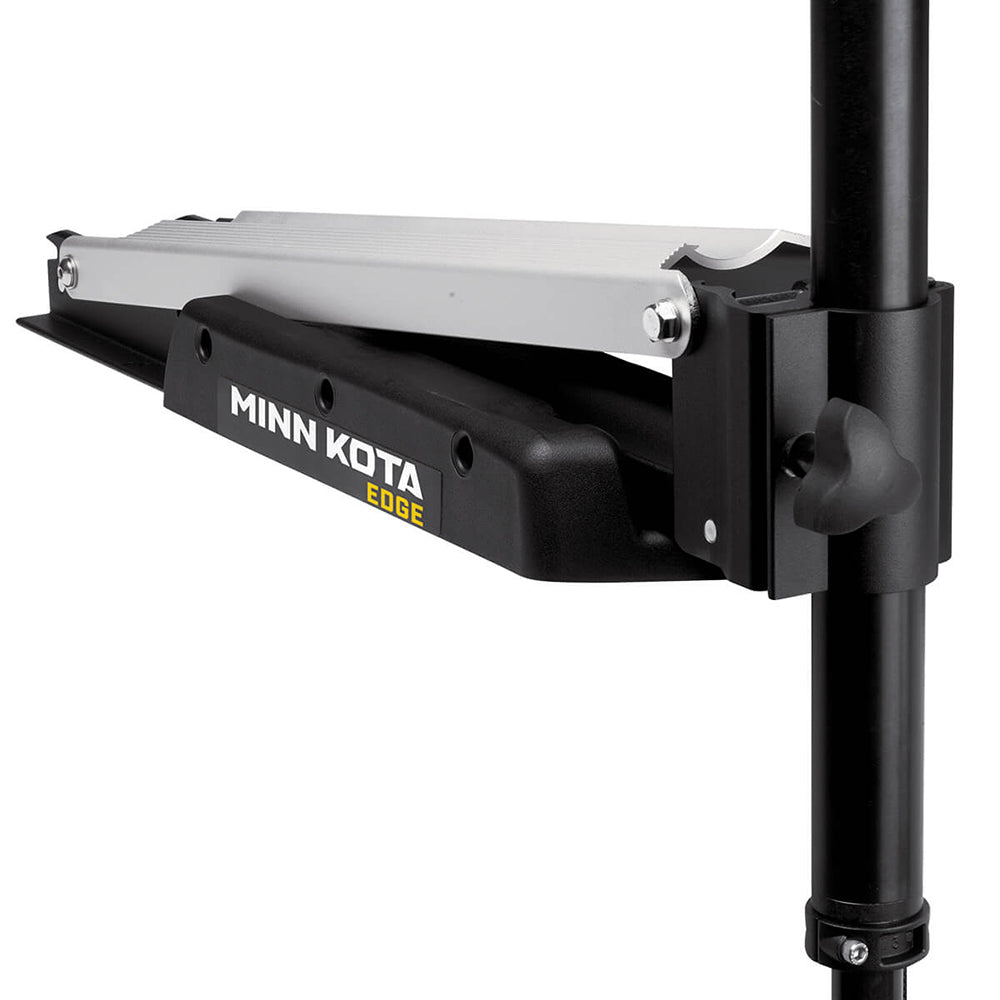

  • Latch & Door Bracket: This bracket gives you a rock-solid hold while stowing your trolling motor and makes for easy removal at the end of the day.
  • 5-Speed Settings: Choose from five speed settings to dial in the right speed control when you're trolling.

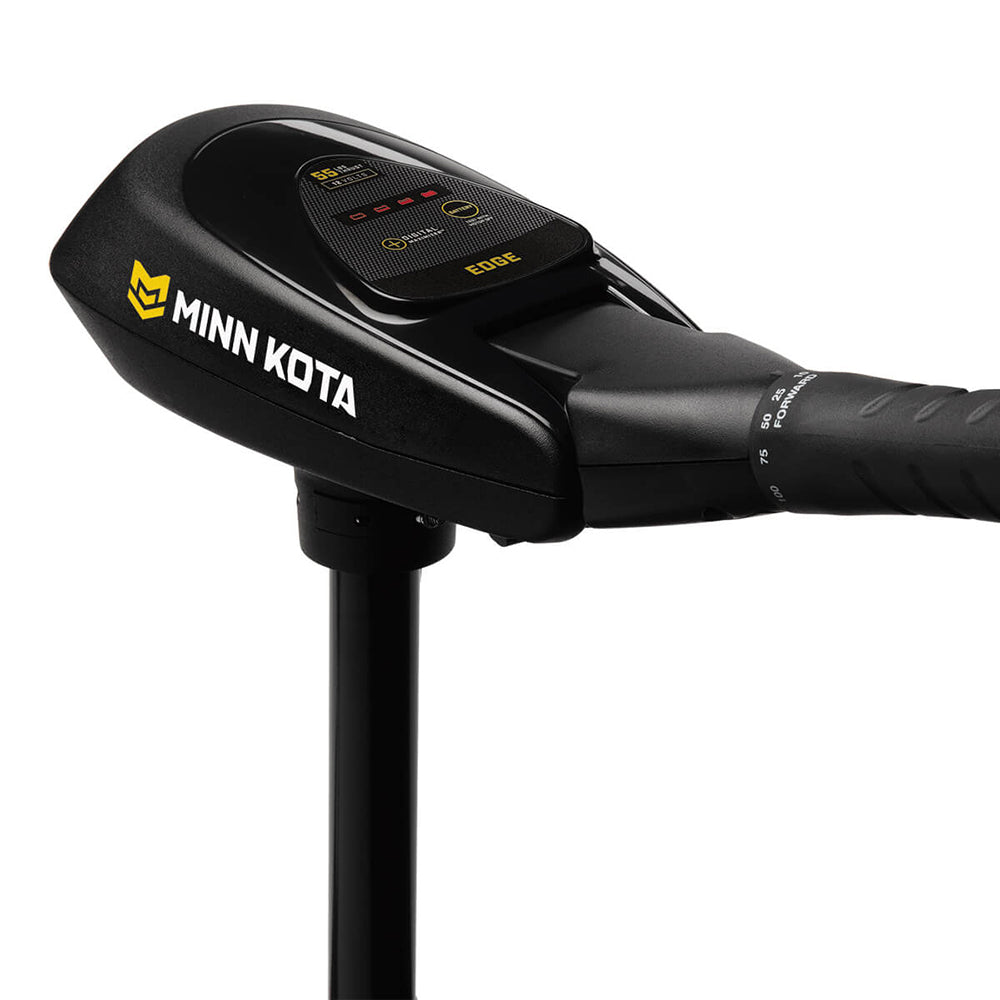

  • Directional Indicator: Easy-to-read directional indicator is built into the top of the trolling motor head on Edge foot control models.
  • Power Prop: For 3-1/4" motor diameters, this prop delivers extra power to push throw heavy vegetation. Includes prop pin, nut and washer.
  • Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructable composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.
  • Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend trolling motor life, and stays quiet.
  • What's Included: Edge 45 lb. 45" hand-control trolling motor, MKP-2 Prop, Hold Down Strap and Mounting Hardware.

Specifications:

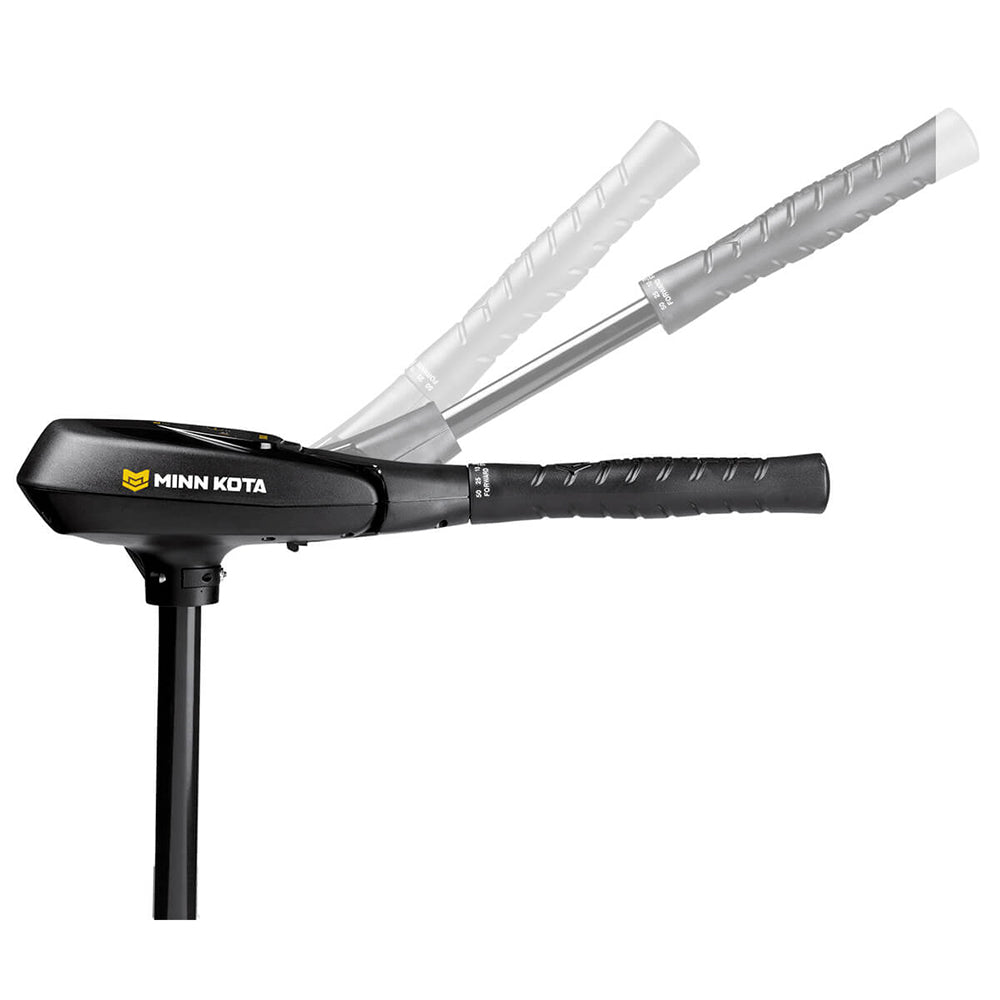

  • Control: Hand
  • Volts: 12
  • Max Thrust: 45 lbs.
  • Shaft Length: 45"
  • Speed Control: 5-Speed
  • Max. Amp Draw: 42
  • Prop: Power Prop (MKP-2)

Specifications:

  • Autopilot: No
  • Control Type: Tilt Twist Tiller
  • Included Propeller: MKP-2
  • Mounting Style: Bow
  • Salt Water/Fresh Water: Fresh
  • Series: Edge
  • Shaft Length (Inches): 45"
  • Thrust (Pounds): 45 lbs
  • Built-In Transducer: No
  • Voltage - Input Range (Volts): 12v
  • Box Dimensions: 9"H x 20"W x 63"L WT: 41 lbs
  • UPC: 029402047796

Owner's Manual (pdf)
