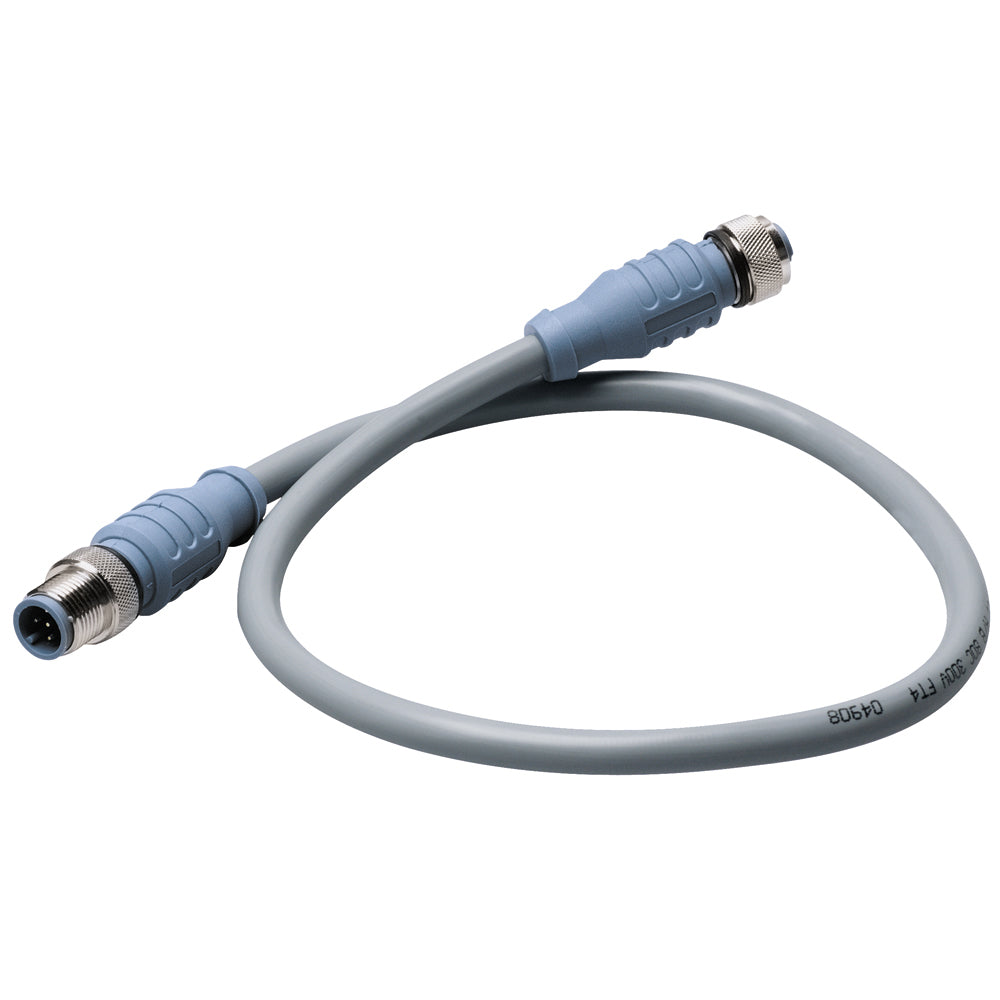

Maretron Micro Double-Ended Cordset - 1 Meter [CM-CG1-CF-01.0]

Micro Double-Ended Cordset - 1M

Mechanical

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"
  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
  Approvals
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
  AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
  AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved

Specifications:

• Connection Gender: Male-Female
• Data Interface: NMEA 2000
• Cable Length (Meters): 1m
• NMEA 2000 Connectors: Backbone/Drop Cables
• Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs
• UPC: 873804001517
