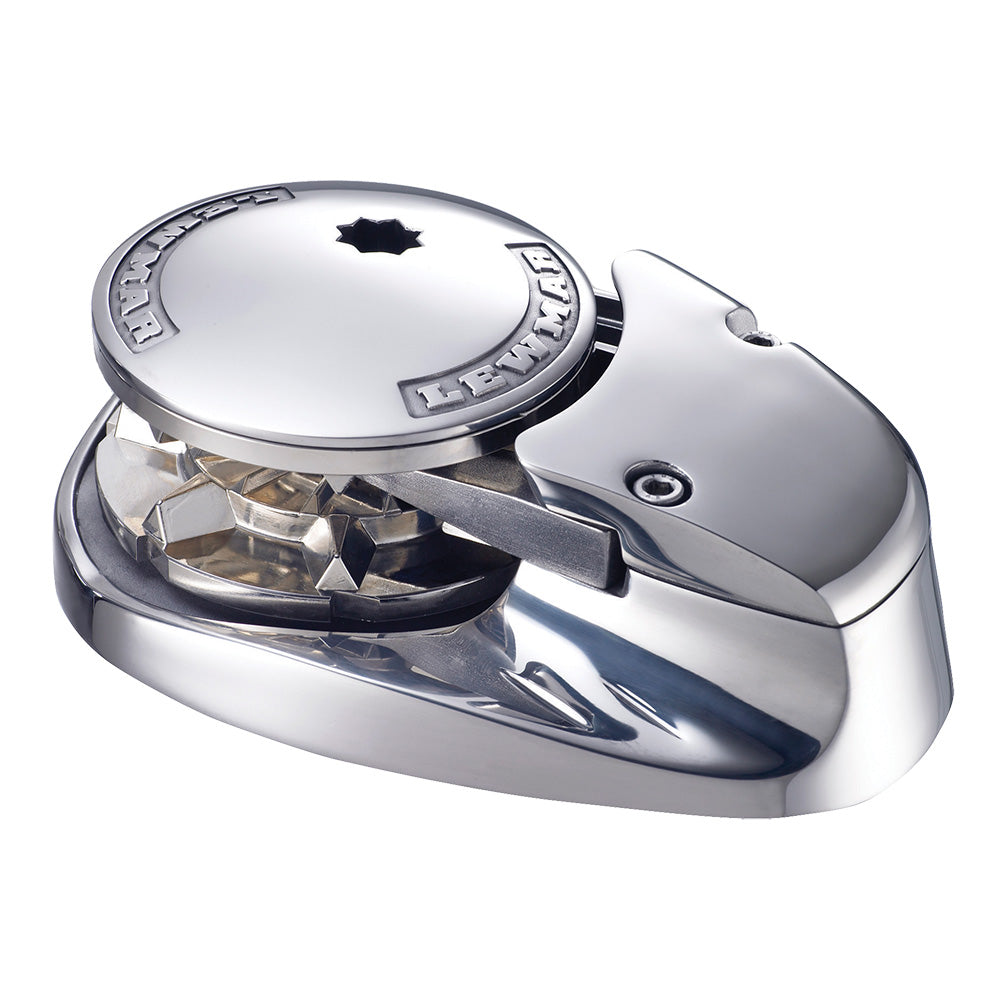

Lewmar V700 Vertical Windlass - 12V [6670011108]

SKU: 94333
Regular price $1,236.99
Regular price -18% $1,504.95 Sale price $1,236.99
In stock
Usually ships within 24 hours (1–2 days at most)
Ask an expert!

Not sure it fits? Send us your part number and we'll check. Call 310‑726‑3339 or email us.

Got questions?

For engine parts which show "IN STOCK" & "On backorder", they are available for transfer from our Miami warehouse (3–5 days) or Spain (2–3 weeks).

We advise you get in touch

V700 Vertical Windlass - 12V (Windlass only)

With 100%  316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market.  It works at the push of a button and has two built-in features that make it unique - motor protection and anchor lock.

The V700 comes with a gypsy able to accept 1/4 inch chains.

*Does not include contactor or circuit breaker.  Windlass ONLY.

Features:

  • For rope, chain, or combination rodes
  • Built-in motor protection and fail-safe anchor lock
  • Easy installation
  • Fast line speed
  • Manual recovery option
  • Impact-resistant cover

Technical Specifications:

  • Material - Stainless Steel
  • Maximum Pull - 700lbs
  • Maximum Line Speed - 82'/min
  • Maximum Chain Size - 1/4"
  • Maximum Rope Size - 1/2"
  • Power - 12 V
  • Maximum Boat Length - 35'
  • Mounting Position - Vertical
  • Weight - 14lbs

In the Box:

  • Windlass
  • Instruction manual

*Sold as an Individual

  • 35Amp Slow Blow Breaker - Sku 96408
  • Rocker Switch - Sku 94263

Specifications:

  • Chain - Diameter (Inches): .25
  • Freefall: Yes
  • Rope Diameter (Inches): .5
  • Vertical/Horizontal: Vertical
  • Box Dimensions: 8"H x 11"W x 13"L WT: 17.51 lbs
  • UPC: 743683303036

Owner's Manual (pdf)
