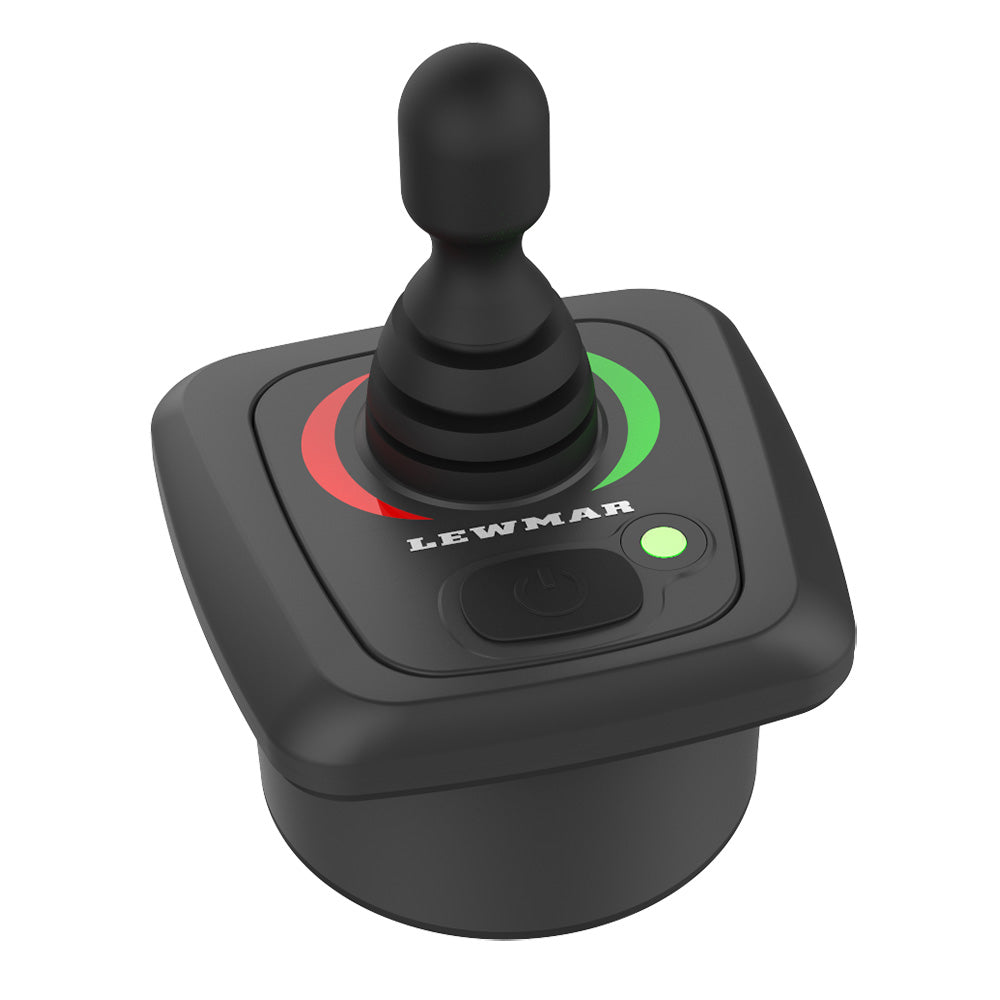

Lewmar Generation 2 Single Joystick Thruster Controller [589268]

Generation 2 Single Joystick Thruster Controller

Lewmar’s range of thruster controls provides superior tactile control of single or dual thruster installations.

The controllers are installed without the need for rear access and feature a snap-on bezel to neatly hide the mounting screws.  A cover is also included, providing additional security against accidental use and giving extra environmental protection.

If replacing a previous generation touch panel, joystick panel, or dual joystick panel, the existing mounting hole and fixing screw positions can be reused.

Compatible with:

• Lewmar TT, RT, SRT & VRT thrusters are fitted with a blue box and can be fitted to thrusters fitted with a black box using a controller adapter.

*Requires Lewmar connecting cable.

Features:

• The ergonomic control ‘pad’ gives tactile feedback
• Membrane switch panel sealed from dust and moisture ingress
• Multi-function LED indicator displays system deployment, thruster operation, low voltage, motor temperature warnings & fault conditions.
• Fit existing cut-out of Lewmar joysticks
• Removable cover

Technical Specifications:

• Power - 12/24 Volt DC
• Cut-out - 2.5" Diameter

*Sold as an Individual
