Lenco 14" x 12" Standard Performance Kit w/o Switch [15038-101]

SKU: 56427
(0)
$1,029.99
-15% $1,206.64 $1,029.99
Out of stock

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

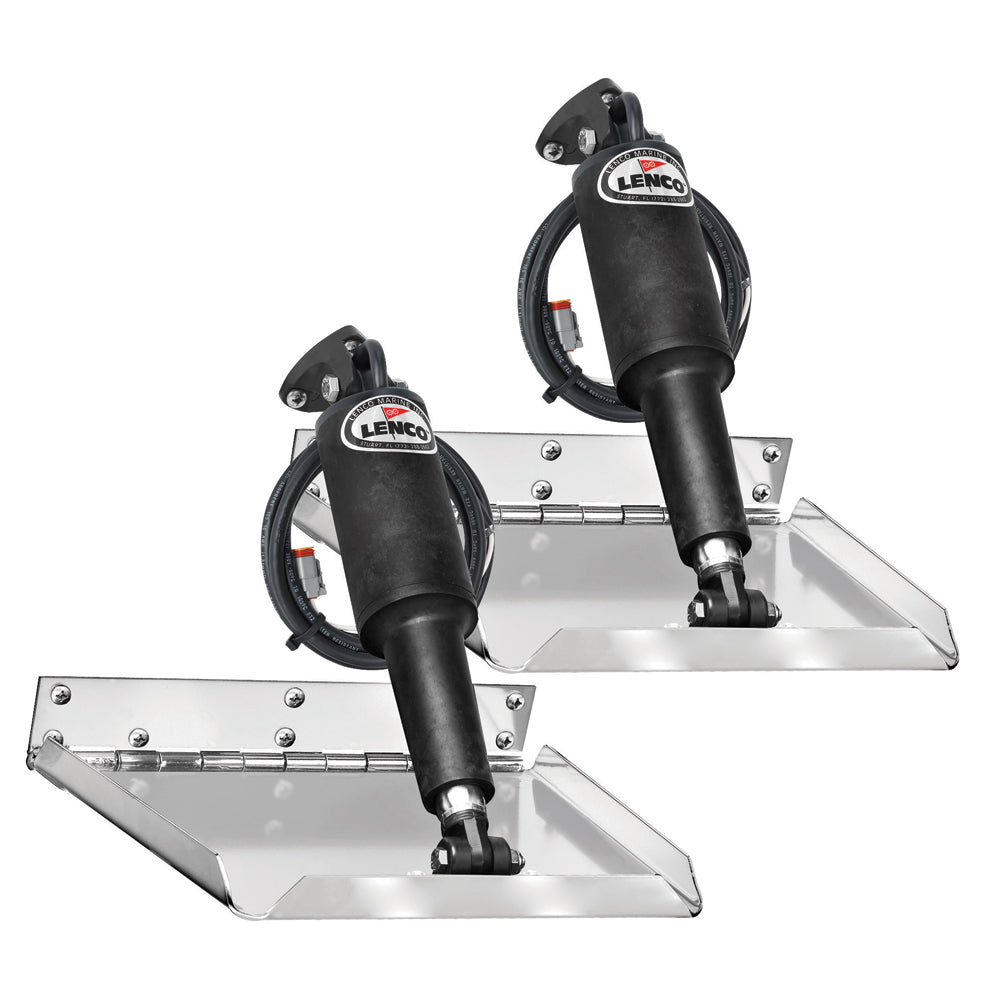

14" x 12" Standard Performance Trim Tab Kit w/o Switch Kit- 12V

Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades

Kit Contents:

  • 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
  • 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
  • 2 each of #30133-103 20' actuator extension wiring harnesses
  • 2 each of #15085-001 (#116) upper mounting bracket with gland seal
  • 2 each of #50014-001 (#119) lower mounting bracket
  • 1 each of the Lenco owner’s / installation manual
  • All necessary stainless steel mounting hardware

Specifications:

  • Suggested Boat Length: 19' to 34'
  • Length of Tab: 14"
  • Width of Tab: 12"
  • Minimum Transom Height: 11"
  • Blades: 12 Gauge Stainless Steel
  • Finish: Electro-Polished
  • Switch Kit: Sold Separately
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Actuators: 12-volt

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Construction: Stainless Steel
  • Box Dimensions: 7"H x 14"W x 25"L WT: 24 lbs
  • UPC: 874847004602
