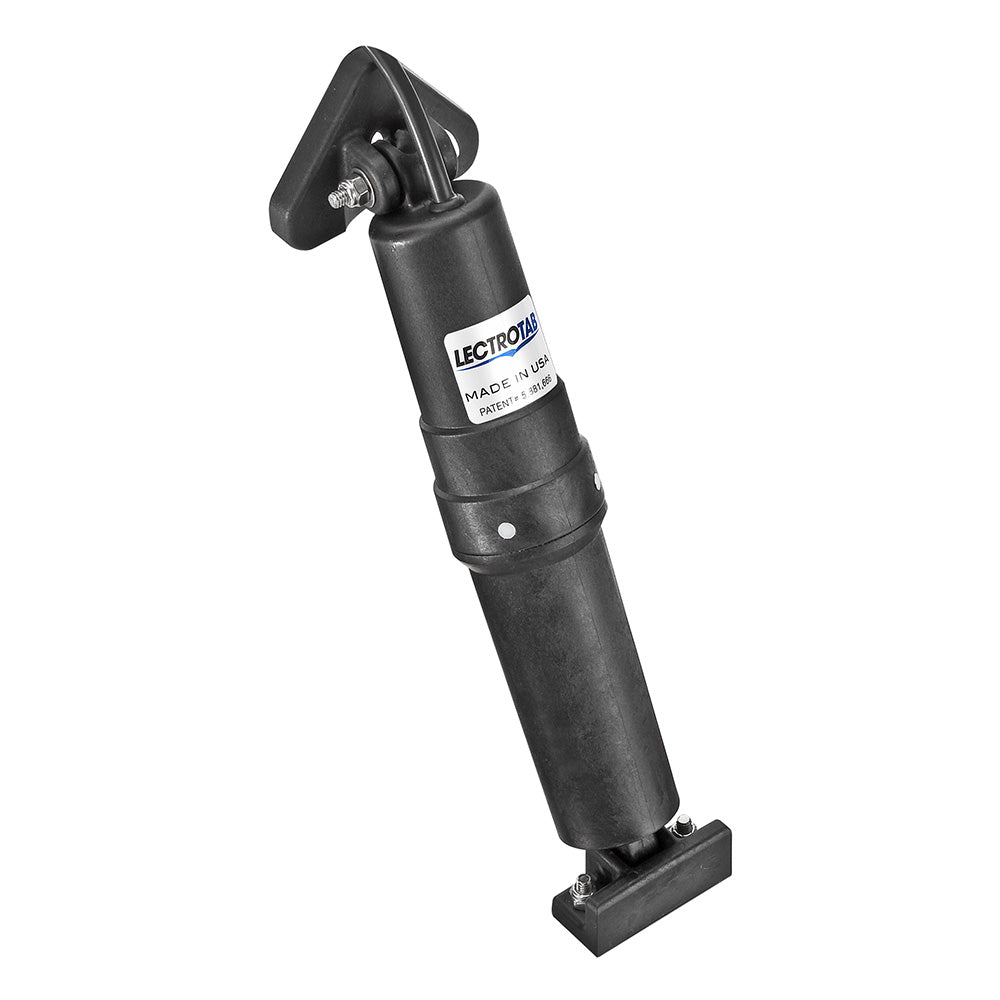

Lectrotab Standard Trim Tab Actuator - 12V - 28' Cable [A-BK-24]

SKU: 113835
(0)
$275.00
Out of stock

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

Standard Trim Tab Actuator - 12V - 28' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.

Features:

  • Actuator DC Voltage - 12V
  • 28' Cable
  • The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
  • Utilizes an internal pressure equalization system
  • Upgrades to the most popular hydraulic and electromechanical systems
  • Internal brake system prevents unwanted tab movement when underway or backing down
  • Quiet operation
  • All actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater

Specifications:

  • Model: A-BK-24
  • DC Voltage: 12VDC
  • Stroke Length: 2.25"/57mm
  • Stroke Speed: 8 sec
  • Distance from Bolt to Pin: 11.5"/292mm
  • Vertical Height (Typical Installation Fully Retracted):11.875"/302mm
  • Cable Length (Feet/Meter): 28'/8.5m
  • Upper Mounting Bracket: Standard
  • Lower Mounting Bracket: Standard
  • Use Actuator with Tabs: All Tabs

*Sold as an Individual
