Lectrotab Joystick LED Trim Tab Control [JLC-11]

SKU: 101159
Regular price $392.70
Regular price -15% $462.00 Sale price $392.70
In stock
Usually ships within 24 hours (1–2 days at most)
Ask an expert!

Not sure it fits? Send us your part number and we'll check. Call 310‑726‑3339 or email us.

Got questions?

For engine parts which show "IN STOCK" & "On backorder", they are available for transfer from our Miami warehouse (3–5 days) or Spain (2–3 weeks).

We advise you get in touch

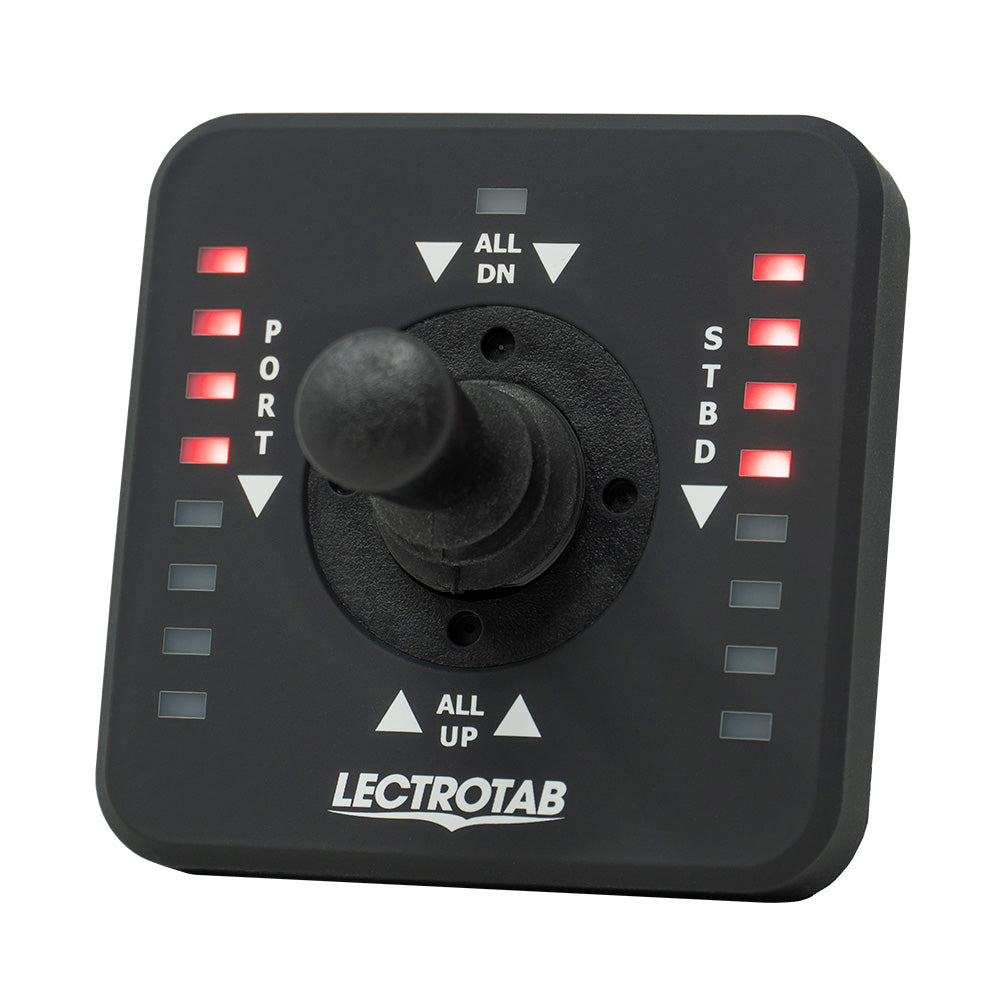

Joystick LED Trim Tab Control

Lectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.

Features:

  • Single “Joystick” control
  • NMEA 2000 compatible
  • LED display of each trim tab position
  • Microprocessor-based trim tab control with LED tab position indicators
  • NMEA 2000 compatible with JLC-NMEA adapter
  • Move both tabs up or down simultaneously with a single motion
  • Dual station ready – just add a second JLC-11 and JR-* cable (sold separately)
  • Automatic return to last tab position if the ignition key is turned off and back on again
  • Completely sealed, completely waterproof, and will not deteriorate in sunlight
  • Automatic tab retraction and calibration with key or accessory switch off
  • Easy upgrade from any of our Lectrotab controls
  • No external power module required
  • LED tab position indicators dim automatically in darkness and brighten in sunlight
  • Single or Dual Actuator per tab
  • Operates on 12 or 24 VDC systems

Specifications:

  • Display Color: Black
  • Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab
  • Overall Width: 3.0"/77mm
  • Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm)
  • Mounting Hole Cutout (Diameter): 2.625"/66.7mm
  • DC Voltage: 12/24
  • Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs
  • Fuse Size Aux. (Must Connect): 1 to 2 AMPs
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
