Lectrotab 12V Heavy Duty Tab Actuator - 6' Cable f/Everglades Boats [A-BK-26]

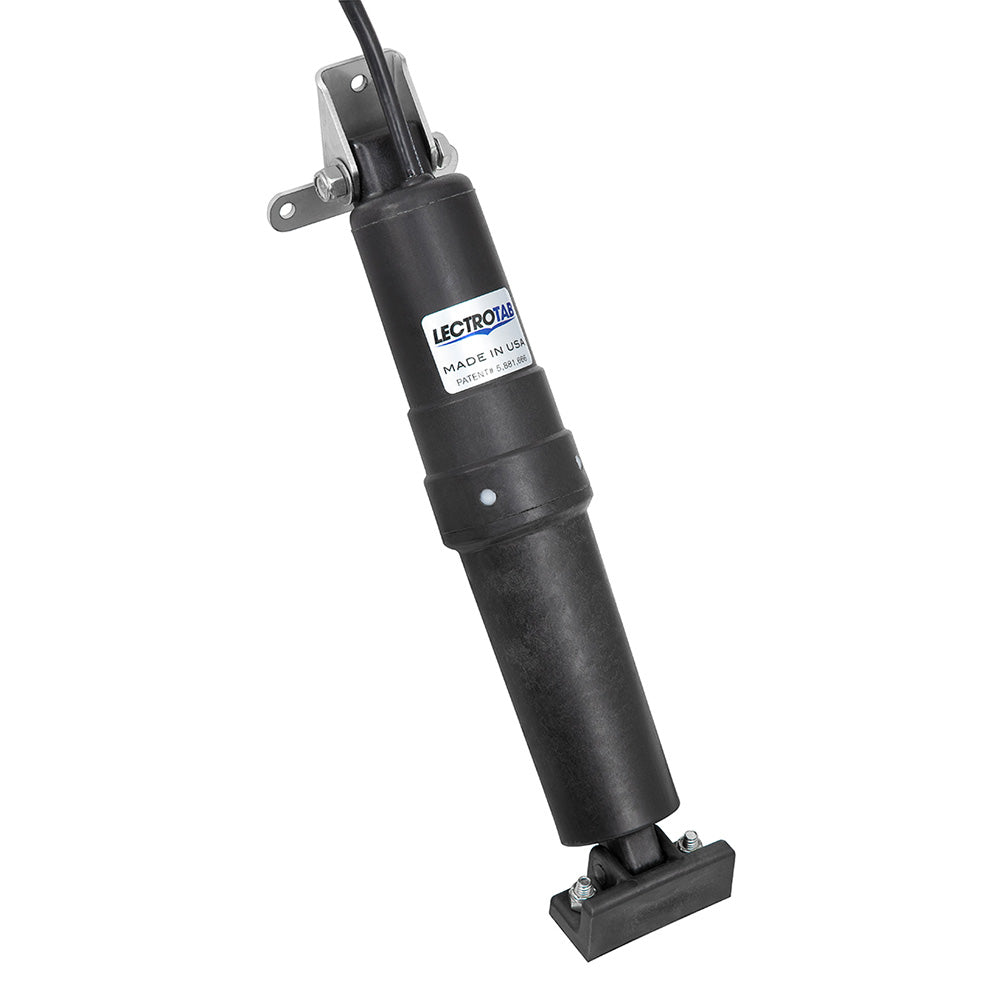

12V Heavy Duty Tab Actuator - 6' Cable for Everglades Boats

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design.

The unit is corrosion-free, ensures precise tab positioning, provides maximum lift force, and is completely self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket.

Compatible With:

• Everglades Boats

Features:

• Reinforced actuator upper mounting boss
• The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
• Utilizes an internal pressure equalization system
• Internal brake system prevents unwanted tab movement when underway or backing down
• Quiet operation
• All actuators are fully load-tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or underwater

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 6' (1.8 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Connectors - Deutsch style

*Sold as an Individual
