Johnson Pump

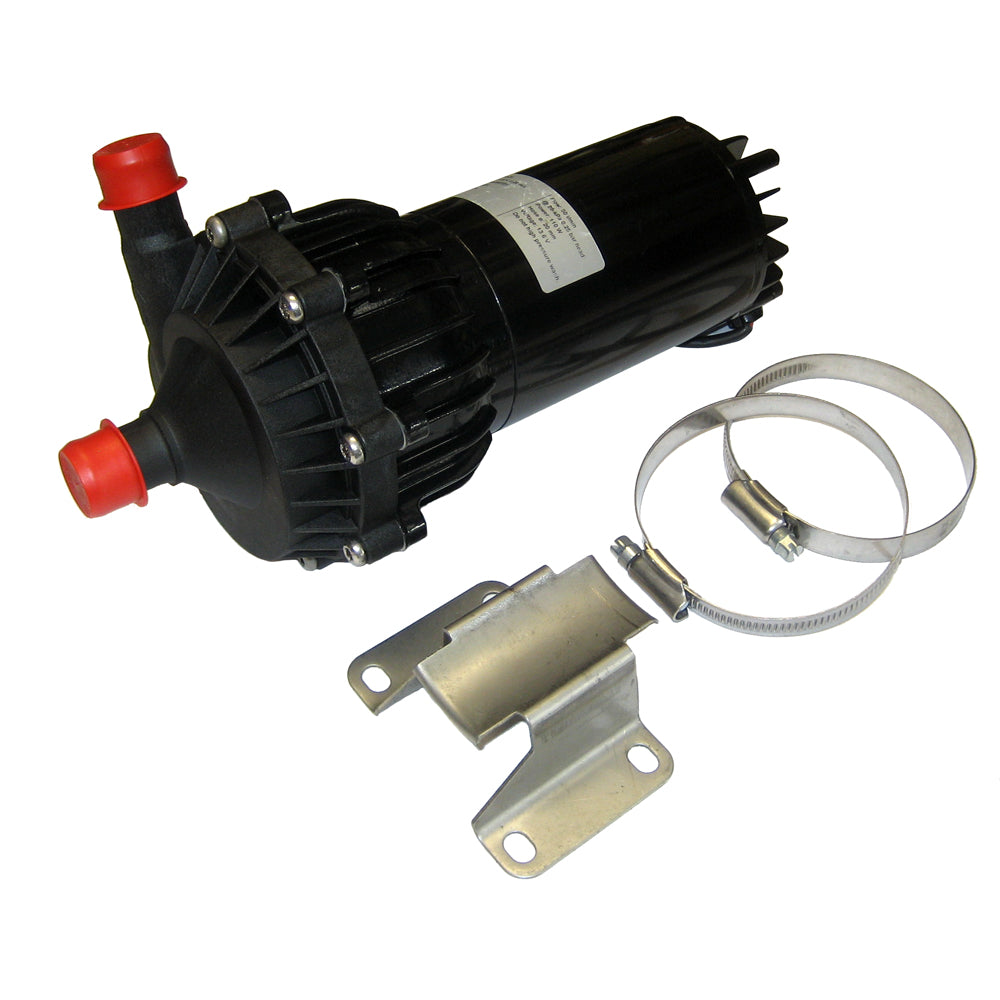

Johnson Pump CM90P7-1 13.6V CIRCULATION PUMP D20 [10-24750-09]

SKU: 58195
(0)
$422.99
-24% $557.72 $422.99
Only 4 left
Low inventory - Hurry up!

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

CM90P7-1 13.6V CIRCULATION PUMP D20

CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.

Specifications:

  • System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar
  • Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water
  • Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor
  • Dry running: 30 minutes
  • Dimensions: 244mm L x 120mm W x 150mm H
  • Weight: 6.6lbs
  • Capacity: 17.2 GPM
  • Ports: 3/4"

Specifications:

  • Gallons Per Minute: 17.2 GPM
  • Volts: 12v
  • Box Dimensions: 6"H x 7"W x 11"L WT: 6.66 lbs
  • UPC: 7330717013172

Most in stock items ship within 1 business day.

For engine parts showin "IN STOCK" as well as "On backorder" this means they are available for transfer from the listed warehouses in Miami (3-5 Day Lead) or Spain (2-3 Week Lead).

We advise you get in touch

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
