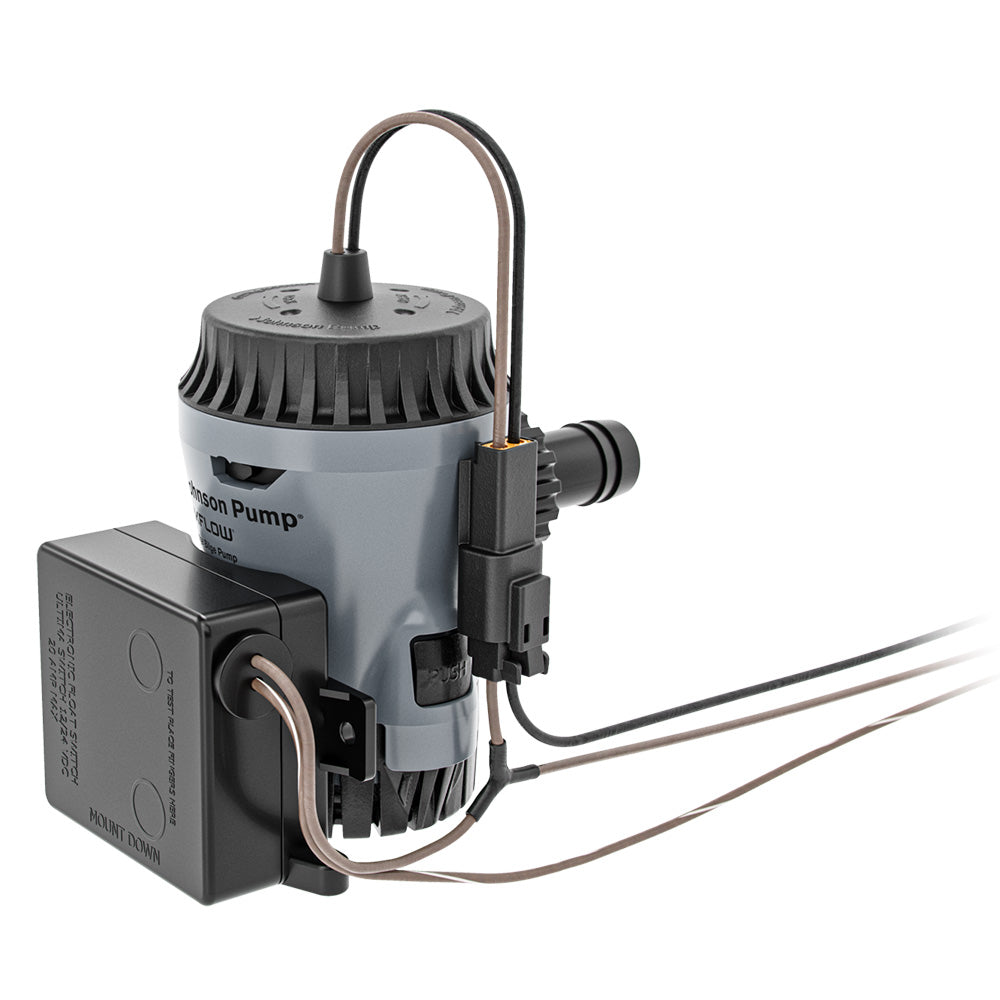

Johnson Pump Aqua Void Ultima Combo 800 GPH Bilge Pump - 12V [10-13636-01]

Aqua Void Ultima Combo 800 GPH Bilge Pump - 12V

With its industry-first quick-change motor connection and new reinforced click-in basket, this bilge pump simplifies cleaning and installation, and it's convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating with Aqua Void.

This pump is combined with the non-clogging electronic Ultima Switch for automatic operation. The electronic automatic Ultima Switch uses the patented Mirus field effect detector cells, which produce micro-electrical fields that detect disruptions caused by the level of water present in the bilge and automatically activate and deactivate the pump.

Experience the Industry-First Quick-Change Motor Connection

Johnson Pump's groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

Take Control of the Boating Experience with Unparalleled Convenience

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Enjoy Enhanced Efficiency and Higher Flow Rate

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Trust in Reliable Performance Under Demanding Conditions

Johnson Pump Marine is renowned for its industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.

Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance the boating experience. Get the Aqua Void today!

Features:

• Heightened efficiency with an increased flow rate - high-flow impeller design
• Quick-change motor connection enjoys quick and hassle-free cartridge motor changes or capacity upgrades. Industry-first and only cartridge motor pump with included harness connection requiring no cutting and splicing of wires
• Water-cooled motor for long service intervals
• Compact, all-in-one motor/Impeller unit with stainless steel (316) Shaft
• No tools are needed for maintenance, and no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
• Easy-to-install dura-port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
• Include both a straight and a 90-degree smooth elbow dura-port, as well as a removable check valve
• Meets the international standard, ISO 8849 marine
• Molded T-Slot - Easy Installation with Switches
• This cartridge pump is combined with the Ultima switch for automatic operation

Specifications:

• Pump Size: 800 GPH
• Capacity Straight (12V): 785 GPH (50 I/min)
• Voltage: 12V
• Amp: 3.7A
• Fuse: 5A
• Hose Connection: 3/4 in.
• Wire Size: 16 GA, TAC
• Weight: 18.5 oz (0.52 kg)
• Body: ABS
• Dura Port: PA66/GF - Nylon
• Shaft: 316 Stainless Steel
• Shaft Seal: Nitrile Rubber
• Motor Cartridge: PC-ABS
• Pump Dimensions (W x H x L): 2.95 x 4.69 x 6.63 inches (75 x 120 x 168 mm)

Specifications:

• Gallons Per Hour: 800 GPH
• Operation: Automatic
• Outlet Size: 3/4"
• Type: Electric
• Volts: 12v
• Box Dimensions: 4"H x 6"W x 6"L WT: 1.2 lbs
• UPC: 7330717017941
