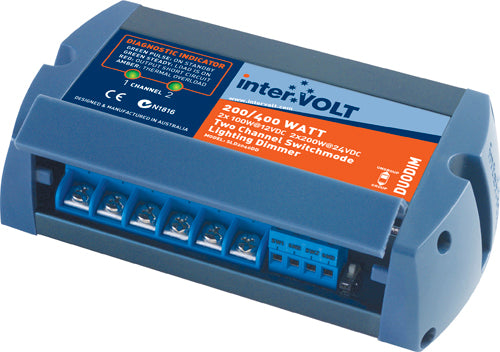

INTERVOLT DUODIM 2-CHANNEL, SWITCHMODE DIMMER

Intervolt SLD DuoDim 2-Channel Switchmode Dimmer, 9-33VDC, 16.5A, for dimming two lighting circuits from one single device using multiple momentary push-button switches.<br /> <br /> Designed for 12V and 24V DC lighting circuits; the Intervolt SLD DuoDim model is a true two channel DC dimmer with separate control and monitoring for each circuit but can also be combined (grouped) to form a single circuit dimmer. For detailed information, download the product sheet and the installation instructions located on the right side of this page. Like the standard Intervolt SLD Switchmode dimmer, this model is enclosed in a sleek, thermally-efficient marine-grade housing featuring a heavy duty corrosion resistant terminal block with insulated barriers to prevent shorting. A mode selector switch allows the installer to change the control of the dimmer from two independent channels to two combined channels. In UNGROUP mode the total power output of the DuoDim is equally divided between the two channels. In GROUP mode the two channels can be combined and controlled with one switch only thereby using the total power of the whole dimmer as one. Thus the DuoDim is truly two dimmers in one!<br /> <br /> These marine lighting dimmers are controlled by an "normally-open" single pole single throw momentary switches (any brand).<br /> <br /> <span class="main"></span>

Most in stock items ship within 1 business day.

For engine parts showin "IN STOCK" as well as "On backorder" this means they are available for transfer from the listed warehouses in Miami (3-5 Day Lead) or Spain (2-3 Week Lead).

We advise you get in touch

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
