i2Systems LightLink Marine Dimming Module [LL-101]

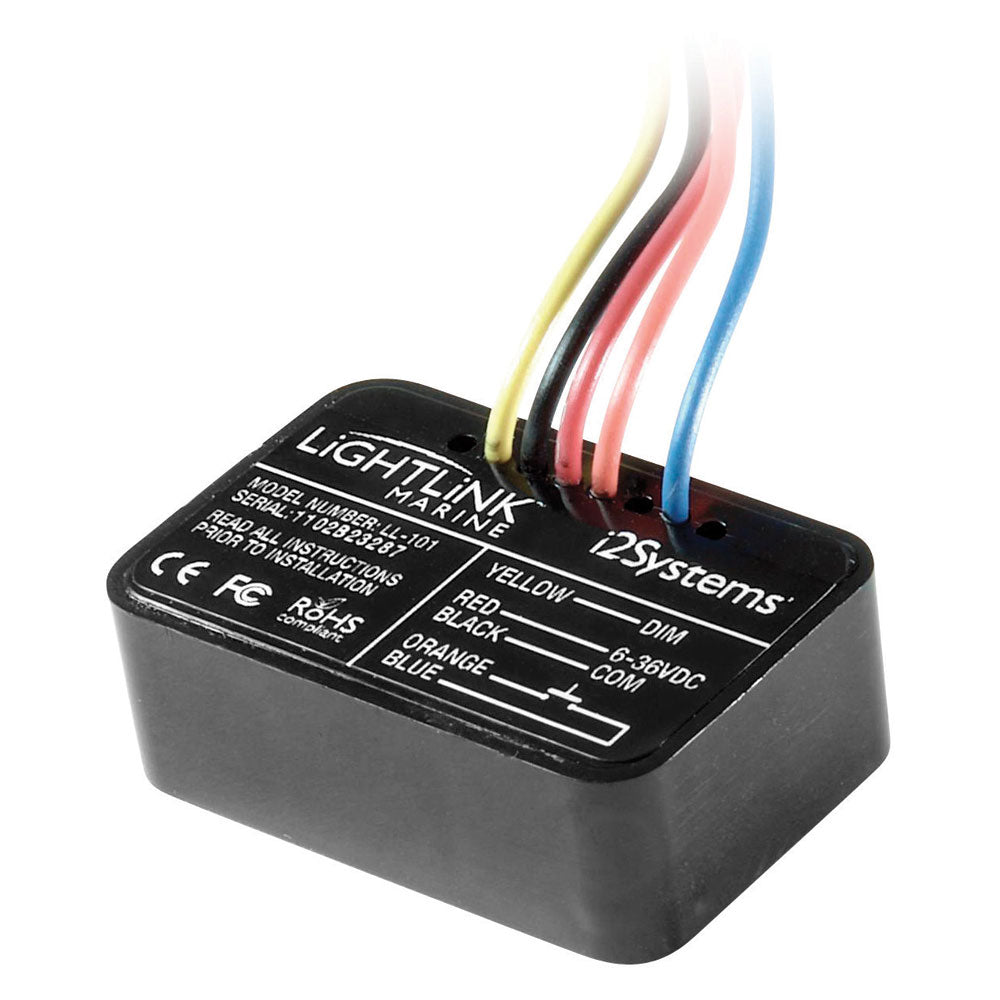

LightLink LL-101 Marine Dimming Module
Part #: LL-101

Operation is simple! Press and hold the momentary switch to initiate dimming cycle. Dimming cycle continues to dim as long as switch is engaged, ranging from 100% to approximately 5% intensity holding 2 seconds at each position before dimming the opposite direction. Briefly press and release momentary switch for on/off operation.

Specifications:

• Input Voltage: 6-36 Volt DC

• Dimensions: Width: 1.5" x Height: 0.5" x Depth: 1.0"

• Compatible with i2Systems Apeiron, Ember and Profile lights

• Dimming control via a momentary switch or contact

• Small size, encapsulated, fits into most switch boxes

• Apeiron A1110

• Apeiron A2162

• Ember E1150

• Profile P1100

• S-Line S1200

Specifications:

• Type: Parts
• Box Dimensions: 2"H x 4"W x 4"L WT: 0.4 lbs
