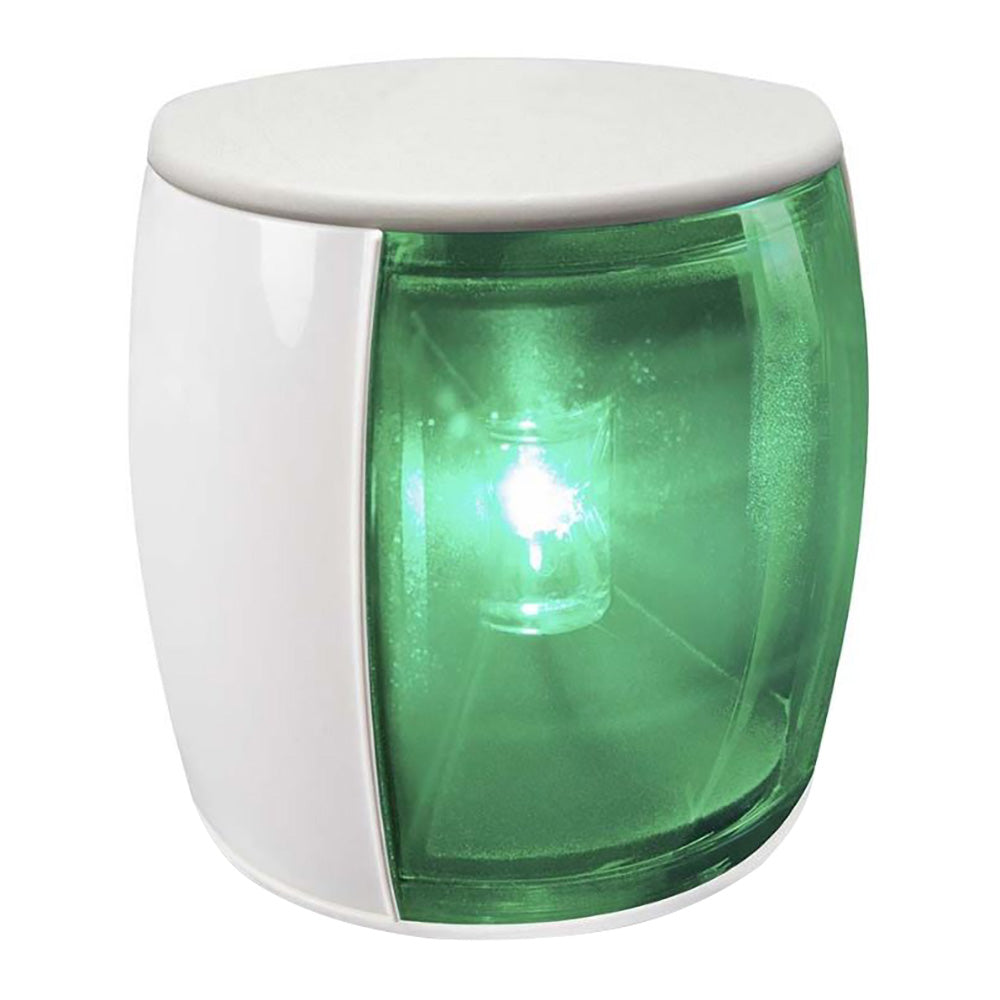

Hella Marine NaviLED PRO Starboard Navigation Lamp - White - 3NM [017461111]

SKU: 103881
(0)
$209.99
-7% $224.64 $209.99
Only 5 left
Low inventory - Hurry up!

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

NaviLED PRO Starboard Navigation Lamp - White - 3NM

This NaviLED Starboard lamp covers vessel requirements over 50m.

Hella Marine takes navigation lighting very seriously. Often a grudge fitment to comply with the rules, this light is essential when navigating at night.

All Hella marine products are designed with components that suppress possible interference, both emissions and susceptibility to emissions, to the limits prescribed in international standards. This prevents interference with radio, communication, navigation, and other electrical equipment on board.

Hella marine lamps are rated IP67 and completely sealed. UV from the sun, corrosive salt air, and constant vibration: these lamps are impervious to the marine environment.

With ultra-low power consumption from the highly efficient LED light source, this lamp also provides exacting light intensity across a wide range of voltage inputs, from 9V DC to 32V DC.

Made in New Zealand and fully supported by Hella Marine's 5-year warranty for peace of mind.

Specifications:

  • Lamp Type: Starboard Navigation
  • Dimensions (W x H): 3.43 x 3.54 inches (87mm x 90mm)
  • Lamp Color: White
  • Material Description: Hi-impact-resistant acrylic lens
  • Minimum Visible Distance: 3 nautical miles (powerboats only)
  • Cable: Pre-wired with 2.5m of tinned marine cable
  • Operating Voltage: Multivolt 9-33V DC for 12/24V applications
  • Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -500 volts
  • Power Consumption: <2W (0.17A@12V / 0.09A@ 24V DC)
  • Degree of Protection: IP67 (completely sealed)
  • Weight: 250g (including cable)
  • Approvals: IMO Col Reg 72, RINA, USCG, ABYC C-5, RCM, Maritime NZ

Specifications:

  • Housing: White
  • Lens Color: Green
  • Visible Range (Miles): 3nm
  • Voltage - Input Range (Volts): 9-33v
  • Box Dimensions: 4"H x 4"W x 6"L WT: 0.8 lbs
  • UPC: 9416325253365

Owner's Manual (pdf)
