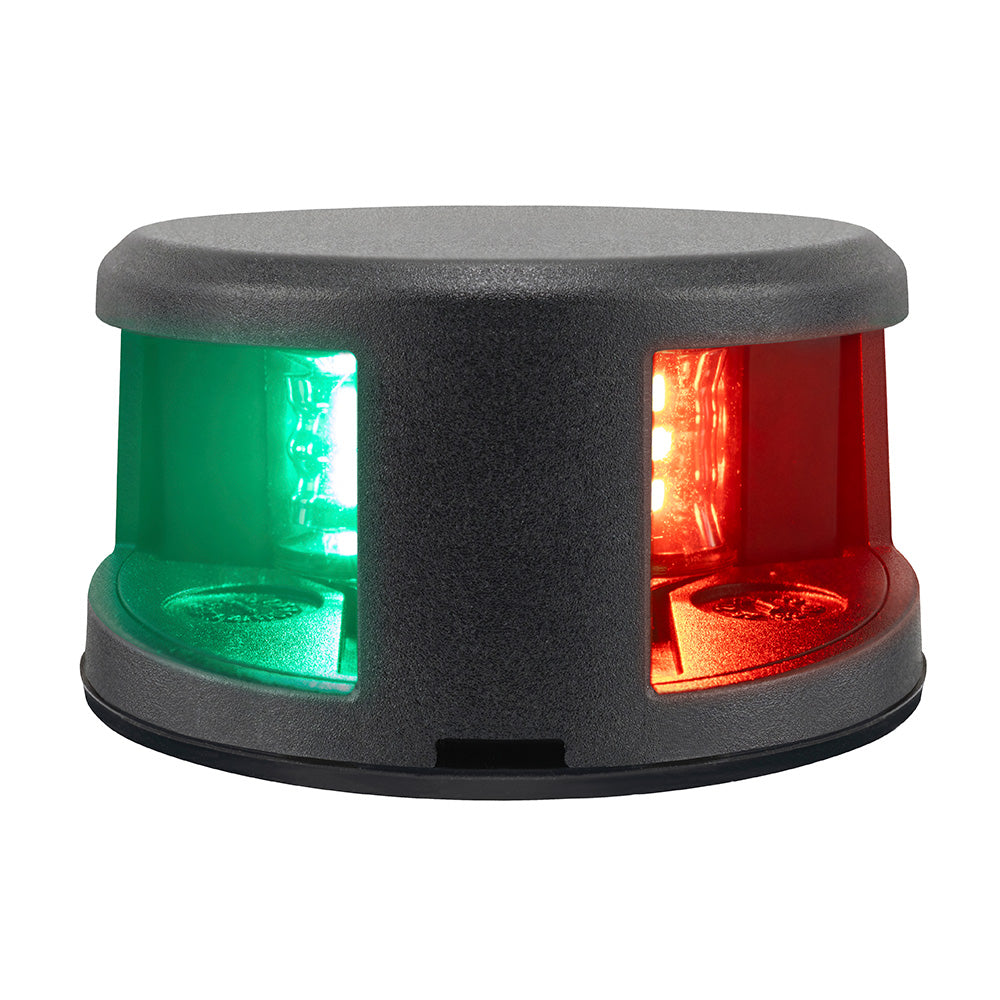

NaviLED Gen II Bi-Color Deck Mount Navigation Lamp - Black

The NaviLED Compact Deck Lamp reflects Hella marine’s commitment to continuous improvement and full compliance with international standards. This more compact, refined design features clean lines with no visible fasteners once installed, along with an optional stainless steel bezel for a premium finish.

NaviLED Compact Deck Mount lamps comply with the latest American Boat and Yacht Council (ABYC) standards, support vessel requirements up to 20m (65ft) LOA, and bring together multiple certifications across the range to deliver the highest level of compliance.

The lamp’s Multivolt circuitry further enhances safety, maintaining the required 2NM minimum visibility even when system voltage drops to as low as 9V.

Hella Marine lamps are IP67-rated and fully sealed. UV from the sun, corrosive salt air, and constant vibration: these lamps are impervious to the marine environment.

Designed with components that suppress possible interference, both emission as well as susceptibility to emissions, to the limits prescribed in international standards. This prevents possible interference with radio, communication, navigation, and other electrical equipment on board

Features:

  • Mounting: Horizontal surface mount, two-hole screw mount, no visible fasteners
  • Visibility: 2NM Powerboat (Port & Starboard), 2nm Powerboat (Bi-Color)
  • Lens Material: High-impact and UV-resistant acrylic
  • Operating Voltage: Multivolt 9–32V DC for 12 / 24V DC applications
  • Voltage Protection: Reverse polarity protected
  • Power Consumption: Port and Starboard < 2W combined, Bi-Color < 2W
  • Cable: 120mm of tinned marine cable
  • Protection: IP67, IP69 (Completely Sealed), Suitable for submersion in operation and high-pressure water jet cleaning
  • 5 Year Warranty
