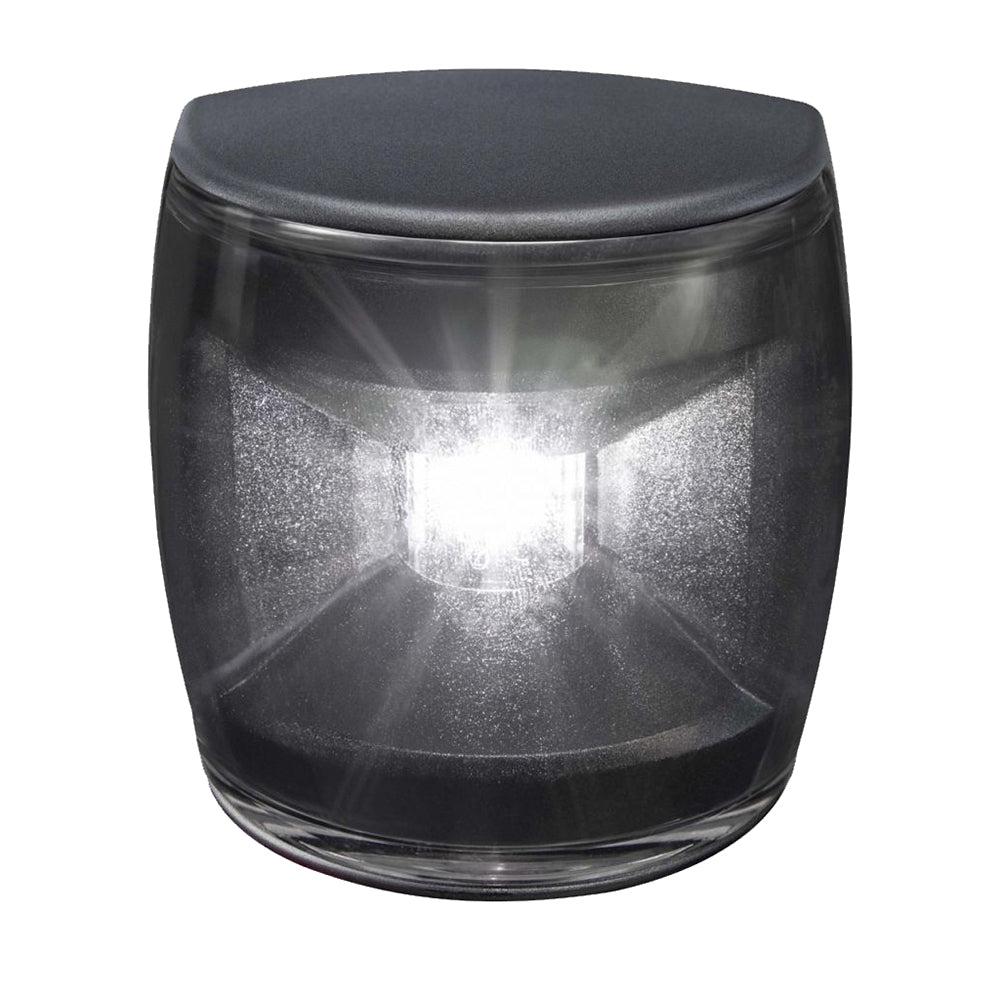

Hella Marine 3nm NaviLED PRO Stern Navigation Lamp - Black [017462101]

SKU: 105587
(0)
$218.99
-7% $234.30 $218.99
Out of stock

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

3nm NaviLED PRO Stern Navigation Lamp - Black

Hella Marine NaviLED products are the leaders in the marine navigation signal lighting industry, having established an enviable reputation for superior light control and reliability.

NaviLED PRO Port, Starboard, Masthead, and Stern lamps cover vessel requirements over 50m.

Hella Marine takes navigation lighting very seriously. Often a grudge fitment to comply with the rules, these lights are extremely important when navigating at night.

All Hella Marine products are designed with components that suppress possible interference, both emission as well as susceptibility to emissions, to the limits prescribed in international standards. This prevents possible interference with radio, communication, navigation, and other electrical equipment on board.

Hella Marine lamps are rated at IP67 and completely sealed. UV from the sun, corrosive salt air, and constant vibration: these lamps are impervious to the marine environment.

Ultra-low power consumption from the highly efficient LED light source, these lamps also provide exacting light intensity across a wide range of voltage inputs from 9V DC to 32V DC.

Specifications:

  • Material Description: High-impact and UV-resistant acrylic
  • Minimum Visible Distance: 3 Nautical Miles (Yachts and Powerboats)
  • Cable: 2.5m of tinned marine cable
  • Operating Voltage: Multivolt™ 9–33V DC for 12 / 24V DC applications
  • Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -500 volts
  • Power Consumption: <2W (0.17A@12V / 0.09A@ 24V DC)
  • Degree of Protection: IP67 - Completely Sealed
  • Weight: 250g (including cable)
  • Compliance: IMO Col Reg 72, USCG, ABYC C-5, RCM, Maritime NZ
  • NaviLED PRO is now compliant with ABYC C-5
  • Made in New Zealand and fully supported by Hella Marine's 5-year warranty, for complete peace of mind

Owner's Manual (pdf)
