Garmin Transom Mount Depth/Temp 50/200kHz - 8-Pin [010-10272-10]

Transom Mount Depth/Temp 50/200kHz - 8-Pin

This plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units.

The 500 W 8-pin transducer has a maximum depth of 1,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70 degree transom.

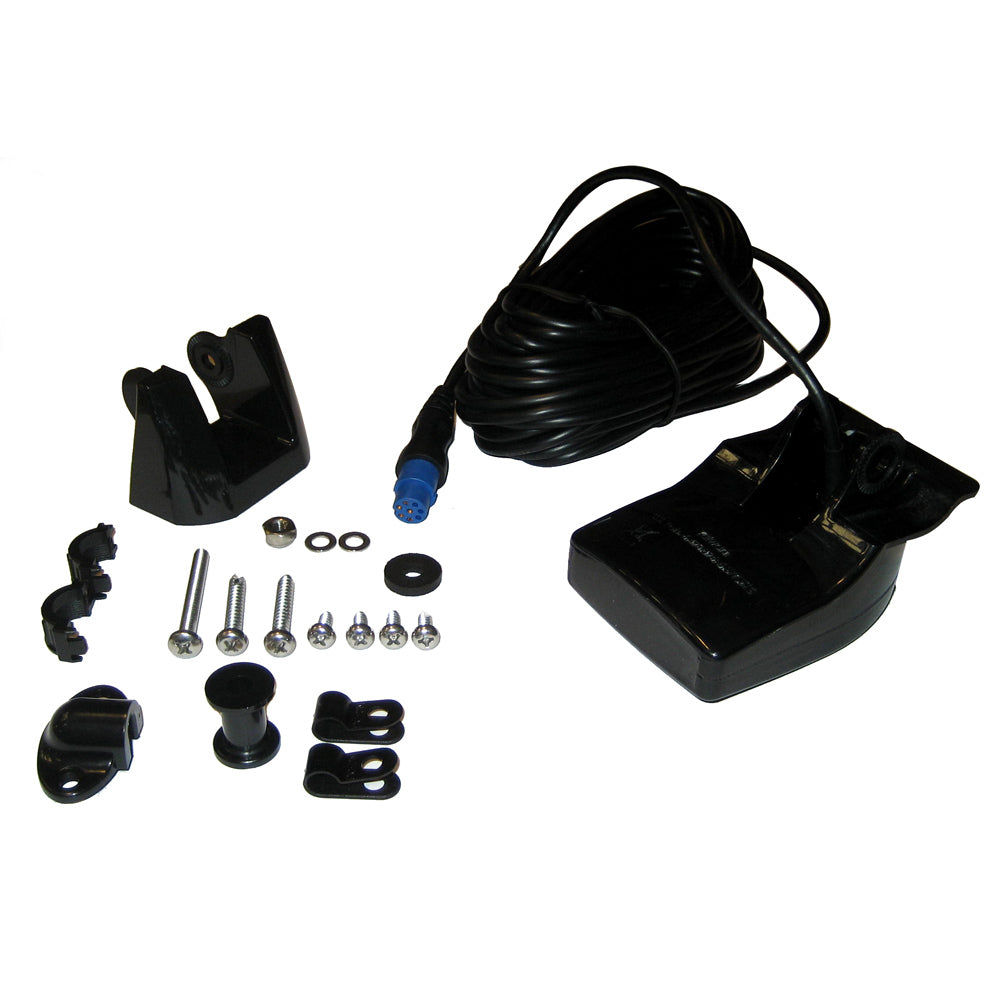

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Transom
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Pins: 8
• Box Dimensions: 3"H x 6"W x 7"L WT: 1 lbs
• UPC: 753759975364
