Garmin SmartDrive Autopilot Actuator f/Sailboats [010-02794-12]

SKU: 115789
(0)
$3,499.99
Out of stock

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

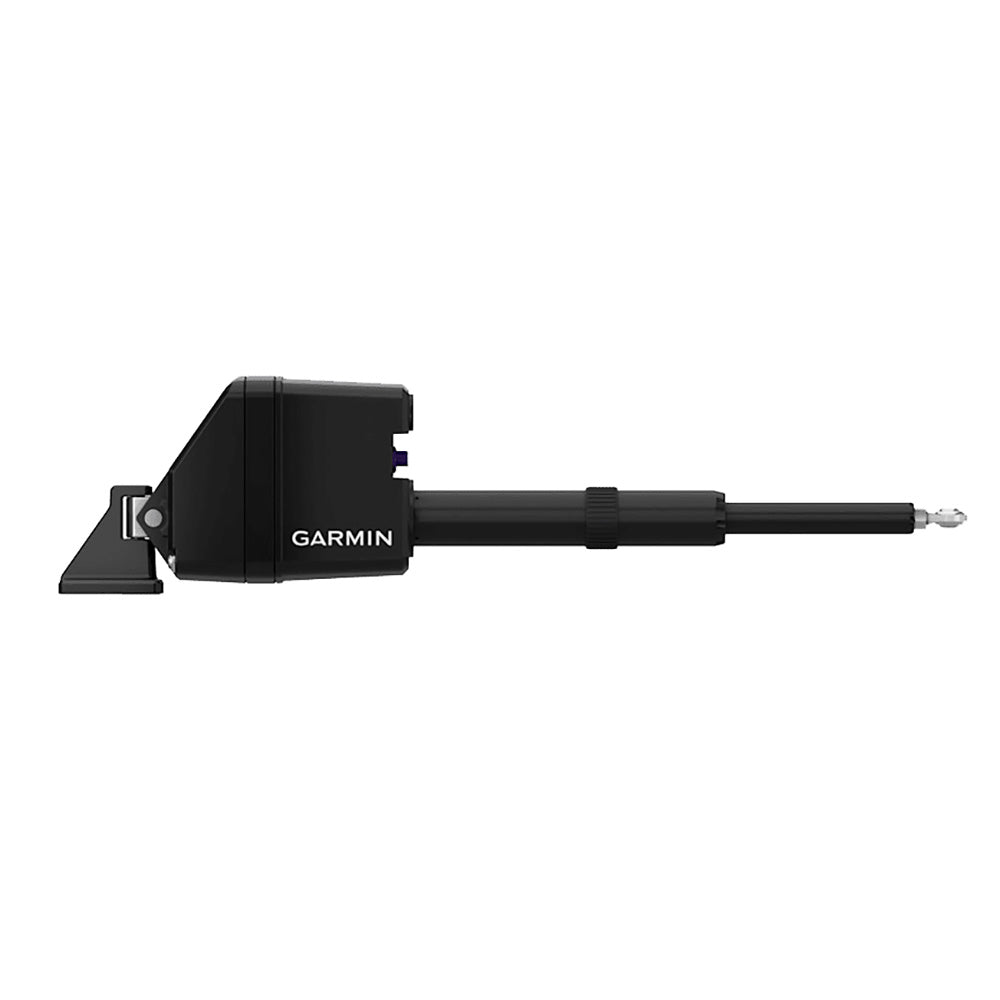

SmartDrive™ Autopilot Actuator for Sailboats

The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.

Features:

  • BUILT-IN ECU FULLY ENGINEERED AND MADE BY GARMIN
  • PREMIUM AUTOPILOT PERFORMANCE WITH MAXIMUM THRUST UP TO 1,050 LBS
  • CONTACTLESS RUDDER POSITION SENSOR FOR SUPERIOR RELIABILITY AND FEWER MOVING PARTS
  • SIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT
  • USER-ADJUSTABLE MAX FORCE OUTPUT SUITS A WIDE RANGE OF VESSELS
  • MORE ACCURATE TACK AND GYBE WITH ADJUSTABLE SPEED, AUTO RESPONSE, AND IMPROVED UPWIND HOLD

FITS YOUR VESSEL

The brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).

SMARTDRIVE ACTUATOR

This product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.

Specifications:

  • Drive unit type: Mechanical linear
  • Maximum boat displacement: 33,000 lbs (15,000 kg)
  • Stroke length: 12" (300 mm)
  • Maximum thrust (adjustable software setting): High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg)
  • Dimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
  • Weight: 19.8 lbs (9 kg)
  • Supply voltage: 10 to 32 Vdc
  • Average typical current at 12 V: 0.8 to 5 A, depending on conditions
  • Peak momentary current: 25 A
  • Lock-to-lock time: 11 seconds
  • Operating temperature: -20° to 55° C (-4° to 131° F)
  • Water ingress: IPX7

In The Box:

  • SmartDrive™ actuator
  • Mounting hardware
  • Documentation
