Garmin Reactor 40 Mechanical/Retrofit/Solenoid Corepack w/GHC 50 Autopilot Instrument Pack [010-02794-02]

Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack with GHC™ 50 Autopilot Instrument Pack

Every Captain Needs a Co-Pilot. Designed for powerboats, this Reactor 40 mechanical/retrofit/solenoid corepack and GHC™ 50 display give you the extra hand you need, so you can explore paradise worry-free.

Features:

• This Reactor 40 corepack is the perfect companion for your mechanical/retrofit/solenoid steered system.
• Choose between class A, class B compact, or class B drive units for your steering system (sold separately).  All Garmin linear drives include built in rudder feedback sensing.
• Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.
• Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
• You just want to get on the water, so we made calibration fast and easy. That’s the power of simplicity.
• Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
• Want more? The optional GHC™ 50 autopilot and/or GRF™ 10 Sensor enhances your autopilot experience.

Technical Specifications - ECU/CCU:

• CCU dimensions - 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
• ECU dimensions - 6.6" x 4.6" x 2.1" (16.8 x 11.7 x 5.3 cm)
• Supply voltage - 10 to 30 V
• Operating temperature - from -15° C to 60 C° (5° F to 140° F)

Technical Specifications - Buzzer/Alarm:

• Dimensions (L × Diameter) - 29/32" × 1" (23 mm × 25 mm)
• Weight - 2.4 oz (68 g)
• Temperature range - from 5°F to 131°F (from -15°C to 55°C)
• Cable length- 10' (3.0 m)

Technical Specifications - GHC™ 50:

• Dimensions (H x W x D) - 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)
• Display Type - 800 x 480 WVGA
• Display Size - 5" (12.7 cm)
• Touch Display - Yes
• Knob Control - With GRID 10/20
• Remote Control via ANT+® Connectivity - Yes
• Wi-Fi Connectivity - Yes
• NMEA 2000 Networking - Yes
• Ethernet - Yes

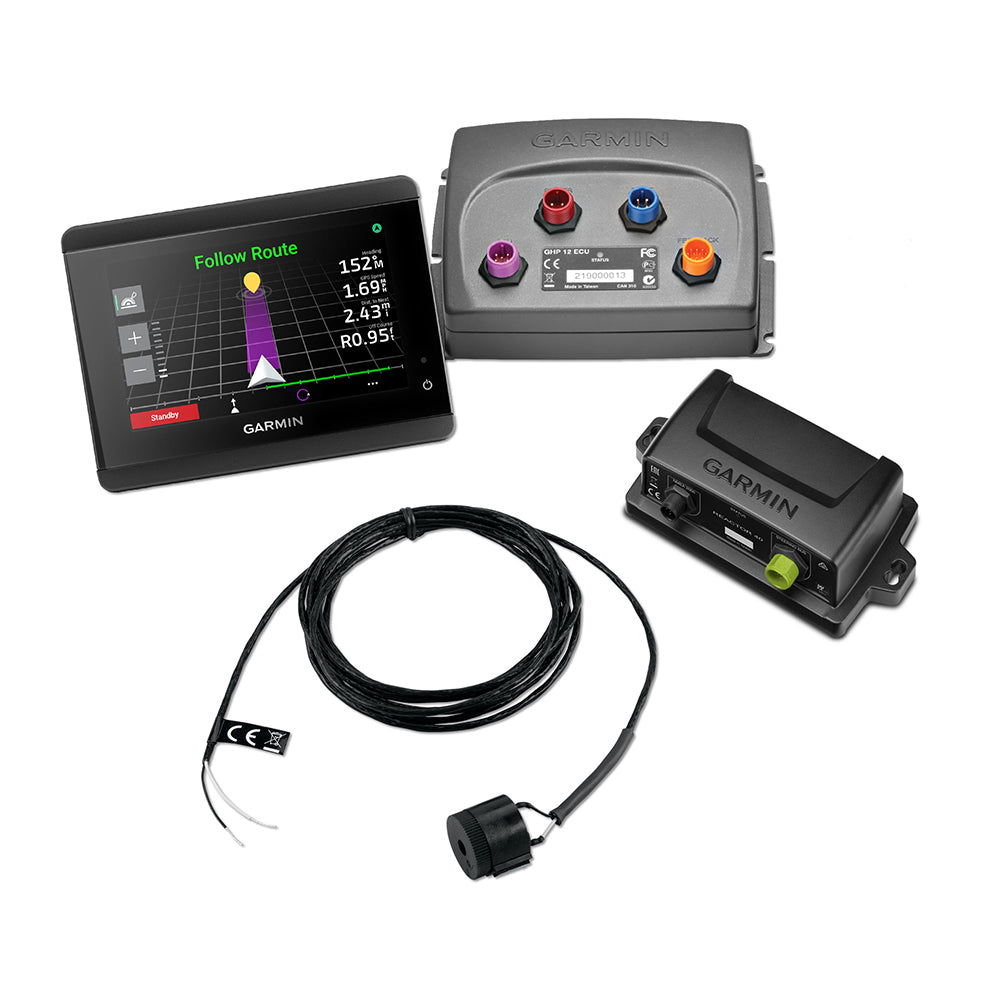

What's in the Box?

• Reactor 40 CCU (Course Computer Unit)
• GHC™ 50 Marine Autopilot Display
• ECU (Electronic Control Unit)
• ECU power cable
• Interconnect cable
• Buzzer
• NMEA 2000® drop cables (2 meters)
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation

*Sold as an Individual
