Garmin ECHOMAP UHD 94sv w/GT54UHD-TM Transducer *Remanufactured [010-N2343-51]

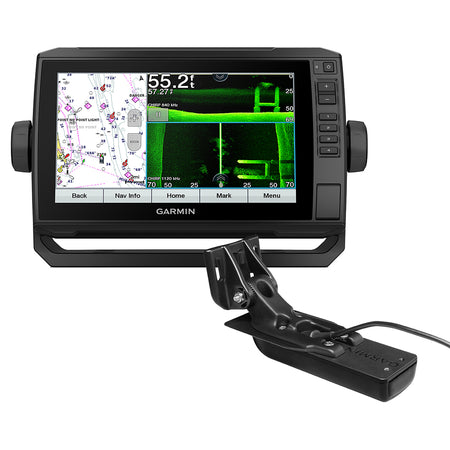

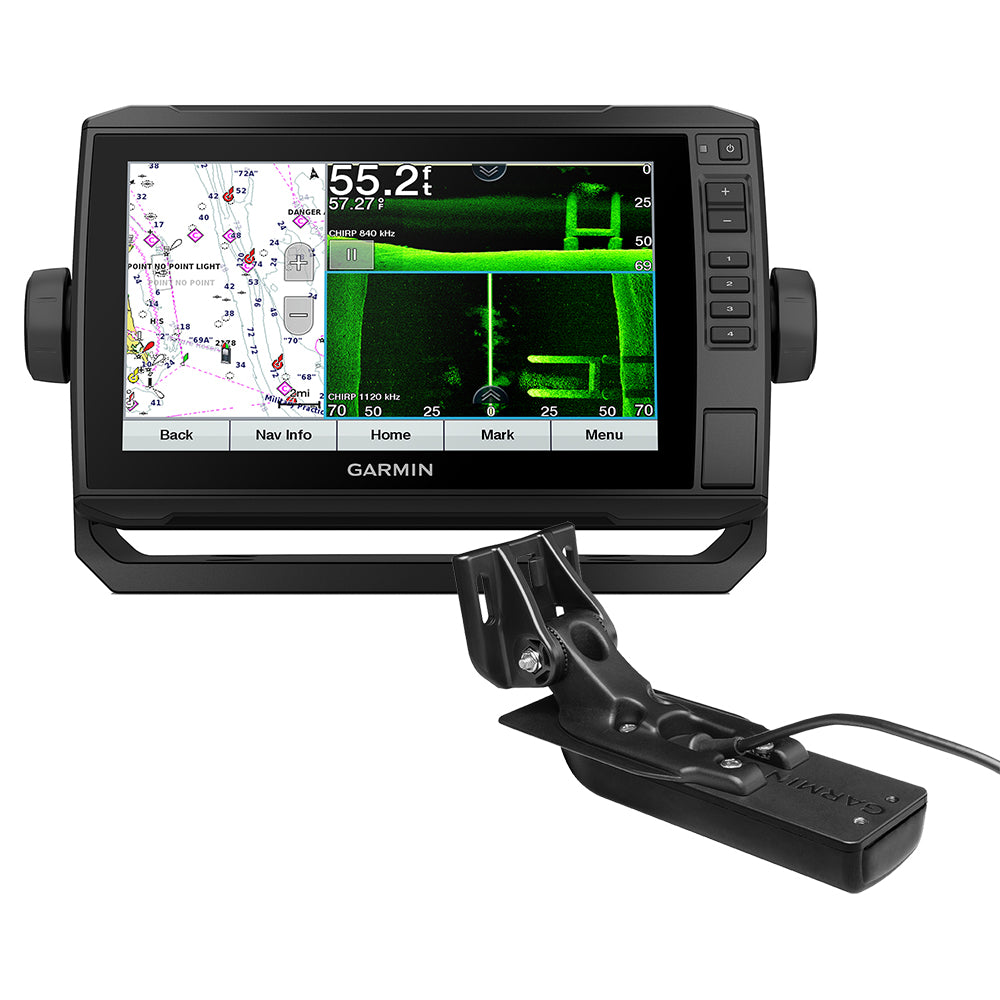

ECHOMAP™ UHD 94sv with GT54UHD-TM Transducer *Remanufactured

Find more fish using the ECHOMAP™ UHD 94sv combo with a bright, sunlight-readable 9” touchscreen with keyed assist. The optional GT54 transducer provides Ultra High-Definition ClearVü and SideVü scanning sonars, so you get crystal-clear images of what is around and below your boat, and Garmin high wide CHIRP traditional sonar delivers remarkable target separation. It comes preloaded with BlueChart® g3 coastal charts with the best of Garmin and Navionics® data. It features a quick-release bail mount, making it easy to remove and take with you. NMEA 2000® and NMEA 0183 network support provides you with engine data, sensor connections, autopilot integration, and more. ECHOMAP™ UHD 94sv is even compatible with the Force™ trolling motor for full control of the motor from the screen, plus the ability to route to waypoints, follow tracks, and more.

Features:

• Bright, sunlight-readable 9” touchscreen with keyed assist
• Includes transducer for Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonars and Garmin high wide CHIRP traditional sonar
• Preloaded BlueChart® g3 coastal charts with integrated Navionics® data
• Supports Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar
• Sonar sharing capabilities with other ECHOMAP™ Plus, ECHOMAP UHD, and ECHOMAP Ultra units
• NMEA 2000® and NMEA 0183 network support for autopilot and engine data
• Quick-release bail mount for fast and easy mobility
• Compatible with Force™ trolling motor for full control of the motor from the screen, plus the ability to route to waypoints, follow tracks, and more

Included Transducer

GT54 transducer for Ultra High-Definition ClearVü and SideVü scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

Sonar Support

This chartplotter supports a variety of Garmin transducers, including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

Preloaded Charts

Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data that covers more than 17,000 lakes with up to 1’ contours.

Quickdraw Contours

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

NMEA 2000® & NMEA0183 Networks

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS, and more from one screen.

ActiveCaptain® App

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications¹, software updates, Garmin Quickdraw™ Community data, and more.

Network Capable

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data, and charts — among them (7” and 9” models only).

Force™ Trolling Motor Capability

Take control of the most powerful and efficient trolling motor available², route it to waypoints, follow tracks, and more from the screen of your chartplotter.

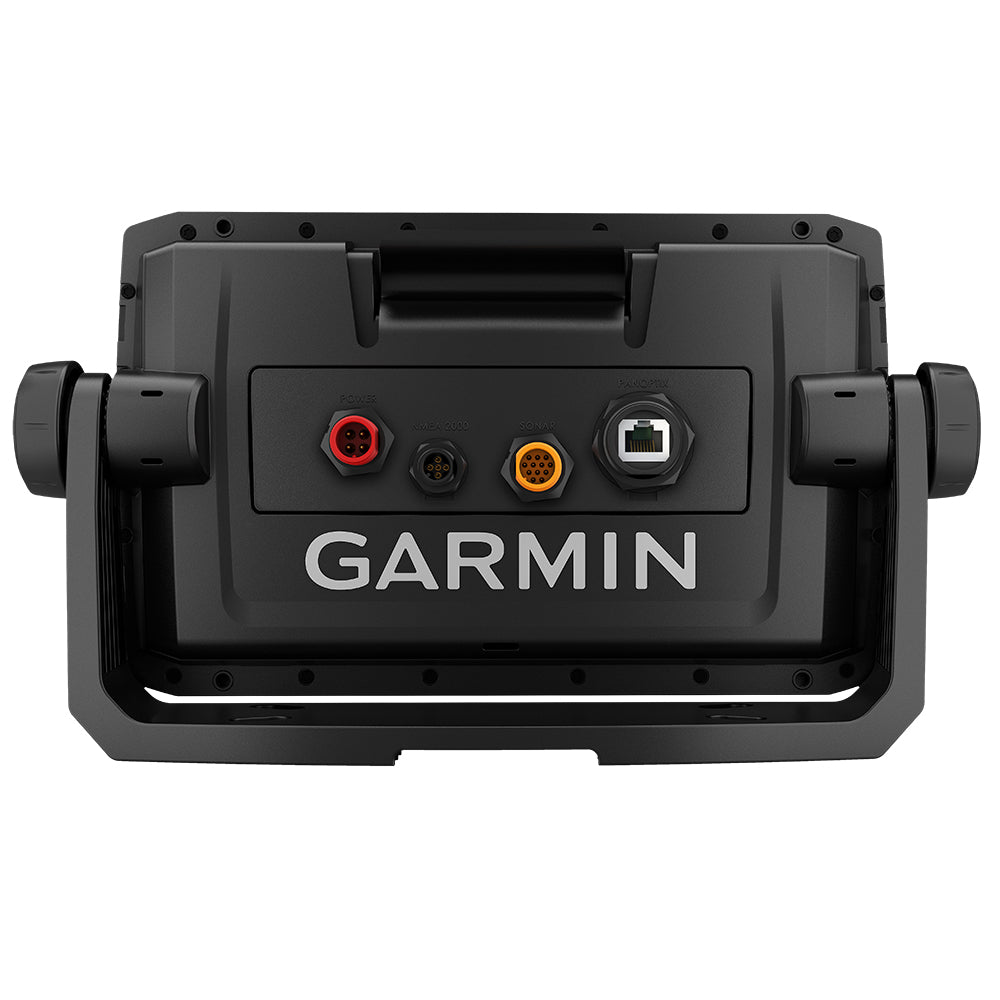

Connections:

• Garmin Marine Network Ports: 1
• NMEA 2000 Compatible: Yes
• Transducer Pin Numbers: 12
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports: None
• Video Output Ports: None
• Wireless Connectivity: Yes

What's In The Box?

• ECHOMAP UHD 94sv with BlueChart g3 for U.S.
• GT54UHD-TM transducer
• Power/data cable
• Tilt mount with quick-release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation

¹ When paired with a compatible smartphone

² In compliance with ISO standard 13342

Wi-Fi is a registered trademark of the Wi-Fi Alliance.
