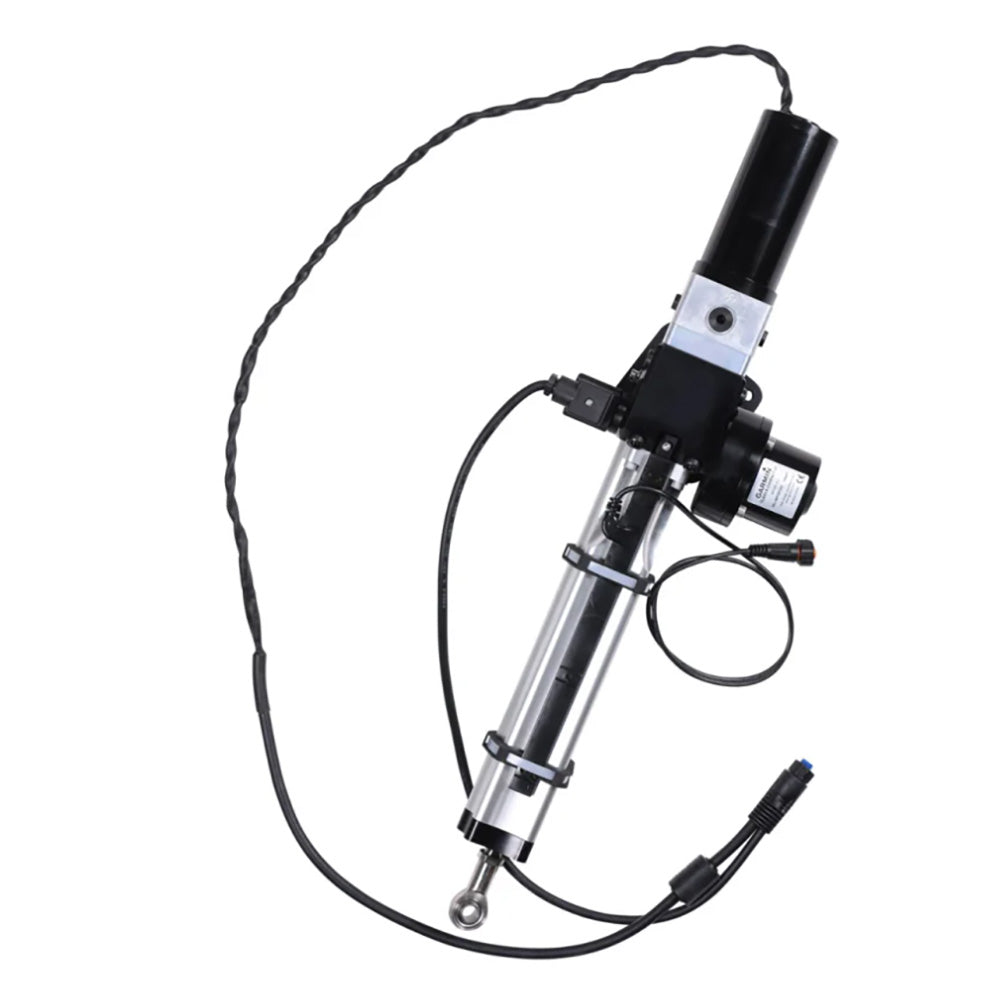

Garmin Class B Compact v2 Drive Unit [010-12029-01]

SKU: 103387
(0)
$2,699.99
Out of stock

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

Class B Compact v2 Drive Unit

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Specifications:

  • Dimensions (WxHxD, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
  • Drive unit type: Integrated hydraulic linear
  • Stroke length: 10" (254 mm)
  • Maximum thrust: 1,610 lbs (730 kg)
  • Supply voltage: 10V to 30 V (regulated to 12V by the ECU)
  • Average clutch current at 12V: 1 Amp
  • Average motor current at 12V: 2-4 Amps
  • Operating temperature: -15° C to 50° C

Specifications:

  • Steering Type: Hydraulic
  • Box Dimensions: 6"H x 11"W x 32"L WT: 23.7 lbs
  • UPC: 753759335816
