Garmin Airmar R109LHW 2kW 38-75kHz 150-250kHz Thru-Hull Transducer [010-12182-20]

Airmar R109LHW 2kW 38-75kHz & 150-250kHz Thru-Hull Transducer

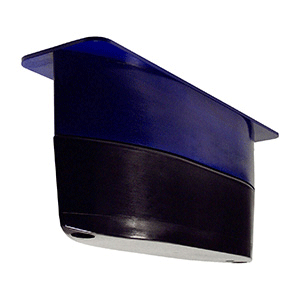

This plastic thru-hull mount transducer uses the low frequencies for deep water performance and high wide frequencies for shallow water performance.

A 2 kW in a slightly smaller package, this bare wire transducer has a depth of 8,000 feet; an operating frequency of 38 to 75 kHz and 150 to 250 kHz; a beamwidth of 9x23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Chirp: Low/High Wide
• Cable Length (Feet): 49'
• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Pins: Bare Wires
• Box Dimensions: 14"H x 17"W x 28"L WT: 35 lbs
• UPC: 753759123567
