Egis XD Flex 1 Triple Relay/VSR/LVD w/Knob - 6-Pin DTM Connector [8830-1111]

SKU: 114222
(0)
$396.70
Only 3 left
Low inventory - Hurry up!
Ask an expert!

Not sure it fits? Send us your part number and we'll check. Call 310‑726‑3339 or email us.

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

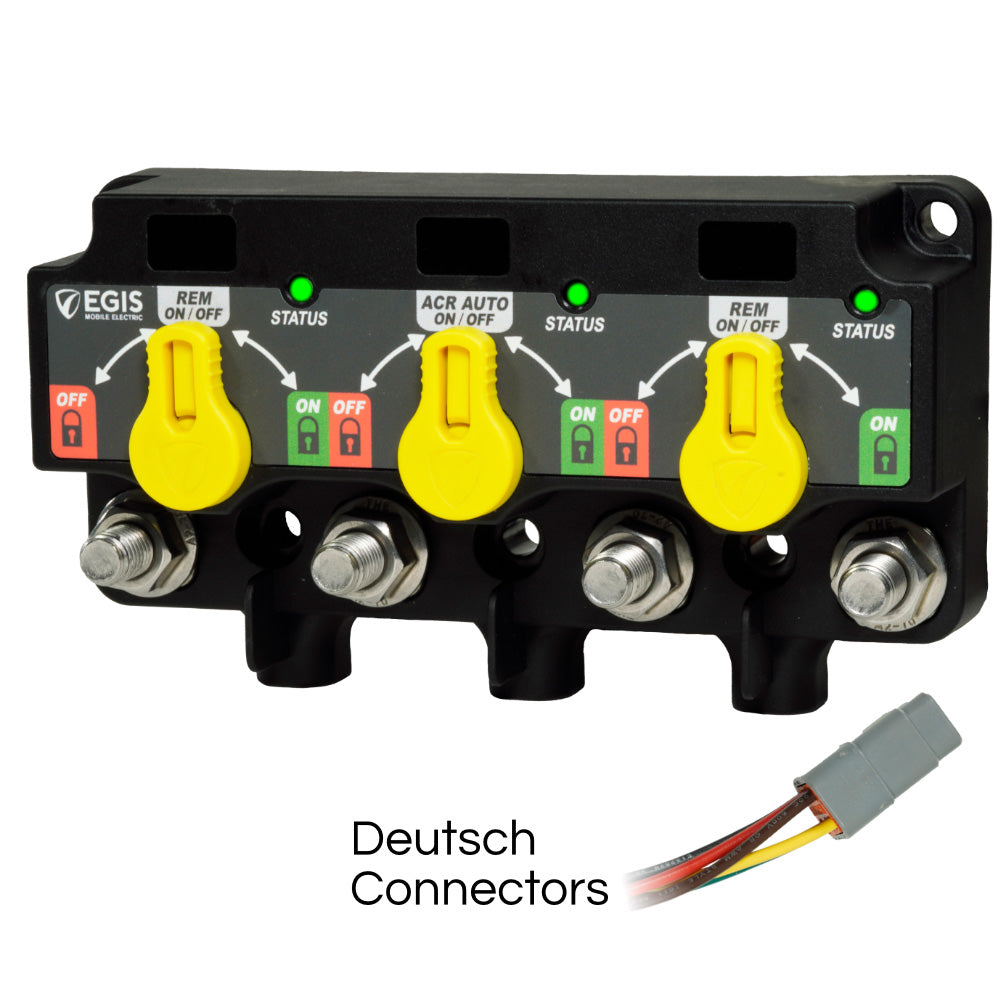

XD Flex 1 Triple Relay/VSR/LVD with Knob - 6-Pin DTM Connector

Features:

  • 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
  • Available With or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing
  • Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
  • Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
  • Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
  • Local and Remote LED Indicators for Each Relay
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Type: Electric
  • Box Dimensions: 3"H x 6"W x 8"L WT: 2.66 lbs
  • UPC: 850035199862
