Digital Antenna 758-MW-S 8' 8' 6dBi Gain Advanced Multi-Band Marine Antenna [758-MW-S]

SKU: 108679
(0)
$585.99
-2% $596.44 $585.99
Only 4 left
Low inventory - Hurry up!

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

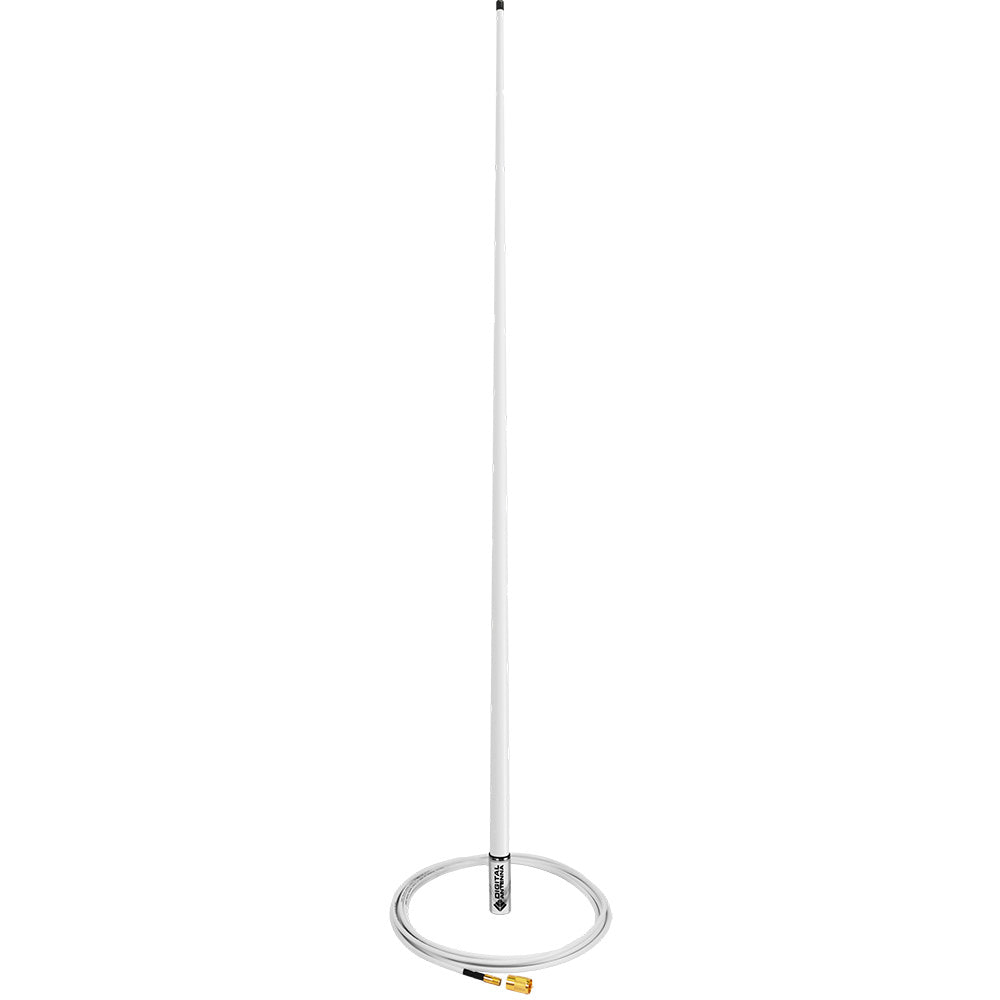

758-MW-S 8' 8' 6dBi Gain Advanced Multi-Band Marine Antenna

Digital Antenna's Model 758-MW-S is the first marine antenna designed for seamless multi-band communication, ensuring powerful signals across various frequency bands. Whether you're offshore, navigating busy harbors, or relying on emergency communication, this high-performance antenna delivers unmatched reliability.

Designed to withstand the rigors of offshore communication, the 758-MW-S sets a new standard in marine antenna technology, delivering unparalleled performance, longevity, and signal stability across critical frequency bands.

Features:

  • Seamless multi-band operation on VHF, UHF, and 800/900 MHz frequencies
  • 20' premium low-loss DA195 cable for maximum signal strength
  • Factory-installed mini-UHF connector with PL259 adapter for quick and secure connection to the radio
  • Marine-grade durability, featuring a 316 stainless steel ferrule for corrosion resistance
  • UV-stable polyurethane-coated rod protects against harsh marine conditions
  • 5-year manufacturer warranty, ensuring long-term reliability

Specifications:

  • Radiation Pattern Omni-Directional: Gain 6dBi
  • Frequencies: 134-176 MHz, 403-470 MHz, 450-512 MHz,851-870 MHz
  • Cable: 20’ Digital Antenna, exclusive low-loss DA195
  • Impedance: 50 ohms
  • Max Input Power: 50 watts
  • Exterior Finish: White polyurethane high gloss UV stable
  • Dimensions: 8’ length x 1” OD taper
  • Weight: 2.3 lbs.
  • RF Connector: Mini-UHF female with included PL259 adapter
  • Installation: 1”x14tpi female threaded base
  • Elements: Copper - Hand soldered
  • Polarization: Vertical
  • Wind Rating: >160KPH
  • Operating Temp: 30º F to +175º F
  • Attaches to 1" x 14 threaded base (not included)
  • Factory-installed mini-UHF Connector & PL259 adapter
  • Use with all DMR radios using VHF, UHF Band 1, UHF Band 2, 800/900 MHZ
  • Warranty: 5 Years

Applications:

  • Commercial
  • Recreational
  • Government Vessels

Quick Guide (pdf)
