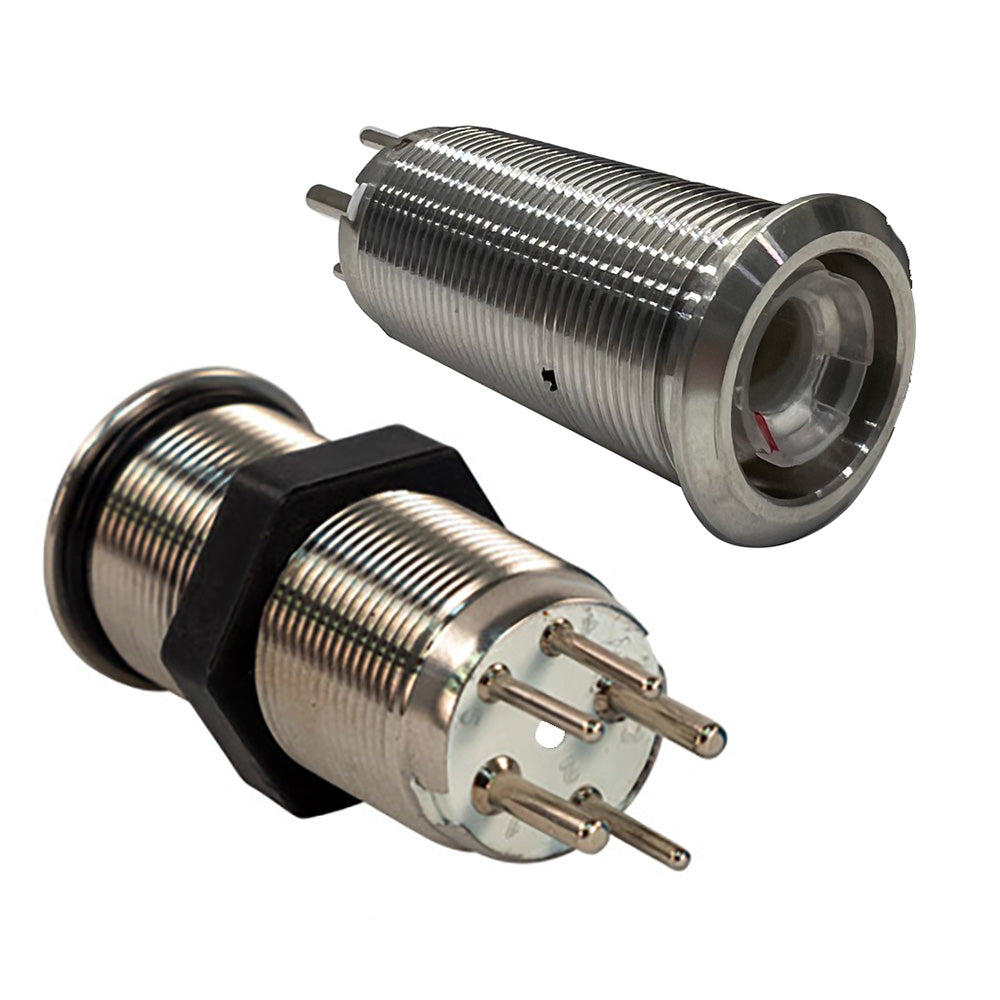

Bluewater 19mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only [9057-3114]

SKU: 101868
(0)
$48.00
In stock
Usually ships within 24 hours

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

19mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only

The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewater’s proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.

This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.

This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.

Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.

Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.

Specifications:

  • Switch Rating: 15A/12-24VDC
  • Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
  • Mechanical Life: 50,000 Cycles
  • Electrical Life: 10,000 Cycles
  • Dimensions: View Dimensional Drawings
  • Material: Nickel Plated Brass/ Stainless Steel
  • LED Color: Blue/Green/Red

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.

Specifications:

  • Action: ON-ON-OFF
  • Color: Blue/Green/Red
  • Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs
  • UPC: 810196330818

Quick Guide (pdf)
Brochure (pdf)
