Blue Sea 8665 Contura 3 Bilge Pump Control Panel [8665]

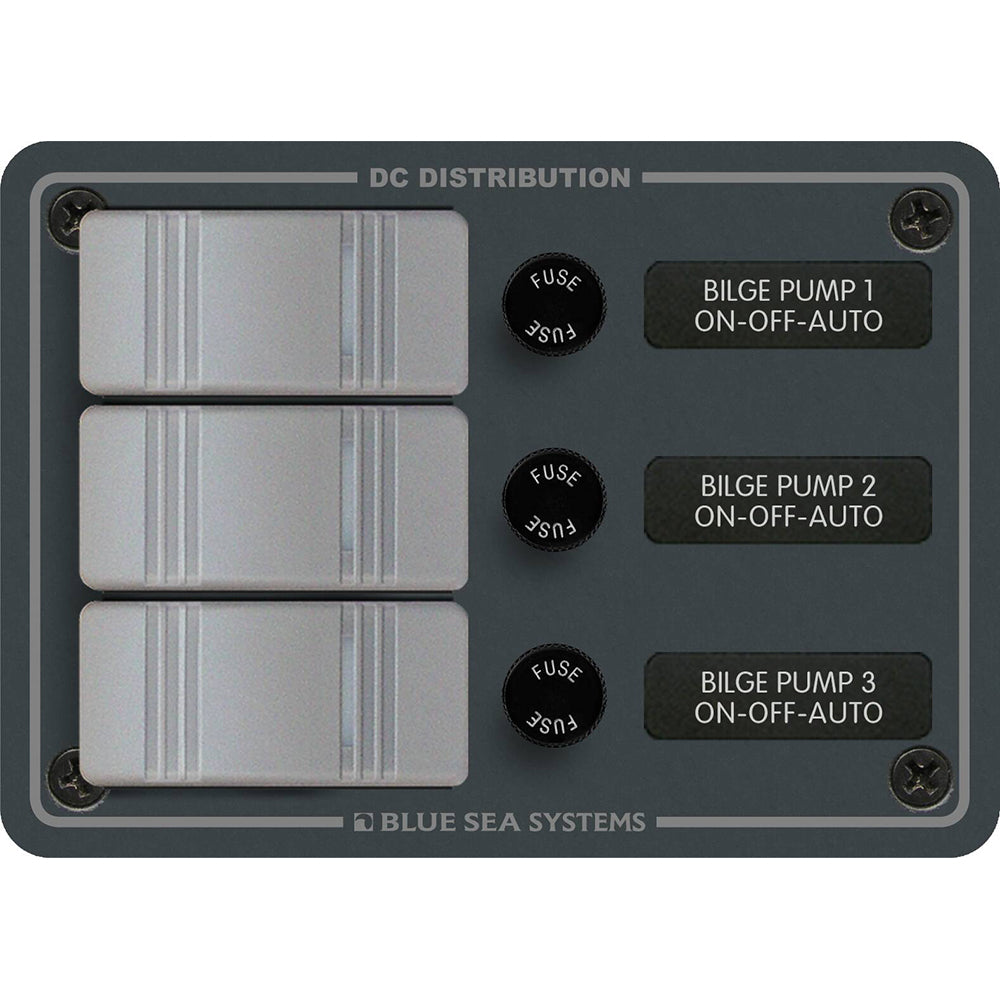

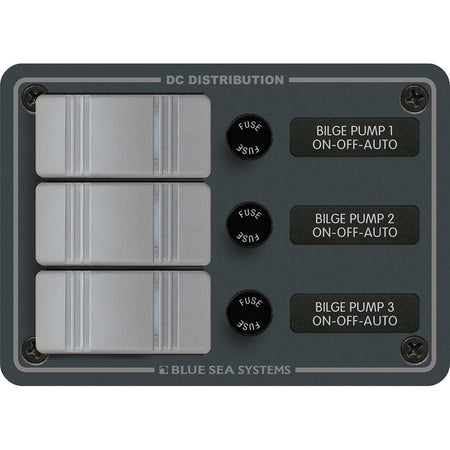

8665 Contura 3 Bilge Pump Control Panel

Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp

Features:

• Designed for 12 or 24V DC systems
•  ON - OFF - AUTO Contura Switch
• Watertight mounting gasket
• Fuse holders accept commonly available AGC and MDL glass fuses
• "ON” LED embedded in switch indicates the pump is running
• Completely wired and ready to install

Specifications:

• Weatherproof - Water Resistant
• No. of Bilge Pumps - three (3)
• Nominal Voltage - 12/24V
• Panel Cumulative Rating - 45A
• Switch Rating: 20A @ 12V DC / 15A @ 24V DC
• Dimensions (H x W x D) - 3.75" x 5.25" x 3"

In the Box:

• Panel Mount AGC/MDL Fuse Holder (P/N 5021) x three (3)
• Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x three (3)
• Black 60 Label Set (P/N 8214)

*Sold as an Individual

Specifications:

• Action: on - off - auto
• Color: Black/Grey
• Throw/Pole: SPDT
• Box Dimensions: 4"H x 7"W x 9"L WT: 0.65 lbs
• UPC: 632085086657
