Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position [5050]

SKU: 51809
(0)
$70.99
-14% $82.99 $70.99
In stock
Usually ships within 24 hours

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

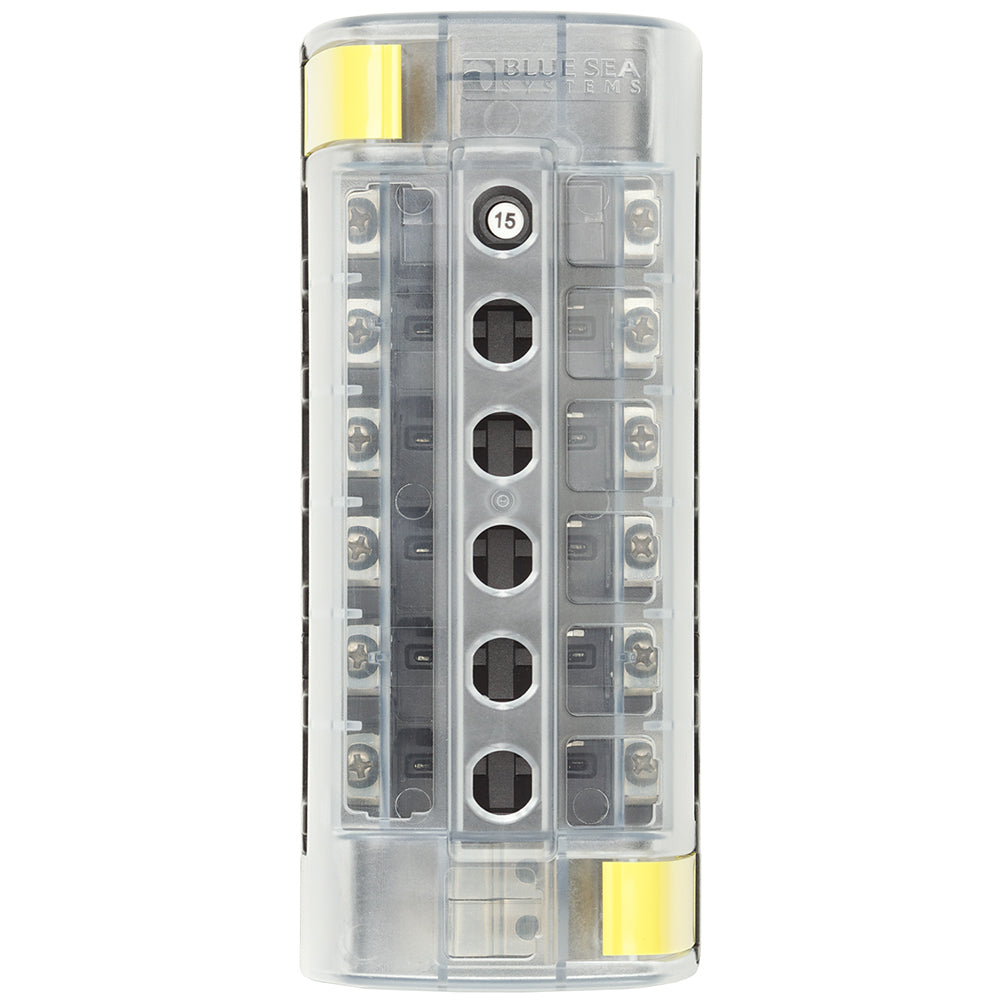

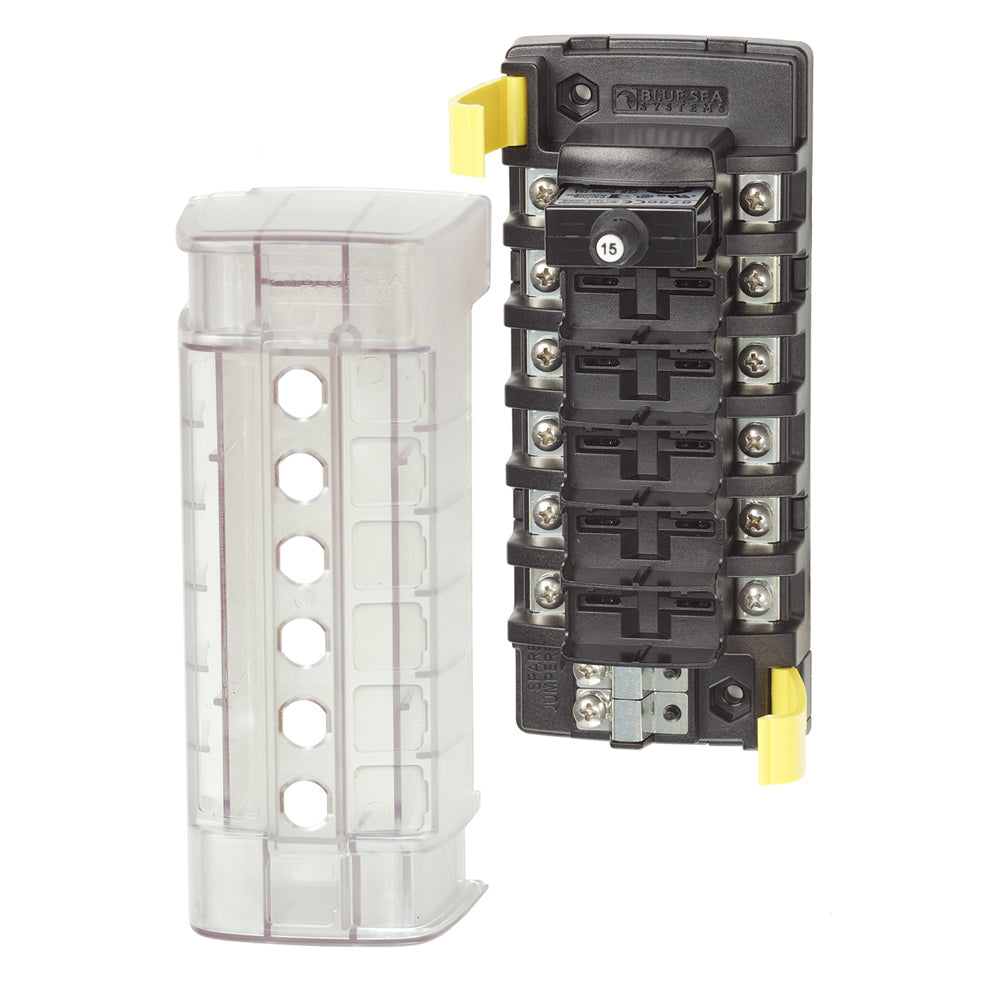

ST CLB Circuit Breaker Block - 6 Position

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 6
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 32/40a
  • Box Dimensions: 3"H x 5"W x 11"L WT: 0.8 lbs
  • UPC: 632085050504
